Chromoly Heim Joint Rod Ends, 3/4-16 LH Male

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Chromoly
Finish:
Chrome
Hole Diameter:
0.7500
Thread Pitch:
3/4"-16
Threads:
LH Male

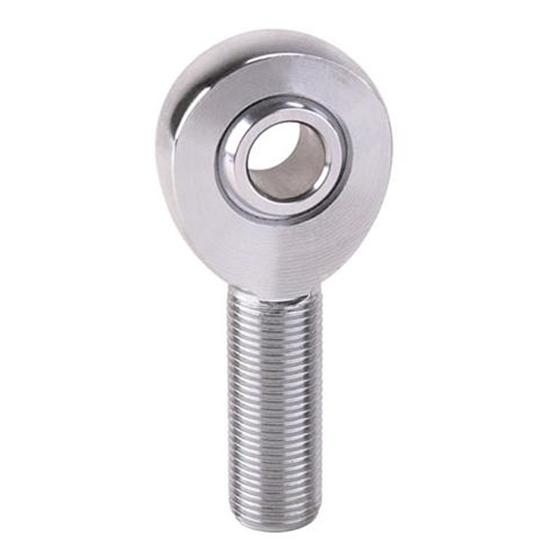

Chromoly Heim Joint Rod Ends, 3/4-16 LH Male
Chromoly Heim Joint Rod Ends, 3/4-16 LH Male

Click image to enlarge

Speeday Motors Logo
X
Chromoly Heim Joint Rod Ends, 3/4-16 LH Male

Details

Reviews

Q & A

What's in the Box

Heat treated, 4130 chromoly steel body with hard chrome, heat treated ball to support heavy shock loads. Injection molded Kevlar/Teflon® liner seals out dirt and debris.

  • Kevlar/Teflon® race reduces slop & eliminates binding
  • Provides smooth & precise movement of steering & suspension
  • The ultimate in strength & durability

Applications: Steering & suspension for racing & high horsepower applications.

Chromoly Rod End Chart (GIF)

Notes

Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply anti-seize compound to prevent galling of the threads.
