Chrome Tie Rod End, 11/16-18 LH

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Chrome
Thread Length:
2.10
Degree of Taper:
7 degree
Thread Pitch:
11/16"-18
Center Hole to End of Shank:
3.13
Threads:
LH Male
Garage Sale:
No
Notes
1-1/4" from center of threaded shaft to the bottom of the taper.

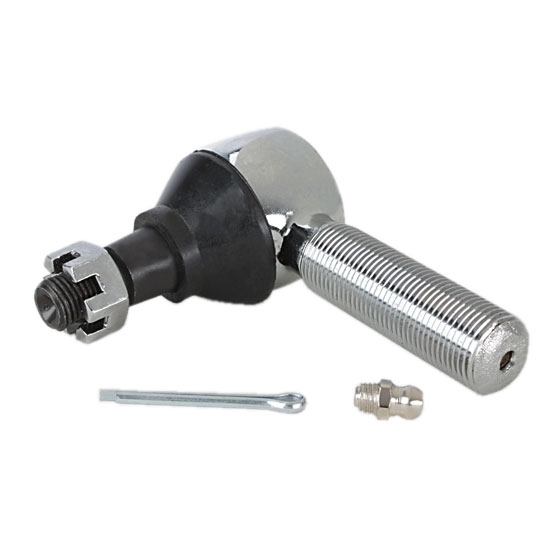

Chrome Tie Rod End, 11/16-18 LH

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These tie rod ends are just like our standard Ford 7° taper tie rod ends except they are made of beautifully chrome plated steel. They have 11/16"-18 threads and include hardware. Make sure to use anti-seize on the threads.

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

What is the diameter of the tapered stud?

KSousa
Jasper, GA
November 03, 2014

What is the diameter of the tapered stud?

Answers

November 04, 2014
EricM
The tapered stud measures .62" at the large end and .57" at the small end.
