For cross steering when using 1949-54 Chevy spindles. These flat plate arms have 5/8" holes for spherical rod end use only. Note: Uses a 45.5" eye to eye tie rod link when used with a 48" wide axle / Chevy spindle. Steering Arm Ends Guide (GIF) Cross Steering Guide (GIF)
For cross steering when using 1937-48 Ford spindles. These have 5/8" hole for spherical rod end use only. Note: Uses a 47" eye to eye tie rod link when used with a 48" wide axle / Ford spindle. Steering Arm Ends Guide (GIF) Cross Steering Guide (GIF)

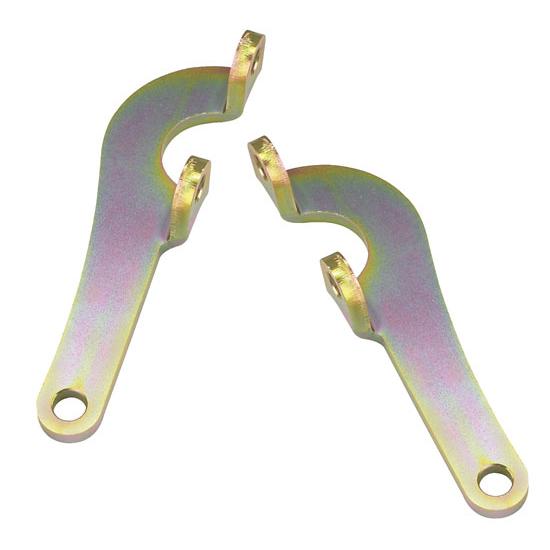

Fits 1937-48 Ford style spindles. The arms attach with bolts through the lower 2 backing-plate-mounting holes on spindle. Ford arms use a 48" eye to eye tie rod link when used with a 48" wide axle / Ford spindle. Steering Arm Ends Guide (GIF) Parallel Steering Set-Up Guide (GIF)
These 1937-1948 Ford lower tie rod steering arms are sold in pairs. Arms should only be used with a straight axle application and NOT a dropped tube axle. They will not clear a dropped axle. Has 3-3/8" eye-to-eye centers on mount bolt holes. Steering Arm Ends Guide (GIF) Parallel Steering Set-Up Guide (GIF)
Perfect for that traditional steering car. 6-1/2" long and drilled for a 5/8" rod end. C enter to center measurement of the mounting holes is 3.00". These have .475" mounting holes. NOTE: Upper steering arms allow the attachment of a drag link to the LH (driver's side) spindle. The arms attach with bolts through the upper 2 backing-plate-mounting holes on spindle. Steering Arm Ends Guide (GIF) Parallel Steering Set-Up Guide (GIF)
These 1937-1948 Ford lower tie rod steering arms are sold in pairs. Arms should only be used with a straight axle application and NOT a dropped tube axle. They will not clear a dropped axle. Has 3-3/8" eye-to-eye centers on mount bolt holes.Steering Arm Ends Guide (GIF)Parallel Steering Set-Up Guide (GIF)
Fits 1937-48 Ford style spindles. The arms attach with bolts through the lower 2 backing-plate-mounting holes on spindle.Ford arms use a 48" eye to eye tie rod link when used with a 48" wide axle /Ford spindle.Steering Arm Ends Guide (GIF)Parallel Steering Set-Up Guide (GIF)
For 1949-54 Chevy passenger car spindles. The arms attach with bolts through the lower 2 backing plate mounting holes (3-1/8" center-to-center) on spindle. The distance between the mounting holes to the center of the tie rod hole is 6 inches. Note: Chevy arms use a 46" eye to eye tie rod link when used with a 48" wide axle / Chevy spindle.Steering Arm Ends Guide (GIF)Parallel Steering Set-Up Guide (GIF)
For cross steering when using 1949-54 Chevy spindles. These flat plate arms have 5/8" holes for spherical rod end use only. Note: Uses a 45.5" eye to eye tie rod link when used with a 48" wide axle / Chevy spindle.Steering Arm Ends Guide (GIF)Cross Steering Guide (GIF)
For cross steering when using 1937-48 Ford spindles. These have 5/8" hole for spherical rod end use only. Note: Uses a 47" eye to eye tie rod link when used with a 48" wide axle / Ford spindle. Steering Arm Ends Guide (GIF) Cross Steering Guide (GIF) These steering arms are garage sale priced because they have been test fit and returned. NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS
For cross steering when using 1937-48 Ford spindles. These have 5/8" hole for spherical rod end use only.Note:Uses a 47" eye to eye tie rod link when used with a 48" wide axle /Ford spindle.Steering Arm Ends Guide (GIF)Cross Steering Guide (GIF)
For 1949-54 Chevy passenger car spindles. The arms attach with bolts through the lower 2 backing plate mounting holes (3-1/8" center-to-center) on spindle. The distance between the mounting holes to the center of the tie rod hole is 6 inches. Note: Chevy arms use a 46" eye to eye tie rod link when used with a 48" wide axle / Chevy spindle. Steering Arm Ends Guide (GIF) Parallel Steering Set-Up Guide (GIF)
For 1949-54 Chevy passenger car spindles. The arms attach with bolts through the lower 2 backing plate mounting holes (3-1/8" center-to-center) on spindle. The distance between the mounting holes to the center of the tie rod hole is 6 inches. Note: Chevy arms use a 46" eye to eye tie rod link when used with a 48" wide axle / Chevy spindle. Steering Arm Ends Guide (GIF) Parallel Steering Set-Up Guide (GIF) These arms are garage sale priced because they have some corrosion coming through the finish in the ...
Perfect for that traditional steering car. 6-1/2" long anddrilled for a 5/8" rod end. Center to center measurement of the mounting holes is 3.00". These have .475" mounting holes.NOTE: Upper steering arms allow the attachment of a drag link to the LH (driver's side) spindle. The arms attach with bolts through the upper 2 backing-plate-mounting holes on spindle.Steering Arm Ends Guide (GIF)Parallel Steering Set-Up Guide (GIF)
Provides clearance for 90° grease zerk at upper kingpin boss of stock Ford spindles3-3/8" spindle mount centersFits '37-'48 Ford applicationsTapered end accepts 11/16" tie rod end6-1/4" long from center of hole to spindle mount surfaceSteering Arm Ends Guide (GIF)Parallel Steering Set-Up Guide (GIF)
Provides clearance for 90° grease zerk at upper kingpin boss of stock Ford spindles3-3/8" spindle mount centersFits '37-'48 Ford applications5/8" end accepts spherical rod end6-1/4" long from center of hole to spindle mount surfaceSteering Arm Ends Guide (GIF)Parallel Steering Set-Up Guide (GIF)
Flame cut steel upper steering arm for'37-'48Ford spindles (with 3-3/8" mount centers). This design is available in6-1/4" or 7-3/4" lengths. Thelonger 7-3/4" arms permit a tighter left turn when using large diameter front tires or front wheels with a deep reverse and it also slows the steering rate for greater control. Tapered end accepts 11/16" tie rod ends. NOTE: Upper steering arms allow the attachment of a drag link to the LH (driver's side) spindle. The arms attach with bolts through the upper 2 backing-plate-mounting holes on spindle.Steering Arm Ends ...
Flame cut steel upper steering arm for '37-'48 Ford spindles (with 3-3/8" mount centers). This design is available in 6-1/4" or 7-3/4" lengths. The longer 7-3/4" arms permit a tighter left turn when using large diameter front tires or front wheels with a deep reverse, and it also slows the steering rate for greater control. Tapered end accepts 11/16" tie rod ends. NOTE: Upper steering arms allow the attachment of a drag link to the LH (driver's side) spindle. The arms attach with bolts through the upper 2 backing-plate-mounting holes on spindle. Steering Arm ...

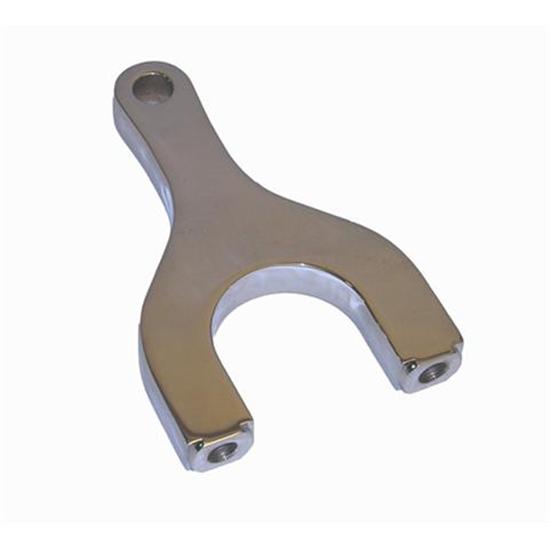

Early Ford flame cut design are 6-1/4". Upper steering arms allow the attachment of a drag link to the LH (driver's side) spindle. The arms attach with bolts through the upper 2 backing-plate-mounting holes on spindle. These chrome arms are designed to have a 5/8" bolt run through the arm. For 1937-48 Ford spindles. Clearance item!! NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS
Flame cut steel upper steering arm for '37-'48 Ford spindles (with 3-3/8" mount centers). This design is available in 6-1/4" or 7-3/4" lengths. The longer 7-3/4" arms permit a tighter left turn when using large diameter front tires or front wheels with a deep reverse, and it also slows the steering rate for greater control. 5/8" end accepts spherical rod ends. NOTE: Upper steering arms allow the attachment of a drag link to the LH (driver's side) spindle. The arms attach with bolts through the upper 2 backing-plate-mounting holes on spindle. Steering Arm Ends Guide (GIF) ...
Provides clearance for 90° grease zerk at upper kingpin boss of stock Ford spindles 3-3/8" spindle mount centers Fits '37-'48 Ford applications Tapered end accepts 11/16" tie rod end 6-1/4" long from center of hole to spindle mount surface Steering Arm Ends Guide (GIF) Parallel Steering Set-Up Guide (GIF)
Provides clearance for 90° grease zerk at upper kingpin boss of stock Ford spindles 3-3/8" spindle mount centers Fits '37-'48 Ford applications 5/8" end accepts spherical rod end 6-1/4" long from center of hole to spindle mount surface Steering Arm Ends Guide (GIF) Parallel Steering Set-Up Guide (GIF)
