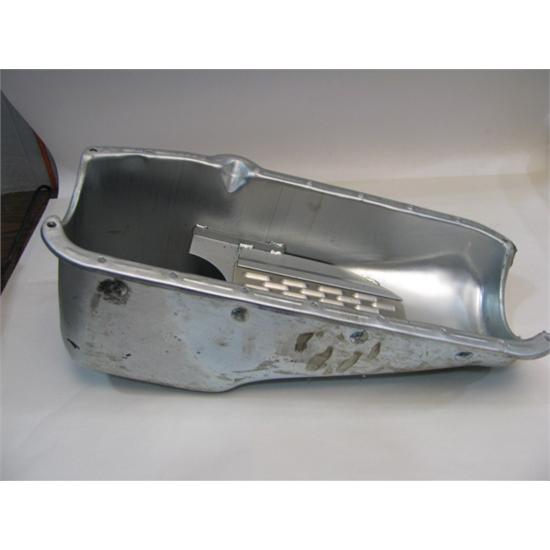

These stock appearing street oil pans feature a 7-1/2" deep rear sump and have one 6" trapdoor, one crank scraper, and a removable horsepower saving windage tray. The oil capacity is 5 quarts with a filter attached. This oil pan is garage sale priced because it has been installed and returned. NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS
This stock appearing street oil pan features a 7-1/2" deep rear sump and has one 6" trapdoor, one crank scraper, and a removable horsepower saving windage tray. The oil capacity is 5 quarts with a filter attached.
If you have ever tried to put a B/B chevy in a Tri-Five Chevy or Chevy II, you know there just isn't much room. This pan was designed to make the job a little easier. This pan has a 7 quart capacity (w/o filter) and accepts up to a 4-1/4" stroke with steel rods. Notched rear sump clears steering linkage Accepts strokes up to 4.250" with steel rods, 4.090" with aluminum rods Compatible with most starter/flywheel combinations Fits Mark IV style 396-454 (except Gen V and Gen VI) Big Block ...
Now you can have a Moroso oil pan for an affordable price. It features trap doors for oil control, removable windage tray, built-in crank scraper and accepts up to 3.800" stroke with steel rods. It's 7-1/2" deep, 11" wide and fits 78-87 Metric chassis and Camaro stubs. Fits small block Chevy. Cost-effective Circle Track oil pan with Moroso quality and performance Trap door baffles for oil control Removable louvered windage tray Built–in crankscraper Accepts 3.80" stroke with steel rods Accepts most starter and flywheel combinations Will not fit engine blocks ...
Speedway's claimer oil pan is our best-selling circle-track pan. Low cost, high quality pan designed for the budget racer. Six quart capacity, 7-1/4" deep with two gates for oil flow control. Fits with stock or mini starter. S/B Chevy. Will not fit rear steer cars unless the engine has been moved back. 5-3/4" center-to-center of rear bolts 7-1/4" deep at the deep end 4-1/2" deep at the shallow end Expanded well measures 10-5/8" wide, 10" long, 2-5/8" deep Vertical half moon notch in the rear near the drain plug is ...
Save money with our Claimer Pan Combos! For Small Block Chevy 1980-85 (passenger side dipstick). Will not fit rear steer cars unless the engine has been moved back. Works with stock or mini starters.Kits include:Claimer Oil Pan (6 quart 7-1/4" deep)Oil Pump Pickup 5/8" diameterStock Volume Pump or High Volume Pump (both 55-65 psi preset)
Save money with our Claimer Pan Combos! For Small Block Chevy 1955-79 (driver side dipstick). Will not fit rear steer cars unless the engine has been moved back. Works with stock or mini starters.Kits include:Claimer Oil Pan (6 quart 7-1/4" deep)Oil Pump Pickup 5/8" diameterStock Volume Pump or High Volume Pump (both 55-65 psi preset)
If you have ever tried to put a B/B chevy in a Tri-Five Chevy or Chevy II you know there just isn't much room. This pan was designed to make the job a little easier. This pan has a 7 quart capacity (w/o filter) and accepts up to a 4-1/4" stroke with steel rods.Notched rear sump clears steering linkageAccepts strokes up to 4.250" with steel rods 4.090" with aluminum rodsCompatible with most starter/flywheel combinations Fits Mark IV style 396-454 (except Gen V and Gen VI) Big Block Chevy V-8s. For ...
Speedway's claimer oil pan is our best-selling circle-track pan. Low cost, high quality pan designed for the budget racer. Six quart capacity, 7-1/4" deep with two gates for oil flow control. Fits with stock or mini starter. S/B Chevy. Will not fit rear steer cars unless the engine has been moved back. 5-13/16" center-to-center of rear bolt holes Has 1" NPT bung pre-welded with plug. Meets 2011 IMCA rules. Instructions (PDF)
Speedway's claimer oil pan is our best-selling circle-track pan. Low cost high quality pan designed for the budget racer. Six quart capacity 7-1/4" deep with two gates for oil flow control. Fits with stock or mini starter. S/B Chevy. Will not fit rear steer cars unless the engine has been moved back.5-3/4" center-to-center of rear bolts7-1/4" deep at the deep end4-1/2" deep at the shallow endExpanded well measures 10-5/8" wide 10" long 2-5/8" deepVertical half moon notch in the rear near the drain plug is 1" from the rear corner ...
Fits Small Block Chevy. Polished aluminum oil pan ribbed for beauty strength and heat dissipation.This pan uses apassenger side dipstick and a one-piece rear main seal crankshaft. Includesdrain plug and mounting bolts.They are 1 piece cast aluminum construction.
Speedway's claimer oil pan is our best-selling circle-track pan. Low cost high quality pan designed for the budget racer. Six quart capacity 7-1/4" deep with two gates for oil flow control. Fits with stock or mini starter. S/B Chevy. Will not fit rear steer cars unless the engine has been moved back. 5-13/16" center-to-center of rear bolt holesHas 1" NPT bung pre-welded with plug. Meets 2011 IMCA rules. Instructions (PDF)
Now you can have a Moroso oil pan for an affordable price. It features trap doors for oil control removable windage tray built-in crank scraper and accepts up to 3.800" stroke with steel rods. It's 7-1/2" deep 11" wide and fits 78-87 Metric chassis and Camaro stubs. Fits small block Chevy.Cost-effective Circle Track oil pan with Moroso quality and performance Trap door baffles for oil control Removable louvered windage tray Built–in crankscraper Accepts 3.80" stroke with steel rods Accepts most starter and flywheel combinations Will not fit engine blocks with ...
