Piston Ring Grooves: 1/16, 1/16, 3/16 These pistons are garage sale priced because they have been discontinued from our current product line. NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS
Off the shelf custom pistons for the small block Chevy. Light weight aluminum. Left and right domed configuration Radiused domes & valve reliefs 13:1 based on 67cc heads provision for angle milled heads 2.50" Barstock wristpins with double spirolox Wrist pin oilers Hollow dome forgings where needed .030 Oversized Storke: 3.480" Rod length: 6" CID: 355 Piston Weight: 469g This set of pistons is garage sale priced because they discontinued. NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS
Formerly KB Forged Pistons. Starting with 2618 alloy heat treated to high strength T-6 specifications, these give you the best value for your money. Exclusive V-rib adds strength without adding weight but allows maximum cooling. High ductility 2618 alloy Dual forced pin oiling on most applications Lateral gas porting on higher compression ratios Fully machined with deep valve pockets Second land accumulator grooves Top land mini groove technology Diamond finished skirts Triple wound spiral locks For Chevy 421 c.i. (4.125" bore x 3.875" stroke). Use Style E rings (1.5mm, 1.5mm, 3.0mm). ...
These Keith BlackClaimer pistons(also known as economy pistons) feature coated skirts wrist pin lockrings and T-5 hypereutectic construction. Can be used with either press fit or floating wrist pins (lockrings included).Set of 8 for Chevy 377 c.i. (4.125" bore x 3.48" stroke x 5.7" rod) and Chevy 400 c.i. (4.125" bore x 3.75" stroke x 5.565"). Does not include piston ring set. Use 5/64" 5/64" 3/16" piston rings (Ring Style A). KB Claimer Piston Chart(GIF)Ring Style Chart (GIF)
The Mahle PowerPak pistons are a race proven lightweight forged design that are complete with rings, wrist pins and locks. They are also completely phosphate coated plus feature an anti-friction Grafal skirt coating. PowerPak pistons are made from 4032 aluminum alloy to allow for tighter cylinder to wall clearances, and improved temperature stability. 1.5mm, 1.5mm, 3.0mm file fit performance ring set is included . For 350 c.i. S/B Chevy (4.000" bore x 3.48" stroke). Comp Height 6.0" Rod: 1.250 Pin Diameter: 0.927 Clearance Guide *Meas. = 0.500 Min = 0.0025 ...
The Mahle PowerPak pistons are a race proven lightweight forged design that are complete with rings, wrist pins and locks. They are also completely phosphate coated plus feature an anti-friction Grafal skirt coating. PowerPak pistons are made from 4032 aluminum alloy to allow for tighter cylinder to wall clearances, and improved temperature stability. 1.5mm, 1.5mm, 3.0mm file fit performance ring set is included . For 400 c.i. S/B Chevy (4.125" bore x 3.75" stroke). Comp Height 5.7" Rod: 1.425 Pin Diameter: 0.927 Clearance Guide *Meas. = 0.500 Min = 0.0025 ...

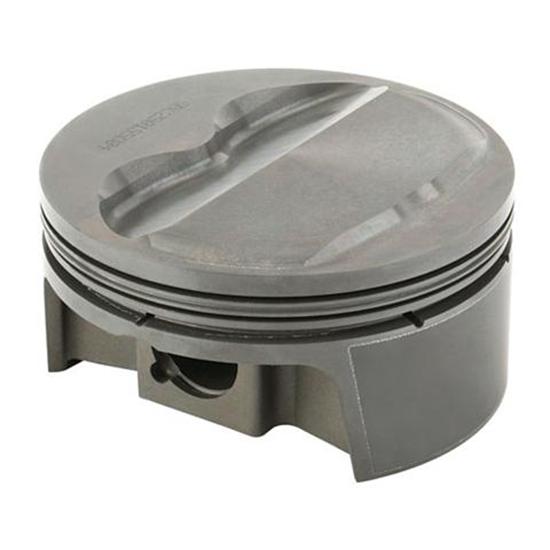

The Mahle PowerPak pistons are a race proven lightweight forged design that are complete with rings, wrist pins and locks. They are also completely phosphate coated plus feature an anti-friction Grafal skirt coating. PowerPak pistons are made from 4032 aluminum alloy to allow for tighter cylinder to wall clearances, and improved temperature stability. 1.5mm, 1.5mm, 3.0mm file fit performance ring set is included . For 383 c.i. S/B Chevy (4.000" bore x 3.75" stroke). Choose oversize diameter needed. Mahle's phosphate coating provides the grey appearance to the piston. This dry ...
Formerly KB Forged Pistons. Starting with 2618 alloy heat treated to high strength T-6 specifications these give you the best value for your money. Exclusive V-rib adds strength without adding weight but allows maximum cooling. High ductility 2618 alloyDual forced pin oiling on most applicationsLateral gas porting on higher compression ratiosFully machined with deep valve pocketsSecond land accumulator groovesTop land mini groove technologyDiamond finished skirtsTriple wound spiral locksFor Chevy 434 c.i. (4.125" bore x 4.00" stroke). Use Style C rings (1/16" 1/16" 3/16").Ring Style ...
Formerly KB Forged Pistons. Starting with 2618 alloy heat treated to high strength T-6 specifications these give you the best value for your money. Exclusive V-rib adds strength without adding weight but allows maximum cooling. High ductility 2618 alloyDual forced pin oiling on most applicationsLateral gas porting on higher compression ratiosFully machined with deep valve pocketsSecond land accumulator groovesTop land mini groove technologyDiamond finished skirtsTriple wound spiral locksFor Chevy 434 c.i. (4.125" bore x 4.00" stroke). Can be used with Vortec cylinder heads.Use Style C ...
Formerly KB Forged Pistons. Starting with 2618 alloy heat treated to high strength T-6 specifications, these give you the best value for your money. Exclusive V-rib adds strength without adding weight but allows maximum cooling. For Chevy 395 c.i. (4.000" bore x 3.875" stroke). Use Style E rings (1.5mm, 1.5mm, 3.0mm). High ductility 2618 alloy Dual forced pin oiling on most applications Lateral gas porting on higher compression ratios Fully machined with deep valve pockets Second land accumulator grooves Top land mini groove technology Diamond finished skirts Triple wound spiral locks ...
Formerly KB Forged Pistons. Starting with 2618 alloy heat treated to high strength T-6 specifications, these give you the best value for your money. Exclusive V-rib adds strength without adding weight but allows maximum cooling. For Chevy 421 c.i. (4.125" bore x 3.875" stroke). Use Style E rings (1.5mm, 1.5mm, 3.0mm). High ductility 2618 alloy Dual forced pin oiling on most applications Lateral gas porting on higher compression ratios Fully machined with deep valve pockets Second land accumulator grooves Top land mini groove technology Diamond finished skirts Triple wound spiral locks ...
The Mahle PowerPak pistons are a race proven lightweight forged design that are complete with rings, wrist pins and locks. They are also completely phosphate coated plus feature an anti-friction Grafal skirt coating. PowerPak pistons are made from 4032 aluminum alloy to allow for tighter cylinder to wall clearances, and improved temperature stability. 1.5mm, 1.5mm, 3.0mm file fit performance ring set is included . For 350 c.i. S/B Chevy (4.000" bore x 3.48" stroke). Comp Height 5.7" Rod: 1.550 Pin Diameter: 0.927 Clearance Guide *Meas. = 0.500 Min = 0.0025 ...
The Mahle PowerPak pistons are a race proven lightweight forged design that are complete with rings, wrist pins and locks. They are also completely phosphate coated plus feature an anti-friction Grafal skirt coating. PowerPak pistons are made from 4032 aluminum alloy to allow for tighter cylinder to wall clearances, and improved temperature stability. 1.5mm, 1.5mm, 3.0mm file fit performance ring set is included . For 434 c.i. S/B Chevy (4.125" bore x 4.00" stroke). Choose standard or oversize diameter needed. Comp Height: 1.000 (includes oil support rails) Pin Diameter: 0.927 ...
Formerly KB Forged Pistons. Starting with 2618 alloy heat treated to high strength T-6 specifications, these give you the best value for your money. Exclusive V-rib adds strength without adding weight but allows maximum cooling. High ductility 2618 alloy Dual forced pin oiling on most applications Lateral gas porting on higher compression ratios Fully machined with deep valve pockets Second land accumulator grooves Top land mini groove technology Diamond finished skirts Triple wound spiral locks For Chevy 434 c.i. (4.125" bore x 4.00" stroke). Use Style C rings (1/16", 1/16", ...
Formerly KB Forged Pistons. Starting with 2618 alloy heat treated to high strength T-6 specifications, these give you the best value for your money. Exclusive V-rib adds strength without adding weight but allows maximum cooling. High ductility 2618 alloy Dual forced pin oiling on most applications Lateral gas porting on higher compression ratios Fully machined with deep valve pockets Second land accumulator grooves Top land mini groove technology Diamond finished skirts Triple wound spiral locks For Chevy 434 c.i. (4.125" bore x 4.00" stroke). Can be used with Vortec cylinder ...
Mahle PowerPak pistons are a race proven lightweight forged design that are complete with rings, wrist pins, and locks. They are also completely phosphate coated plus feature an anti-friction Grafal skirt coating. PowerPak pistons are made from 4032 aluminum alloy to allow for tighter cylinder to wall clearances, and improved temperature stability. Forged piston for performance applications Fully-machined crown Grafal anti-Friction coating on skirts Phosphate-coated to reduce micro-welding and pin galling Pin bores binished on CNC boring equipment Deburred High strength, light weight ...
These Keith Black Claimer pistons (also known as economy pistons) feature coated skirts, wrist pin lockrings and T-5 hypereutectic construction. Can be used with either press fit or floating wrist pins (lockrings included). Set of 8 for Chevy 377 c.i. (4.125" bore x 3.48" stroke x 5.7" rod) and Chevy 400 c.i. (4.125" bore x 3.75" stroke x 5.565"). Does not include piston ring set. Use 5/64", 5/64", 3/16" piston rings ( Ring Style A ). KB Claimer Piston Chart (GIF) Ring Style Chart (GIF)
The Mahle PowerPak pistons are a race proven lightweight forged design that are complete with rings, wrist pins and locks. They are also completely phosphate coated plus feature an anti-friction Grafal skirt coating. PowerPak pistons are made from 4032 aluminum alloy to allow for tighter cylinder to wall clearances, and improved temperature stability. Forged piston for performance applications Lightweight slipper kirt forgings Fully-machined crown Grafal anti-Friction coating on skirts Phosphate-coated to reduce micro-welding and pin galling Pin bores finished on CNC boring equipment ...
The Mahle PowerPak pistons are a race proven lightweight forged design that are complete with rings, wrist pins and locks. They are also completely phosphate coated plus feature an anti-friction Grafal skirt coating. PowerPak pistons are made from 4032 aluminum alloy to allow for tighter cylinder to wall clearances, and improved temperature stability. 1.5mm, 1.5mm, 3.0mm file fit performance ring set is included . For 400 c.i. S/B Chevy (4.125" bore x 3.75" stroke). Comp Height 6.0" Rod: 1.250 Pin Diameter: 0.927 Clearance Guide *Meas. = 0.500 Min = 0.0025 ...
