Chevy Leaf Spring Bushing for Rear Eye

Specs
Overall Length:
1.930
Color:
Black
Sold in Quantity:
Pair
Diameter Small End :
1.625
Diameter Big End:
2.00
Inside Diameter:
.5625
Notes
1 pair will do 1 spring eye/frame mount. Fits Camaro, Firebird and Nova springs.

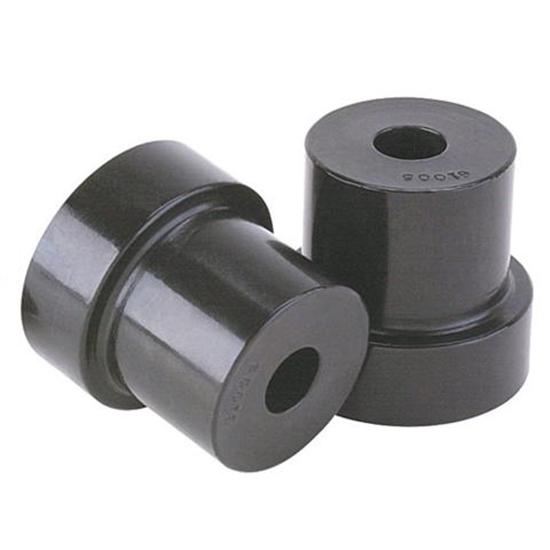

Chevy Leaf Spring Bushing for Rear Eye

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

Polyurethane bushings for leaf spring rear eye and hanger. Fits Camaro, Firebird, and Nova springs. One pair of these leaf spring bushings does one spring eye or hanger.

Notes

  • 0.700" length on large end
  • 1.330" length on small end

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

kachow
Verified Purchaser
RC south dakota
Product Rating

quality product

February 28, 2011
right size for the application
Pros:
  • Improves Launching
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 2 answers

What is the under head dimension(inner end of bushing to backside of head), head outside diameter, and head thickness of the bushing?

1 answers
April 19, 2011

What is the under head dimension(inner end of bushing to backside of head), head outside diameter, and head thickness of the bushing?

Answers

April 21, 2011
Nick
Here are the dimensions for you: 1.600" OD on the small end 2.000" OD on the large end 1.930" Over all length 0.700" Length on large end 1.330" Length on small end 0.550" Hole Size

What is the ID of the shaft hole and what is the OD of the bushing? Thanks

1 answers
February 28, 2011

What is the ID of the shaft hole and what is the OD of the bushing? Thanks

Answers

March 03, 2011
Tech Support
The I.D. of the the shaft hole is 9/16" and the O.D. is 1-5/8".
Page 1 of 1
