Chevy Front Axle Steering & Brake Kit, 46 Inch Axle

SAME DAY SHIPPING! Order within the next 9 hours 12 minutes and receive same day shipping

Free Shipping Free Shipping
Chevy Front Axle Steering & Brake Kit, 46 Inch Axle
Chevy Front Axle Steering & Brake Kit, 46 Inch Axle
Product Video
Chevy Front Axle Steering & Brake Kit, 46 Inch Axle

Click image to enlarge

Watch the video below to learn more about Speedway Motors street rod spindles.

Watch the video below to learn how to correctly measure your wheel bolt pattern.

Details

Reviews

Q & A

What's in the Box

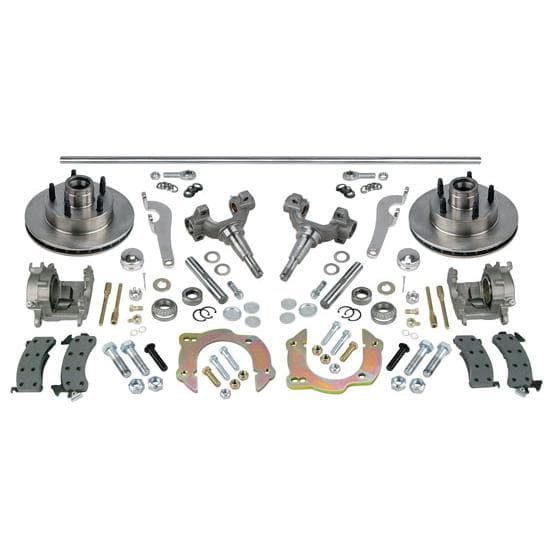

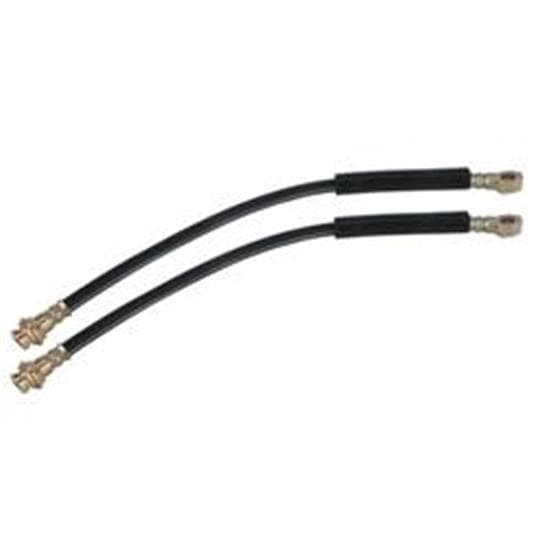

Speedway's exclusive steering & brake kits save you time and money by combining all necessary parts into one part number. Each kit includes brake kit, spindles, dust caps, Rubber Brake Lines spindle nuts, AN3 caliper fittings, kingpins, flat steering arms, tie rod assembly and hardware.

For 46" kingpin-to-kingpin axles. Traditional steering arm for left front wheel NOT included with Traditional steering kit.

  • Speedway 1949-1954 Chevy Spindles
    • One piece forged 4140 steel
    • Modeled after the 49-54 Chevy passenger car spindles
    • Steering arms may be mounted to the top or bottom of the spindle
    • Standard king pins fit to spindles

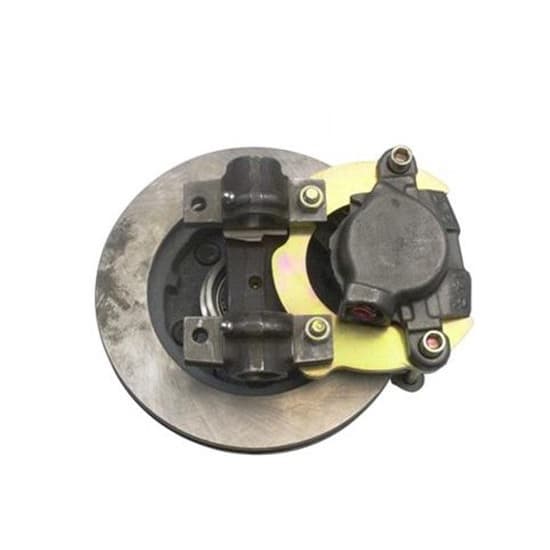

  • Speedway 9-1/4" Brake Kit
    • 9-1/4" Mustang II rotors
    • 5 x 4-1/2" or 5 x 4-3/4" bolt patterns
    • Wheel studs - 1/2" Fine (4-1/2" BP), 7/16" Fine (4-3/4" BP)
    • Hub flange (hat) diameter - 5.74"
    • 1/2" Fine wheel studs
    • GM Metric '78-'88 calipers, 2-1/2" piston
    • 7/16" banjo bolt to AN-3 line adapter kit
  • Traditional or Cross Steering Kit
    • Flat plate steering arms
    • 5/8" tie rod steering link
    • 5/8" standard heim joint rod ends
    • Seals-It 5/8" rod end seals
    • 5/8" steel cone heim spacers

Spindle Identification Guide (GIF)

Application

  1. Chevy 1949-54 spindles are specifically designed for use on tube axles. A shorter, thicker axle stub makes this a slightly stronger spindle ideal for use with heavier street rods.
  2. Ford 1928-48 spindles are generally your best choice when using an original Ford axle or an aftermarket I-beam axle.

Notes

Cross Steering vs. Traditional Steering

Traditional steering provides an original, period look, but will only work in these applications:

  • Four bar setup with '68-'73 Mustang box
  • Split wishbone or hairpin radius rod with reversed Corvair or '48-'56 Ford Puckup steering box
  • Parallel Steering Set-Up Guide

Cross steering (using a Vega box) is the preferred method for nearly all cross spring, beam axle suspensions. Ford used this design from 1935-on.

  • Less bumpsteer
  • More comfortable steering column angle
  • Frees up foot pedal / bellhousing room
  • Cleaner vehicle profile
  • Cross Steering Guide

Item Details

9-1/4" rotors

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

dan31chevy
Pittsfield, MA

very nice product.

May 23, 2010
you guys make it to easy with the full kits you sell. I can not wait to drive it
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 2 answers

1 answers

Do you offer a Chevy Front Axle Steering & Brake Kit that uses Mustang II Rotors & Calipers? Do you offer a kit similar to this one that uses the Mustang II 9 1/4" Rotors and Mustang II Calipers so that all of the parts required to mount these items on the Chevy Spindles can be purchased in one kit?

carcrazy
April 21, 2014

Do you offer a Chevy Front Axle Steering & Brake Kit that uses Mustang II Rotors & Calipers? Do you offer a kit similar to this one that uses the Mustang II 9 1/4" Rotors and Mustang II Calipers so that all of the parts required to mount these items on the Chevy Spindles can be purchased in one kit?

Answers

April 21, 2014
EricM
We apologize but Speedway does not offer a complete steering and brake kit for the Chevy spindles that use the Mustang II calipers and hardware. We could however do a kit as requested but you will need to visit with one of our street rod techs to complete the order.
1 answers

i have a 5 chevy truck axle, i need parts to make it stop, steer, and fit my 55 chevy 210 sedan. i can't find them on your web site, do you have these items?

mikes55chevy
woodscross, utah
July 12, 2011

i have a 5 chevy truck axle, i need parts to make it stop, steer, and fit my 55 chevy 210 sedan. i can't find them on your web site, do you have these items?

Answers

July 14, 2011
John
This Chevy front axle steering and brake kit includes the spindles for the 49-54 Chevy car and even though the king pin diameter is the same the axle boss the kingpin passes through is at a different angle and will NOT work together properly. If you have the Chevy truck axle and spindles we have the disc brake kit for the conversion. We do NOT have a kit for mounting the axle in the 210 series car. The pickup runs parallel leaf springs and the spacing between is different from the car. For an application as requested we would suggest an axle kit such as part number 91639032 and used in conjunction with the steering and brake kit number 9133901. If needed the kit can be upgraded to 11” rotors for better stopping power or even the Wilwood kit under part number 9133903.
Page 1 of 1
