Chevy Engine Assembly

4-bolt main .060 over Gen IV block1 piece rear sealCylinders honed on computer controlled machine to within .0002Cylinders are sonic tested for thicknessNew forged steel externally balanced crankshaft 4.250 strokeNew 168 tooth flexplateH-beam connecting rods with 150,000 PSI rod boltsHypereutectic pistons10.1 to 1 compressionRotating assembly balancedHydraulic roller cam566 Intake / .566 exhaust & 242 intake / 248 exhaust duration @.050 - 112 degree lobe separationAluminum rectangular port cylinder headsPower + crosswind dual plane aluminum intake manifoldValve covers, oil pan and timing ...

Building a hobby stock or performance street Chevy motor? You must get one of these books! Add torque and HP for less $$ output. This book is well illustrated! 100 pages.

This dual-purpose hardened steel tool serves a both a rotating tool and balancer retainer. It simply fits into the harmonic balancer on Small Block Chevys and provides a positive way of rotating the engine (in either direction) when setting valves, locating TDC or degreeing cam. It is permanently retained on the motor serving as a balancer washer/bolt assembly to retain the balancer/damper on the crank.

Hands-on, step-by-step DVD. Assembly from bare block through start-up. Everything you need to build a full 383 Chevyrace engine.

Have you ever wanted to build your own stroker small-block Chevy? Or maybe you'd like some advice on parts selection for building a strong small-block V8 for racing or street use. This how-to DVD has more than 7 hours of step-by-step instructions illustrating how to assemble a 600-horsepower, 383ci small-block Chevy on a real-world budget. Better yet, it shows all of the Speedway Motors part numbers used during the build - making it easy to identify the parts you need to build an engine for yourself! Detailed assembly tips and ...

Engine assembly completion sets by SuperSeal. R.A.C.E. stands for "remainder to assemble a complete engine." Available for S/B Chevy.

MSD's Advanced Power System line has grown to include starters! This new APS Starter is designed to crank over the highest compression engines on a hot day in Death Valley. Not that too many race cars are sitting in Death Valley, but it's good to know that you have the oomph to make it happen. The APS Starter features all new components beginning with a three horsepower motor. This power is used to crank over the reduced 4.4:1 gear set to deliver great torque to the engine's ring gear to ...

World Products has developed this package for the performance enthusiast who is faced with rebuilding a 454 cubic inch Chevrolet big block and would like to gain some serious displacement at virtually no extra cost! Just ad an intake, exhaust and ignition system and you're on your way to a 500+ horsepower engine combination with stump-pulling torque! It features a MERLIN III cast iron block, a digitally balanced rotating assembly consisting of a 4340 forged steel crank and H beam rods, forged aluminum pistons and high performance rings. The MERLIN ...

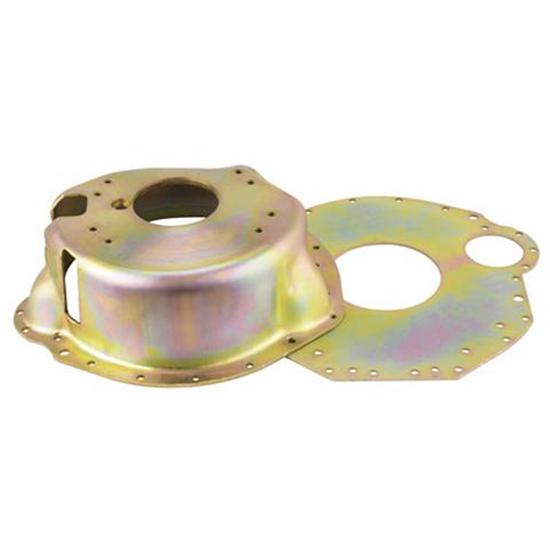

Explosion proof bellhousing for 1958 and later Chevy, Olds, Buick and Pontiac.Dual starter pockets, places starter either side of engine.Uses standard, cable or hydraulic linkage.Complete assembly includes housing, block-plate, and hardware for bolting the block plate to the bellhousing. This complete bellhousing has the SFI sticker attached. This bell housing has an SFI Rating of 6.1.This part will fit 1962-1992 Chevy V8 and some Chevy V6 (1962-1992). Will fit Oldsmobile and Pontiac V8, and some V6 (1965-1992). And will fit Buick V8 and some V6 (1967-1980). Fits all popular GM ...

Unquestionably the most important fasteners in any engine are the connecting rod bolts, as they hold the key to the entire rotating assembly. ARP High Performance series rod bolts are forged from 8740 chromoly steel. They feature rolled threads and large cold-formed fillets in the head-to-shank area for increased strength.

This informative new book explains how to understand the specific needs of your car and track, and how to build an engine to address them. Includes information on parts selection, machine work and assembly, with in-depth builds on three race engines.

Unquestionably the most important fasteners in any engine are the connecting rod bolts, as they hold the key to the entire rotating assembly. ARP High Performance series rod bolts are forged from 8740 chromoly steel. They feature rolled threads and large cold-formed fillets in the head-to-shank area for increased strength.

The Chevrolet housing has several racing features that racers will appreciate. At the base of the CNC machined housing there are two O-ring grooves. These seals prevent oil in the lifter gallery from leaking through the oil passage. If the engine deck, heads or intake have been modified, there is an adjustable slip collar which allows you to set the correct installation depth. A fine-blanked advance cam is TIG-welded on top of the 0.500" QPQ-coated shaft. Added to the advance plate are chro-moly weight pins which are staked and TIGwelded ...

Unquestionably the most important fasteners in any engine are the connecting rod bolts, as they hold the key to the entire rotating assembly. ARP High Performance series rod bolts are forged from 8740 chromoly steel. They feature rolled threads and large cold-formed fillets in the head-to-shank area for increased strength.

This comprehensive book not only covers components but shows you proven engine build-ups, casting numbers, and machining process'. One of these books will also share assembly tips. 144 pages. 500 photos.
