Champ Pans CP40RB 1986-Up S/B Chevy Stock Appearing Oil Pan, 1-Piece

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Zinc
Liquid Measurement:
5
Depth:
7.50
Dipstick Location:
Passenger Side
MFG. Part #:
CP40RB
Oil Inspection Plug:
No
Pan Style:
1-Piece Rear Main
Garage Sale:
No
Sump Style:
Wet Sump

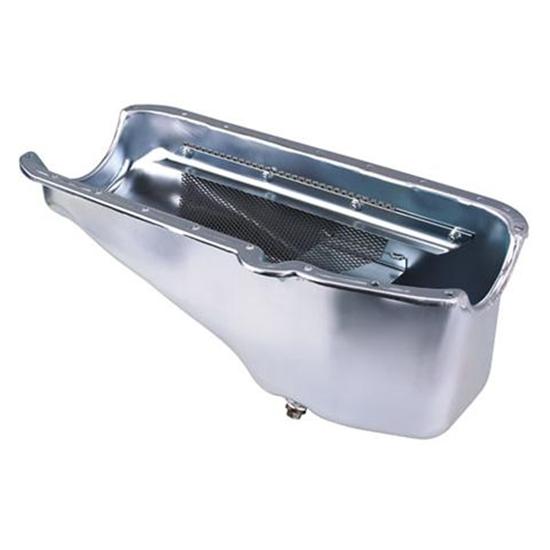

Champ Pans CP40RB 1986-Up S/B Chevy Stock Appearing Oil Pan, 1-Piece
Champ Pans CP40RB 1986-Up S/B Chevy Stock Appearing Oil Pan, 1-Piece
Champ Pans CP40RB 1986-Up S/B Chevy Stock Appearing Oil Pan, 1-Piece

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

This stock appearing street oil pan features a 7-1/2" deep rear sump and has one 6" trapdoor, one crank scraper, and a removable horsepower saving windage tray. The oil capacity is 5 quarts with a filter attached.

Item Details

1-piece Rear Main

Customer Reviews

Rated 4.5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
1
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Tumanator
Verified Reviewer
Minnesota

A little missleading....

July 19, 2015
This pan is the same depth as a stock pan and has no extra volume. It was 5 quarts with filter to bring oil level up. Although it does have the crank scrapper and windage tray, it looks like it is more for looks than actual performance. I needed a "stock appearing" pan for the class of racing I do. It has a trap door to hold oil from running to the front of pan which is probally helps the most. Was hoping for an extra quart. The pickup for this pan is usless, it measured an inch from bottom of pan. I sent the pickup back and used the stock pickup and turned it down to 1/4" from bottom of pan so don't waste your money on the pickup. Champ should have a better pickup availible. If you really want a sraper, get the moroso trim to fit. Over all, it did have better oil control under my race conditions.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Bud
Verified Purchaser
Houston, TX

Stock Appearing Performance Pan

January 21, 2012
Has many High Performance features at a good price and does not require the additional hardware of race pans.
Pros:
  • Great Features
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 2 answers

1 answers

Is this pan right or left side dipstick ?

Teri
Pennsylvania, USA
August 20, 2013

Is this pan right or left side dipstick ?

Answers

August 21, 2013
Jason
Sorry for the confusion with the picture, part #91015136 is for a 1 piece rear main seal and they have a right hand side dipstick.
1 answers

I just want to be sure that this pan will fit on the LT1 engine in my 95 Chevy Z28 Camaro. This engine is stock internals as far as I know and does have long tube headers. Also want to be sure the stock oil pump will have no fitment issues.

Matthew T 95SSZ
Baton Rouge, LA
August 28, 2011

I just want to be sure that this pan will fit on the LT1 engine in my 95 Chevy Z28 Camaro. This engine is stock internals as far as I know and does have long tube headers. Also want to be sure the stock oil pump will have no fitment issues.

Answers

August 30, 2011
John
This pan should work on all small block Chevy engines from ’86 and newer with the one piece rear main. This would include your ’95 LT1.
