C&R Radiators Double Pass Radiator, 19 Inch X 31 Inch, RH

SAME DAY SHIPPING! Order within the next 9 hours 53 minutes and receive same day shipping

Specs
Material Type:
Aluminum
Overall Height:
18.68
Overall Width:
31.00
Transmission Cooler:
No
Tube Style:
Crossflow
Sold in Quantity:
Each
Overall Thickness:
3.00
Row Quantity:
Dual
Finish:
Natural
Inlet Location:
Upper Right
Inlet Size:
1.50
Outlet Location:
Lower Right
Core Height:
18.38
Core Width:
27.50
Core Thickness:
2.25
Filler Neck Height:
1.00
Radiator Style:
Double Pass
MFG. Part #:
8200310075

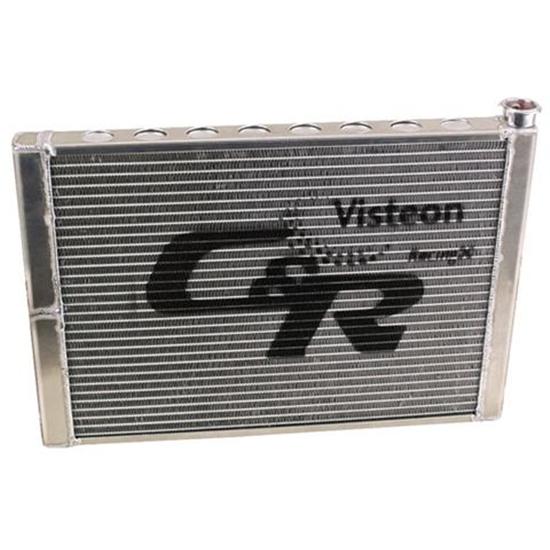

C&R Radiators Double Pass Radiator, 19 Inch X 31 Inch, RHC&R Radiators Double Pass Radiator, 19 Inch X 31 Inch, RHC&R Radiators Double Pass Radiator, 19 Inch X 31 Inch, RH
C&R Radiators Double Pass Radiator, 19 Inch X 31 Inch, RH

Click image to enlarge

Speeday Motors Logo
X
C&R Radiators Double Pass Radiator, 19 Inch X 31 Inch, RH

Details

Reviews

Q & A

What's in the Box

The C&R Racing Double Pass Aluminum Cross Flow Radiator features a single, female, 20-port fitting with 1-1/2" neck for the inlet. The lower hose neck measures 1-3/4" and the inlet and outlet are on the same side.

The width measurement (31") is measured from outside of tank to outside of tank, the entire radiator, not just the core.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.
