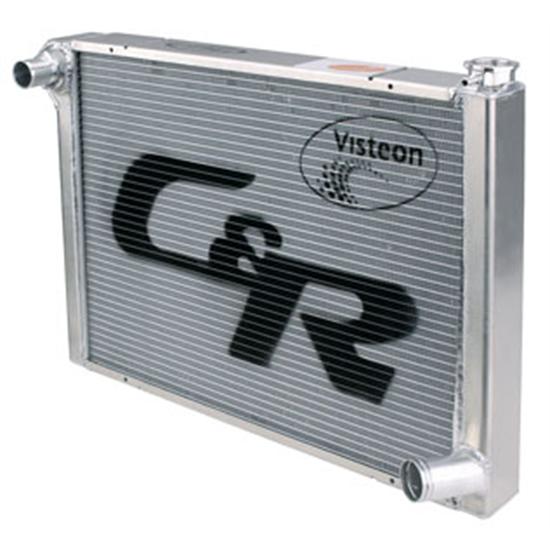

C&R Radiators 802-26190 Chevy Aluminum Radiator, 19 x 26 Inch

SAME DAY SHIPPING! Order within the next 5 hours 31 minutes and receive same day shipping

Specs
Material Type:
Aluminum
Overall Height:
18.75
Overall Width:
26.00
Transmission Cooler:
No
Tube Style:
Crossflow
Sold in Quantity:
Each
Overall Thickness:
3.00
Row Quantity:
Dual
Finish:
Natural
Inlet Location:
Upper Left
Inlet Size:
1.50
Outlet Location:
Lower Right
Core Height:
18.50
Core Width:
22.50
Core Thickness:
2.25
Filler Neck Height:
1.00
Radiator Style:
Single Pass
MFG. Part #:
8000260075
C&R Radiators 802-26190 Chevy Aluminum Radiator, 19 x 26 Inch
C&R Radiators 802-26190 Chevy Aluminum Radiator, 19 x 26 Inch

Click image to enlarge

Speeday Motors Logo
X
C&R Radiators 802-26190 Chevy Aluminum Radiator, 19 x 26 Inch

Details

Reviews

Q & A

What's in the Box

The 8000 Series is available for larger engine cooling needs. Perfect for late models running V-8 engine with 300 H.P. and above. This radiator has a 2 row core and is a Chevy engine configuration. Standard with 1- 1/2" inlet and 1-3/4" outlet and top and bottom mounts.

The width measurement (26") is measured from outside of tank to outside of tank, the entire radiator, not just the core.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.






You may also be interested in:

Speedway Ford-Mopar Universal Radiator
                        Leave it to Speedway to offer you a professional quality aluminum racing radiator at an affordable price. Check out these features:
  • All aluminum, furnace brazed construction - NO EPOXY, NO GASKETS
  • 2 rows of 1" aluminum tubes (out cools 5 rows of copper)
  • Maximum amount of fins per inch, allows greater heat transfer
  • Billet filler neck - not stamped
  • Available in 22", 24", 26", 28" or 31" (width measurements include tanks)
  • 19" tall

In this Ford / Mopar Application the upper hose is located on the passenger side & the lower hose is located on the driver side.

Speedy Bill recommends using a 32 lb. or less radiator cap and to check it regularly.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance

C&R Radiators 802-22190 Double Pass Radiator, 19 Inch X 22 Inch, RH


The C&R Racing Double Pass Aluminum Cross Flow Radiator features a single, female, 20-port fitting with 1-1/2" neck for the inlet. The lower hose neck measures 1-3/4" and the inlet and outlet are on the same side.

The width measurement (22") is measured from outside of tank to outside of tank, the entire radiator, not just the core.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

C&R Radiators Double Pass Radiator, 19 Inch X 26 Inch, RH


The C&R Racing Double Pass Aluminum Cross Flow Radiator features a single, female, 20-port fitting with 1-1/2" neck for the inlet. The lower hose neck measures 1-3/4" and the inlet and outlet are on the same side.

The width measurement (26") is measured from outside of tank to outside of tank, the entire radiator, not just the core.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

C&R Radiators Double Pass Radiator, 19 Inch X 31 Inch, RH


The C&R Racing Double Pass Aluminum Cross Flow Radiator features a single, female, 20-port fitting with 1-1/2" neck for the inlet. The lower hose neck measures 1-3/4" and the inlet and outlet are on the same side.

The width measurement (31") is measured from outside of tank to outside of tank, the entire radiator, not just the core.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Flex-a-lite Model 160 Electric Cooling Fan


One piece plastic shroud with full contact rubber seal that maximizes air flow (forces all air through the radiator). Highest CFM rating in the industry for this size. High torque, high RPM motor draws 19.5 amps and moves 3000 CFM.

  • Provides constant cooling, regardless of engine RPM
  • Generates cooler A/C output
  • Extends water pump life
  • Rigid bracket mounting system, no through core mounting
  • Entire assembly is only 4-1/4" thick
  • Includes 160° adjustable thermostat control
  • Amp Draw:  19.5
  • Blades:  8
  • Controls:  160° adjustable thermostat, A/C relay, and manual switch connection
  • Fuse/Breaker:  40 amp fuse

Flex-a-lite Instructions (PDF)

Learn more about the importance of using a fan and shroud with our radiators by reading our tech article. Radiator Cooling Performance

Radiator Rubber Pads
                        This set of radiator pads consists of two pieces of 1/4" thick rubber. One set provides enough rubber for all four brackets in our radiator mount bracket kit 91734700-STL.

Speedway High Pressure Radiator Cap, 29-31 Lbs


A must have when racing! High pressure cap for radiators raises boiling point of water.

Learn more about cooling systems, how to choose the proper pressure cap, and how they work by reading our tech article. Cooling System Principles.

15 Inch Stainless Steel Expansion Tank


2" outside diameter, 1⁄4" O.D. nipples - works with any radiator. Stops loss of coolant and prevents pulling air into system when cooling off. Polished stainless steel expansion reservoir tank with screw-off cap.

  • Heavy wall construction
  • Billet screw in cap
  • Clear neoprene seal

911-02215 Instructions (PDF)

Quick Tight Hose Clamp, 1-5/8 - 2-1/8 Inch
                        Stainless steel quick-tight tube clamps eliminate the need for a screwdriver. Has hole for safety wire tie. Clamps over 1.625" to 2.125" O.D. hose.

C&R Radiators Chevy Aluminum Radiator, 19 x 31 Inch


The 8000 Series is available for larger engine cooling needs. Perfect for late models running V-8 engine with 300 H.P. and above. This radiator has a 2 row core and is a Chevy engine configuration. Standard with 1- 1/2" inlet and 1-3/4" outlet and top and bottom mounts.

The width measurement (31") is measured from outside of tank to outside of tank, the entire radiator, not just the core.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.






Dominator Cut-to-Fit Radiator Shroud


This universal radiator shroud is made from tough high-impact plastic to withstand today's rigorous racing. Mounting brackets will need to be fabricated for each application.

  • 23-3/8" W x 20-7/8" L x 2-7/8" T
  • Accommodates up to a 19" diameter fan
  • Keeps motor cool during a long night of racing

Learn more about the importance of using a fan and shroud with our radiators by reading our tech article. Radiator Cooling Performance.

Derale 13700 Remote Fluid Cooler


With its own air supply, this remote cooler can literally be mounted almost anywhere, making it a popular addition for performance compacts, hot rods, muscle cars, and trucks. An efficient 16-pass tube-and-fin cooler coupled with a Tornado fan and aluminum brackets makes this unit ideal for transmission, power steering and fuel cooling.

  • Mounts anywhere space permits
  • Electric fan supplies optimum air flow
  • 16 pass core
  • 650 CFM reversible Tornado electric fan
  • Built with AN 6 male fittings
  • Two 3/8" hose barb adapters included
  • 16-3/4" wide, 11-1/2" tall, 5" thick
  • Inlet Spacing:  8-3/4"
  • Barb Size:  3/8"
  • Airflow:  Puller (reversible)

Remote Fluid Cooler Installation Instructions (PDF)

Speedway Steel Radiator Mounting Hardware-2 Upper & Lower Brackets


Mounting radiators can be a real pain, but these universal radiator mounting brackets will makes it a little easier. Brackets are designed to mount our universal aluminum crossflow radiators with a 3" thick core to a variety of applications. Don't forget to order the rubber insulator pads (sold separately).

917-34700-STL
This kit contains 4 steel brackets. The lower brackets measure 3-1/4" inside to inside. The upper brackets measure 2-1/2" inside to inside.

917-34700-ALU
This kit contains 4 aluminum brackets. 2 lower mounts brackets and 2 upper mount brackets (for weight savings). The lower brackets measure 3-1/4" inside to inside. The upper bracket measure 2-1/2" inside to inside.

917-34700-SS
This kit contains 4 stainless steel pieces. 2 lower mounts brackets and 2 upper mount brackets. The lower brackets measure 3-1/4" inside to inside. The upper bracket measure 2-1/2" inside to inside.
