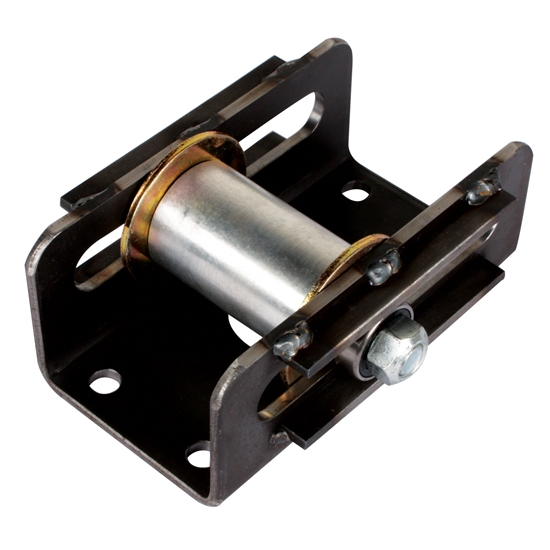

Camaro Leaf Spring Sliders

SAME DAY SHIPPING! Order within the next 17 hours 50 minutes and receive same day shipping

Specs
Material Type:
Steel
Overall Height:
2.63
Overall Width:
4.75
Overall Length:
6.00
Sold in Quantity:
Each
Finish:
Natural
Bushing Length:
2.56
Bushing Diameter:
1.62
Material Thickness:
.19
Garage Sale:
No
Camaro Leaf Spring Sliders
Camaro Leaf Spring Sliders
Camaro Leaf Spring Sliders

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

  • Fewer tendencies to bind laterally during cornering
  • Improve the handling consistency and predictability
  • Replaces spring shackles
  • Roller bearing design prevents binding
  • Frees up car during suspension movement
  • Pre-drilled holes for bolt-on applications
  • Designed specifically for Camaro leaf springs

Customer Reviews

Rated 4 out of 5 by 3 reviewers.
RATING BREAKDOWN
3 reviews
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
1
1 Star
0
RECOMMEND THIS PRODUCT:

Lynda
Verified Purchaser
Verified Reviewer
Caldwell, Texas

Just what I needed.

May 11, 2015
Works as we expected it to.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

underdog99
Verified Purchaser

Bushings too big

February 23, 2015
Bought these for my S10 since the spring eye is the same as a Camaro at 1.5 ID. The aluminum bushings provided measured 1.62 OD I know they are a press fit but not 120 thou. That is almost an 1/8" I took them to a local machine shop and had them turned down to 1.51. They then pressed in perfectly but cost another 30 bucks plus the agravation. They are well made otherwise but in hindsight, I think I would just go with poly bushings in the stock shakles.
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Merchant Response:

underdog99 ??_ Thanks for your review. We appreciate hearing from you. Your review has been passed along to our Customer Service team to review the situation and our QC team to record and inspect the issue with this product. We apologize for your frustration and are always happy to help.
CowboyGeorge1
Verified Purchaser

Smartest idea ever

August 18, 2014
Since I installed these , now I hate shackles nice job
Pros:
  • smother launch
Cons:
  • None
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 3 answers

1 answers

what year will this fit. I have a 77. Will this fit or will it need modification. If so what would need done.

transam
September 21, 2014

what year will this fit. I have a 77. Will this fit or will it need modification. If so what would need done.

Answers

September 22, 2014
EricM
Yes this slider will fit your 77 Trans Am. It will fit 70 to 81 Camaro and Firebird.
1 answers

It appears this part bolts to the trunk floor. Is there clearance issues with the fuel tank? Does this installation affect ride height?

Duke
Oceanside,CA
September 26, 2012

It appears this part bolts to the trunk floor. Is there clearance issues with the fuel tank? Does this installation affect ride height?

Answers

September 27, 2012
Eric
This slider will eliminate the shackle on the rear of your leaf springs. It will be bolted or welded into place where the current shackle is fastened to the frame of your Camaro. This item is not intended for street use. We use them in circle track racing to get a more true spring rate so ride quality is unknown.
1 answers

What diameter spring eye is this for ? What width of leaf spring is this for ? What is the bolt size used ? thanks, John

John
July 08, 2015

What diameter spring eye is this for ? What width of leaf spring is this for ? What is the bolt size used ? thanks, John

Answers

July 08, 2015
Eric
Expert
This is for a 1 5/8" ID spring eye and a leaf width of 2 1/4". This slider uses a 1/2" bolt.
