This 1979-up GM Metric front disc brake rotor will work with a Set # 6 inner bearing/race which fits most spindles. 5 on 5" with 5/8" coarse studs installed. 10.5" diameter x 1". Must be used with 912-TS3 outer bearings for 1982-1987 spindle applications. IMCA Approved. This is a 1979-1981 Metric GM rotor with the bolt pattern changed to 5 on 5". It can be used on 1982-1987 GM metric spindles if the you use our bearing/seal kit 91031048, or use at least the 1979-1981 style outer bearing 912TS3. This rotor is designed ...
Willwood brake hats have a long standing reputation for fit performance and durability. Manufactured from premium grade aluminum alloys offering high strength and low weight.Wilwood Brake Hat Chart (Link)
AFCO's disc brake rotors set the pace for design, quality and performance. Specially engineered materials, computer-enhanced design, and extensive lab and track testing have yielded a superior brake rotor. All AFCO rotors have been optimized for strength, weight, and heat dissipation ability to meet the demands of the serious racer. Premium grade alloy for superb thermal shock stability Machined and blanchard ground to assure precise flatness Precise vane placement for high volume cooling Bolt Circle: 7" Diameter: 11.75" Mount: 8 x 5/16" Weight: 10.2 lbs Instructions (PDF)

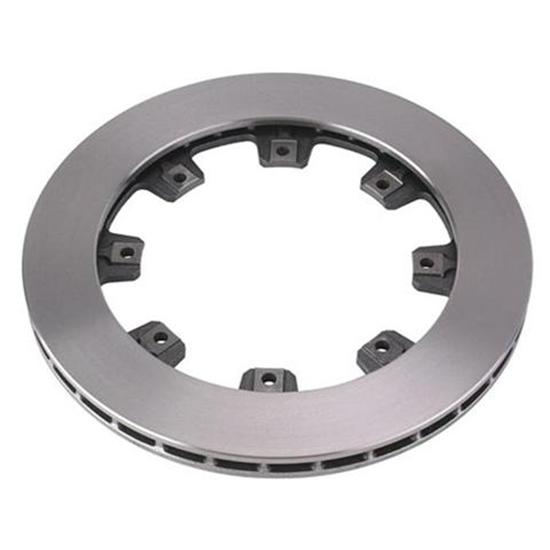

Every Wilwood brake rotor is cast from premium grade, long grain carbon iron. This material exhibits long wear, high thermal stability, and excellent resistance to distortion in high heat. Modern foundry and machining techniques hold close tolerances on face and vane thickness. Combining the correct face thickness with a 32 vane casting provides superior heat management and long service life with low rotating and unsprung weight. The straight vane design also makes it possible to use the same rotor on left or right hand mounting locations. Ultralite Rotor Application Chart ...
New castings Exact tolerances Come standard with races and 5/8” coarse wheel studs installed 5 on 5” bolt pattern GM Metric rotor is 10.50” diameter by 1.00” thick and fits the 1979 and up GM spindles
Speedway's premium 32 Vane scalloped cast iron brake rotors weigh only 6.13 lbs. 12.19" x .81", 8 on 7 thru.
Spun steel hat with 5 on 4-1/2" 5 on 4-3/4" and 5 on 5" bolt circle patternsRotor: 7" bolt circle; eight holesHub with .50" diameter mounting holes3.00" offset3.06" diameter of center holeWeighs just 2 lbs.IMCA approved5.83" clearance I.D.Note: Axle flanges may require machining for hats.
When it comes to brake rotors, racers are constantly searching for the ultimate balance between the lowest weight and the ability to effectively manage heat. Decreased rotating weight in the drive line provides quicker deceleration under braking and quicker acceleration out of the corners. Lower weight also benefits handling with improved spring and shock control over the unsprung suspension mass. Wilwood's ULS-32 scalloped iron rotors provides effective lightweight options for sprints, late models, modifieds, and other competition applications that race in low to medium temperature ...
Lightweight high-strength spun steel hats Provide solid mounting of bolt-on rotors to OE axles and racing hubs when aluminum hats are not allowed Features multi-hole lug pattern for universal application on the popular 5 lug mount patterns Not for use on parking brake applicationsWilwood Specs Sheet
Stamped steel hat with all three bolt patterns: 5 on 4-1/2" 5 on 4-3/4" and 5 on 5" bolt circle patterns. Weighs just 2 lbs. and is IMCA approved.Rotor Bolt Circle: 7"x 8 holes 3.00" offset3.05" diameter center hole5.83" I.D. clearanceStud Hole Diameter: 1/2"Rotor Mount Bolt Hole: .325"Instructions (PDF)
Genuine AFCO replacement parts for 1975-81 Ford Granada style rotors 106-98506510 and 106-98506511.
Willwood brake hats have a long standing reputation for fit, performance, and durability. Manufactured from premium grade aluminum alloys offering high strength and low weight. Wilwood Brake Hat Chart (Link)
U.S. Brake's disc brake rotors set the pace for design, quality and performance. Special designed materials, enhanced computer imagery and design, as well as extensive lab and track testing have yielded a superior brake rotor. All U.S. Brake rotors have been optimized for strength, weight, and heat dissipation ability to meet the demands of the serious racer. Premium grade alloys for superb thermal shock stability Machined and blanchard ground to assure precise flatness Precise vane placement for high volume cooling Instructions (PDF)
AFCO continues the commitment to bring new and innovative components to the racing community. Pillar vane rotors are engineered to provide superior strength, reduce rotor weight and run cooler. At the heart of the rotor, each pillar is diamond shaped providing brake pad surface stability as well as reducing rotating weight over rotors of similar strength. Racers will take note of reduced weight when compared to rotors of similar strength. Reduced rotating weight means reduced lap times. When brake performance is discussed, AFCO is the bottom line. Designed using premium ...
