Brake Kit: 1969-77 GM Caliper to Early Ford Spindles, Chevy B-P

Specs
Centerline of Holes:
7.00
Material Type:
Cast Iron
Sold in Quantity:
Kit
Finish:
Natural
Bolt Pattern:
5 on 4.75"
Stud Length:
.94
Stud Diameter:
.44
Thread Pitch:
7/16"-20
Hardware Included:
Yes
Rotor Diameter:
11.00
Caliper Pistons:
Single
Rotor Thickness:
1.00
Caliper Finish:
Natural
Rotor Construction:
Vented
Garage Sale:
No
Rotor Location:
Front
Rotor Shape:
Round
Drilled:
No
Slotted:
No
Notes
Includes rotors, bearings and seals, calipers, pads, brake hoses, brake tabs, and caliper brackets.
Brake Kit: 1969-77 GM Caliper to Early Ford Spindles, Chevy B-PBrake Kit: 1969-77 GM Caliper to Early Ford Spindles, Chevy B-PBrake Kit: 1969-77 GM Caliper to Early Ford Spindles, Chevy B-P
Brake Kit: 1969-77 GM Caliper to Early Ford Spindles, Chevy B-P

Click image to enlarge

Watch the video below to learn how to correctly measure your wheel bolt pattern.

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

GM bolt pattern 5 on 4-3/4"

Easily installs 11" rotors and 1969-77 mid-size GM single piston calipers to your 1937-48 Ford passenger car spindles. No machine work needed.

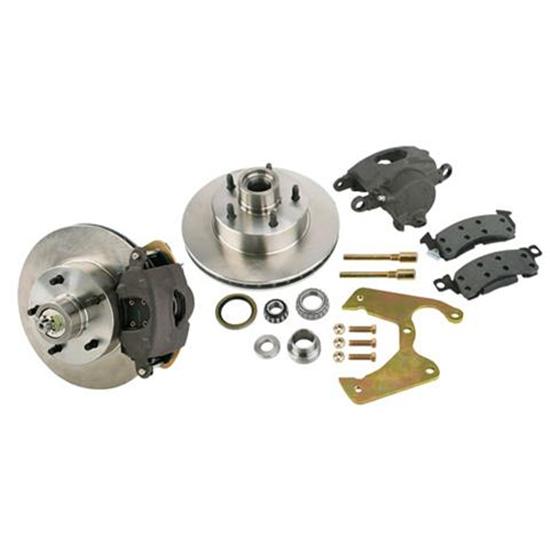

Kit Includes:
  • New 11" brake rotor, 5 x 4-3/4"
  • Semi-metallic brake pads
  • GM Caliper slide bolts
  • Rebuilt 1969-77 calipers (7/16"-20 inlets)
  • 1973-77 GM brake brackets
  • 1973-77 hardware
  • New bearing and seal adapters
  • Seals
  • Inner bearing cups
  • Rubber Brake Lines
  • Inner bearing cones
  • Spacers
  • Outer bearing cones
  • Seals
  • Bolt kit for flat steering arm
  • Dust caps
  • Instructions
  • Not for use with bolt-on steering arms.  The 11" rotor brake kits are great for Street Rods based on 1932-48 Fords. However these kits are much too large and heavy for a T-bucket or earlier roadster.

    910-31941 Instructions (pdf)

    Notes

    This kit is designed to work on the 37-48 Ford spindles that have the cast on steering arms.  It will not function correctly when used on a spindle that uses bolt on steering arms and would require alteration.  The kit mentioned has the common Chevy 5 on 4 ¾” bolt pattern and is also available with the Ford, 5 on 4 ½” bolt pattern under kit number 910-31940.  Both kits use an inner bearing and seal adapter to increase the O.D. for the larger bearings and seals used in the kit.

    Item Details

    11" Rotor and Pre-1978 GM Caliper to Early Ford Spindles
