IMPORTANT NOTE: Ring & Pinion ratios from 3.23 - 4.56 are designed for use with a "3 series" carrier. If you intend to install these ratios with a "2 series" carrier you need to use ring gear spacer #910-48305.7.50" diameter ring gear1.438" diameter pinion27 splines
IMPORTANT NOTE: Ring & Pinion ratios from 3.23 - 4.56 are designed for use with a "3 series" carrier. If you intend to install these ratios with a "2 series" carrier, you need to use ring gear spacer #910-48305. 7.50" diameter ring gear 1.438" diameter pinion 27 splines
Many ratios to choose from.8.50" diameter ring gear1.625" diameter pinion10 ring gear bolts10 cover bolts30 pinion splinesUses LH thread ring gear bolts -7/16"-20Note: When replacing a stock 2.56 (or numerically lower) ratio the carrier must also be replaced with a 2.73 or higher ratio's carrier to compensate for the difference in ring gear thickness.
Everything you need for a complete ring and pinion installation job. Kit Includes:cover gasketcrush sleevemarking compound and brushpinion and carrier bearingspinion nut and washerpinion sealthread locking compoundsealerNote: Pinion-depth shims are not included.
Everything you need for a complete ring and pinion installation job. Kit Includes:cover gasketcrush sleevemarking compound and brushpinion and carrier bearingspinion nut and washerpinion sealthread locking compoundsealer side case and pinion bearingspinion crush sleeveseal and pinion nutAlso comes with lock tite and pattern marking compound and gasket. Note: Pinion-depth shims are not included.

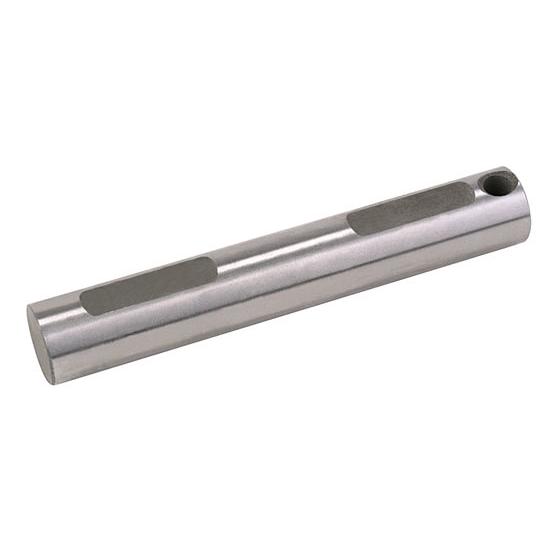

Special 4130 Chromoly cross pin required for ratios of 5.38 or higher.
Many ratios to choose from. 8.50" diameter ring gear 1.625" diameter pinion 10 ring gear bolts 10 cover bolts 30 pinion splines Uses LH thread ring gear bolts - 7/16"-20 Note: When replacing a stock 2.56 (or numerically lower) ratio, the carrier must also be replaced with a 2.73 or higher ratio's carrier to compensate for the difference in ring gear thickness.
