Tech Tip: When assembling a tube, each heim end adds approximately 2" to the overall length (assuming the heim is screwed into the tube half way.) If you have a heim on each end of the tube, the working length from eye to eye will be approximately 4" longer overall than the tube. As a rule, your tube length will need to be 4" shorter than your working eye to eye length requirement.

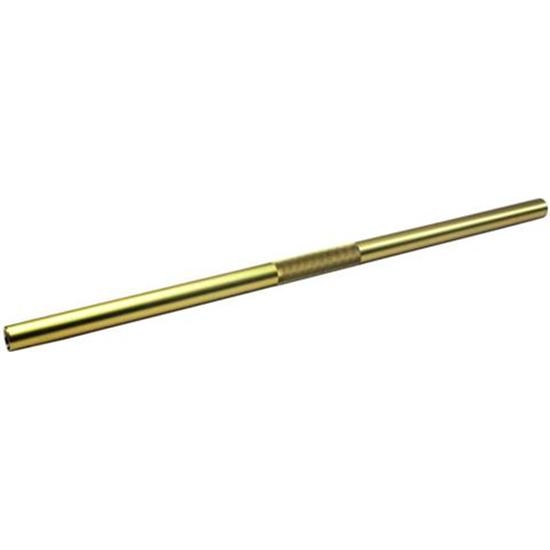

Each 3/4" thread steel swedged sleeve has a 1" O.D. tube, 0.095 wall, and 3/4" RH and LH fine threads. Available in 1" increments from 9" to 30" and 37". IMCA appproved. Sold each.
1 1/8" OD x .058 wall. 4130 tubing.3/4"-16 fine thread.
1 1/8" OD x .058 wall. 4130 tubing.
3/4"-16 fine thread.
