Aluminum Swedged Rod - 7/16 Inch Thread

Specs
Material Type:
Aluminum
Overall Length:
-
Sold in Quantity:
Each
Finish:
Polished
Tube O.D.:
.75
Thread Pitch:
-
Wall Thickness:
.120
Thread Pitch (2):
7/16"-20 LH Female
Garage Sale:
No
Tube Length:
21.00
Aluminum Swedged Rod - 7/16 Inch ThreadAluminum Swedged Rod - 7/16 Inch Thread
Aluminum Swedged Rod - 7/16 Inch Thread

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

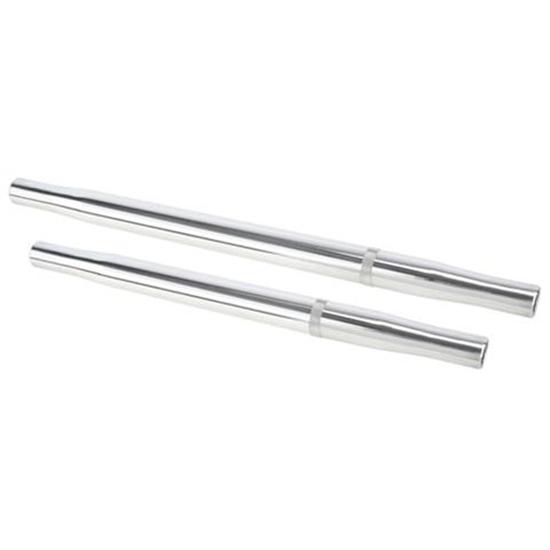

Swedged aluminum steering panhard and radius rods that are 3/4" x .120 round 6061-T6 and tapped for 7/16"-20 thread rod ends. Stocked in several lengths.



Application

Tech Tip: When assembling a tube, each heim end adds approximately 1.5" to the overall length (assuming the heim is screwed into the tube half way.) If you have a heim on each end of the tube, the tube will be approximately three inches longer overall.

You may also be interested in:

Standard Steel Heim Joint Rod Ends, 7/16-20 RH Male
(Part #1750104)


These right hand standard rod ends are a general purpose, two-piece design. They have a carbon steel body and a hardened steel ball without a race (metal to metal contact).

Applications: Clutch, brake, steering linkage, & suspension components on moderate horsepower applications.

Assembly: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Standard Steel Heim Joint Rod Ends, 7/16-20 LH Male
(Part #1750304)


These standard rod ends are a general purpose, two piece design. They have a carbon steel body and a hardened ball with metal to metal contact.

Applications: Clutch, brake, steering linkage, and suspension components on moderate horsepower applications.

Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Standard Rod End Chart (GIF)

Precision Carbon Steel RH Male Heim Joint Rod Ends, 7/16 Inch
(Part #1750114)
                        Precision steel rod ends provide greater strength than our "standard" rod ends. They have close tolerance and have a 3 piece medium duty rod end. Carbon steel body, 5210 precision ground ball and feature a Teflon Kevlar race. Self lubrication teflon liner to seal out dirt and debris. Shank and hole are the same size.

Applications: Clutch, Brake, Steering & Suspension Components. Quieter, Smoother, & More Durable Than 2 Piece Rod Ends. Tight Tolerance of Kevlar Race Reduces "Slop" In Steering & Suspension.

ASSEMBLY TIP:
To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Standard Heim Sizes Chart (GIF)

Precision Carbon Steel LH Male Heim Joint Rod Ends, 7/16 Inch
(Part #1750314)
                        Precision steel rod ends provide greater strength than our "standard" rod ends. They have close tolerance and have a 3 piece medium duty rod end. Carbon steel body, 5210 precision ground ball and feature a Teflon Kevlar race. Self lubrication teflon liner to seal out dirt and debris. Shank and hole are the same size.

Applications: Clutch, Brake, Steering & Suspension Components. Quieter, Smoother, & More Durable Than 2 Piece Rod Ends. Tight Tolerance of Kevlar Race Reduces "Slop" In Steering & Suspension.

ASSEMBLY TIP:
To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Precision Rod Ends Chart Application (GIF)

Aluminum RH Male Heim Joint Rod Ends, 7/16 Inch
(Part #1170807)


Aluminum rod ends have close tolerance, 3 piece, medium duty rod end.  Hard anodized 7075-T6 aerospace quality aluminum body.  Heat treated, 5210 precision ground ball, Kevlar race.  Self lubricating Teflon liner to seal out dirt an debrisRH threads.

Applications: Designed for motorsports application where weight is critical.  All of the strength & features of the precision rod ends at half of the weight.

ASSEMBLY TIP:
  To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.
Aluminum LH Male Heim Joint Rod Ends, 7/16 Inch
(Part #1170807L)


Aluminum rod ends have close tolerance, 3 piece, medium duty rod end. Hard anodized 7075-T6 aerospace quality aluminum body.  Heat treated, 5210 precision ground ball, Kevlar race. Self lubricating Teflon liner to seal out dirt an debris.

Applications: Designed for motorsports application where weight is critical. All of the strength & features of the precision rod ends at half of the weight.

ASSEMBLY TIP:
  To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Aluminum Rod Ends Chart Application (GIF)

16 Piece Spacer Kit, 3/8 Inch
(Part #9601090)
                        Machined aluminum spacer offers clearance for rod ends.  Kit includes 8-1/4", 4-1/2", 2-3/4", and 2-1".

16 Piece Spacer Kit, 7/16 Inch
(Part #9601091)
                        Machined aluminum spacer offers clearance for rod ends.  Kit includes 8-1/4", 4-1/2", 2-3/4", and 2-1".

Rod End Supply AML 6-7 Heim Joint Rod Ends, 7/16-20 LH Male, 3/8 Hole
(Part #11708009)

  • 7075-T6 clear anodize aluminum
  • 7/16" shank, 3/8" hole
  • Self lubricating, self sealing
Rod End Supply AM 6-7 Heim Joint Rod Ends, 7/16-20 RH Male, 3/8 Hole
(Part #1170809)

  • 7075-T6 clear anodized aluminum
  • 7/16" shank, 3/8" hole
  • Self lubricating, self sealing
Stallard Chassis Micro Sprint Alum Turnbuckle, 7/16 Inch Heims
(Part #9606118)
                        These turnbuckles from Stallard are designed for use on Micro Sprint racing applications.  They come in a natural aluminum finish and feature 7/16" rod end heims for easy adjustment. Choose your desired length.
  • Available in 3.25", 3.75", 4.24", 4.75", 5.25" and 6" lengths
  • 7/16" rod end heims
Pro-Blend 1720 Anti-Seize Compound
(Part #91016009)


Apply Pro-Blend anti-seize directly to any metal surface that may gall or seize due to heat, pressure, torque loading or shock. Excellent in environments of gas, alcohol, water, solvents, dirt, sand, and grit.

  • Defies contact of dissimilar or like metals
  • Not affected by heat, moisture, salt water, or corrosion

Learn why using anti-seize is so important in our tech article, Installing New Hardware.
