Aluminum RH Female Heim Joint Rod Ends, 3/16 Inch

SAME DAY SHIPPING! Order within the next 16 hours 48 minutes and receive same day shipping

Specs
Material Type:
Aluminum
Color:
Clear
Finish:
Anodized
Hole Diameter:
0.1875
Thread Pitch:
10-32
Threads:
RH Female

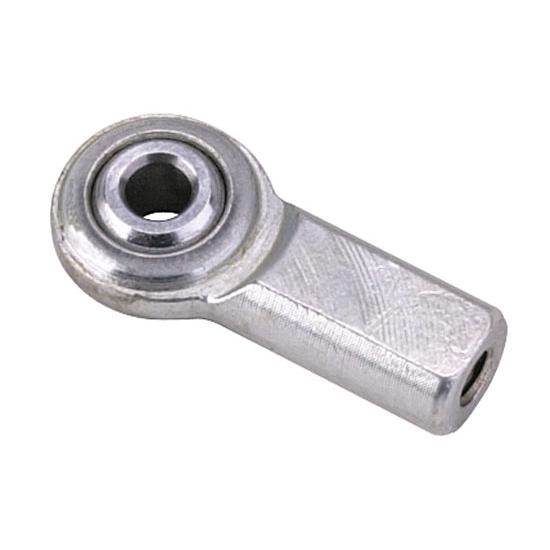

Aluminum RH Female Heim Joint Rod Ends, 3/16 Inch

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Aluminum rod ends have close tolerance, 3 piece, medium duty rod end.  Hard anodized 7075-T6 aerospace quality aluminum body.  Heat treated, 5210 precision ground ball, Kevlar race.  Self lubricating Teflon liner to seal out dirt an debris.

Applications: Designed for motorsports application where weight is critical.  All of the strength & features of the precision rod ends at half of the weight.

ASSEMBLY TIP:
  To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Customer Reviews

Rated 4.5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
1
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

porks37
Verified Purchaser
Wausau, WI, USA

worked perfectly for what I needed

August 21, 2014
I used them for my hood props on my 37 Chevy truck. I had a hard time finding something small enough to work. Good job having the right parts for me. Thanks Speedway.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

wgbmaine
Verified Purchaser
Jefferson, ME, USA

product was just as i wanted.

September 28, 2013
heim ends were in excellent condition when ii received them. I was able to polish them easily as there were no discernible defects or marks. good product.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

0 questions : 0 answers

No questions have been asked.
