This aluminum cross shaft is used for making adjustable A-arms. Measures 6" center to center holes. Old style, which registers on the inboard side of the A-arm mount tabs. Mounting holes on end for heims are 5/8".

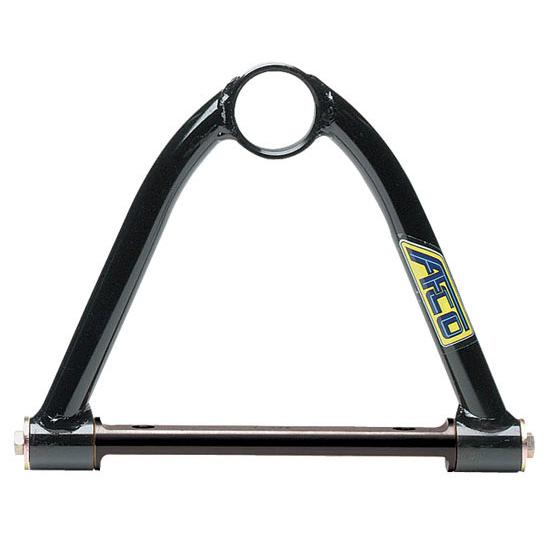

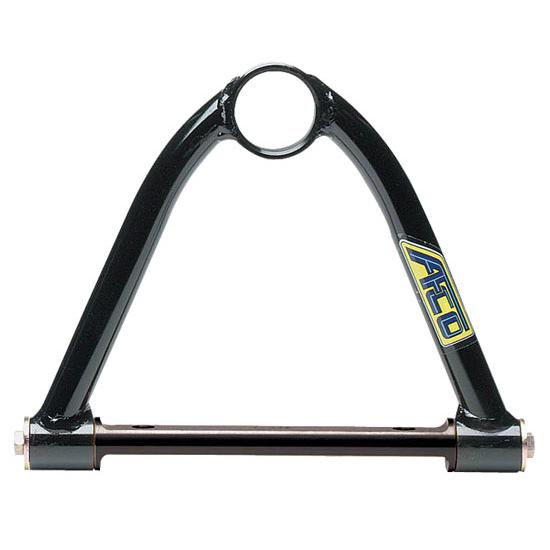

Strut type tubular upper control arm Made from .083" wall tubing (under 10") and .120" wall tubing (over 10") Cross shaft bushings clearanced to allow shrinkage during the welding process Cross shaft uses 9/16" holes on 6" center 3/16" thick ball joint plate provides maximum strength Accepts Moog K6024 or K6136 style bolt-in ball joints Length measured from cross shaft centerline to ball joint center Adjusting Camber (GIF)
AFCO's foundation was built on fabricating tubular control arms for the racing industry. Because they pay attention to the details and adhere to the strictest manufacturing tolerances, AFCO control arms have been the choice of professional racers and chassis-builders for over two decades. The quality of fabricated chassis components, such as tubular control arms, is not something to take lightly. As a structural member of the suspension, a failure of a control arm due to improper design or poor workmanship can causes serious consequences. Cross shaft bushings are clearanced to allow ...
Direct replacement for AFCO upper control arms 1/2" mounting holes, 6" on center Aluminum

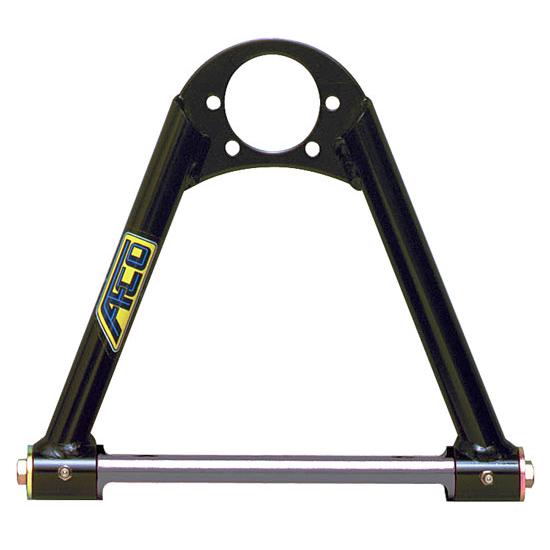

AFCO's foundation was built on fabricating tubular control arms for the racing industry. Because of their attention to detail and adherence to the strictist manufacturing tolerances, AFCO control arms have been the choice of professional racers and chassis builders for over two decades. These tubular control arms have a 10 degree angle built into the ball joint sleeve to allow for misalignment. Use with Moog K772 style ball joints. Lightweight aluminum cross shaft features 1/2" bolt holes with a center spacing of 6". Cross shaft bushings are clearanced to allow shrinkage during ...
AFCO's foundation was built on fabricating tubular control arms for the racing industry. Because of their attention to detail and adherence to the strictist manufacturing tolerances, AFCO control arms have been the choice of professional racers and chassis builders for over two decades. These tubular control arms have a 10 degree angle built into the ball joint sleeve to allow for misalignment. Use with Moog K772 style ball joints. Lightweight aluminum cross shaft features 1/2" bolt holes with a center spacing of 6". Cross shaft bushings are clearanced to allow ...
