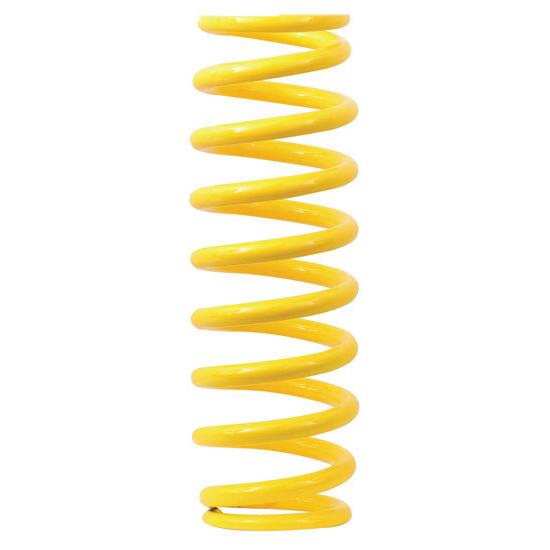

Garage Sale - AFCO XCS 2-5/8 I.D. Coil-Over Springs, 12 Inch

SAME DAY SHIPPING! Order within the next 3 hours 5 minutes and receive same day shipping

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Powder Coated
Color:
Yellow
Coil Spring End (A):
Square
Coil Spring End (B):
Square
Garage Sale:
Yes
Progressive Rate Spring:
No
Inside Diameter:
2.625
Free Height:
12.00
Spring Rate:
-
Garage Sale - AFCO XCS 2-5/8 I.D. Coil-Over Springs, 12 Inch

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

This is garage sale priced because it has been discontinued.

NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS



The AFCOIL XCS Series barrel springs are designed to eliminate the common problem of interference between the spring and the shock body. Increasing the diameter of the active coils has reduced both the slenderness ratio (spring length vs. diameter) and the potential stress levels of XCS springs compared to standard diameter coil-over springs.

As a result, XCS springs will not buckle under load and will provide more shock clearance than standard diameter coil-over springs. XCS series springs require no special mounting hardware and, in most cases, weigh the same or less than standard coil-over springs.

All AFCOILS carry a lifetime warranty to remain within 2% of the original nominal free height.

  • Reduces stress levels
  • Eliminates interference between coil and shock
  • Will not buckle under load
  • Replaces standard coil-over spring
  • 3" I.D. active coils
  • 2-5/8" I.D. end coils
