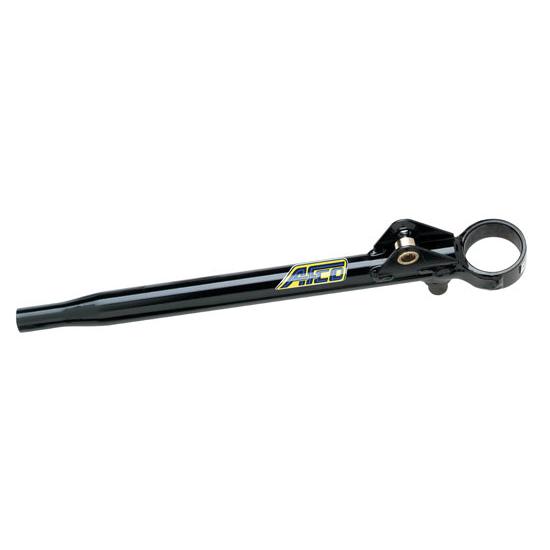

These stud type lowers are built to the same specs as all AFCO lowers, but are designed to use the solid rod end strut mount. 5/8" Rod end style. .109" wall DOM tubing Uses solid rod end mount AFCO P/N 10820 MIG-welded Jig-built
Made from .095" wall DOM tubing Rubber bushing included Uses standard 20051 strut bars Use Moog K727 style ball joints for screw-in and K6141 style of press-in
These stud type lowers are built to the same specs as all AFCO lowers, but are designed to use the solid rod end strut mount. This arm is an 18" center of heim to center of ball joint after adding jam nut and heim screwed 4 threads out. The length from the threaded end to the center of the ball joint mount is 16-3/4”. 18" c-c length. .109" wall DOM tubing Uses solid rod end mount AFCO P/N 10820 MIG-welded Jig-built 19 Inch Long
These stud type lowers are built to the same specs as all AFCO lowers, but are designed to use the solid rod end strut mount. This arm is an 18" center of heim to center of ball joint after adding jam nut and heim screwed 4 threads out. The length from the threaded end to the center of the ball joint mount is 16-3/4”. 18" c-c length. .109" wall DOM tubing Uses solid rod end mount AFCO P/N 10820 MIG-welded Jig-built 18 Inch Long
AFCO control arms are designed and constructed without compromise to provide consistent, predictable operation. With AFCO control arms installed, changes in spring rate, shock valve settings, tire pressure, etc. will be more predictable and measureable. These stud type lowers are built to the same specs as all AFCO lowers, but are designed to use the solid rod end strut mount. 3/4" rod end style arm .109" wall DOM tubing Jig-built MIG-welded Uses solid rod end mount Use Moog K6141 style press-in balljoint
AFCO control arms are designed and constructed without compromise to provide consistent, predictable operation. With AFCO control arms installed, changes in spring rate, shock valve settings, tire pressure, etc., will be more predictable and measureable. These stud type lowers are built to the same specs as all AFCO lowers, but are designed to use the solid rod end strut mount. 3/4" rod end style arm .109" wall DOM tubing Jig-built Uses solid rod end mount MIG-welded Use K727 style ball joints
These stud type lowers are built to the same specs as all AFCO lowers but are designed to use the solid rod end strut mount. 5/8" Rod end style..109" wall DOM tubingUses solid rod end mount AFCO P/N 10820MIG-weldedJig-built
These stud type lowers are built to the same specs as all AFCO lowers but are designed to use the solid rod end strut mount..109" wall DOM tubingUses solid rod end mount AFCO P/N 10820MIG-weldedJig-built18 Inch Long
Made from .095" wall DOM tubingRubber bushing includedUses standard 20051 strut barsUse Moog K727 style ball joints for screw-in and K6141 style of press-in
AFCO control arms are designed and constructed without compromise to provide consistent predictable operation.With AFCO control arms installed changes in spring rate shock valve settings tire pressure etc. will be more predictable and measureable.These stud type lowers are built to the same specs as all AFCO lowers but are designed to use the solid rod end strut mount.3/4" rod end style arm.109" wall DOM tubingJig-builtMIG-weldedUses solid rod end mountUse MoogK6141 style press-in balljoint
AFCO control arms are designed and constructed without compromise to provide consistent predictable operation. With AFCO control arms installed changes in spring rate shock valve settings tire pressure etc. will be more predictable and measureable.These stud type lowers are built to the same specs as all AFCO lowers but are designed to use the solid rod end strut mount.3/4" rod end style arm.109" wall DOM tubingJig-builtUses solid rod end mountMIG-weldedUse K727 style ball joints
.109" Wall DOM TubingSwaged for 5/8" rod endUses standard 20051 strut bars
AFCO control arms are designed and constructed without compromise to provide consistent predictable operation. With AFCO control arms installed changes in spring rate shock valve settings tire pressure etc. will be more predictable and measureable.Made from .095" wall DOM tubingRubber bushing includedUses standard 20051 strut barsUse Moog K727 style ball joints for screw-in and K6141 style of press-inUse K6141 style press-in ball joints.Rubber Bushings.
These stud type lowers are built to the same specs as all AFCO lowers but are designed to use the solid rod end strut mount. This arm is an 18" center of heim to center of ball joint after adding jam nut and heim screwed 4 threads out. The length from the threaded end to the center of the ball joint mount is 16-3/4”. 18" c-c length..109" wall DOM tubingUses solid rod end mount AFCO P/N 10820MIG-weldedJig-built19 Inch Long
Made from .095" wall DOM tubingRubber bushing includedUses standard 20051 strut bars Use Moog K727 style ball joints for screw-in and K6141 style of press-in
