AFCO 80182 HD Six Blade Cooling Fan, 15 Inch Steel

SAME DAY SHIPPING! Order within the next 9 hours 32 minutes and receive same day shipping

Specs
Material Type:
Steel
Weight:
3.95
Sold in Quantity:
Each
Finish:
Powder Coated
Shaft Diameter:
.63
Slot Length:
.63
Slot Width:
.35
Blade Count:
6
Reversable:
No
Depth:
2.00
MFG. Part #:
80182
Rotation:
Clockwise
Fan Diameter:
15.00
Cooling Fan Operation:
Pull
Garage Sale:
No
Cooling Fan Type:
Mechanical
Notes
.63" depth from water pump mount towards engine, 1.50" depth from water pump mount towards radiator. 8000 RPM max fan speed.

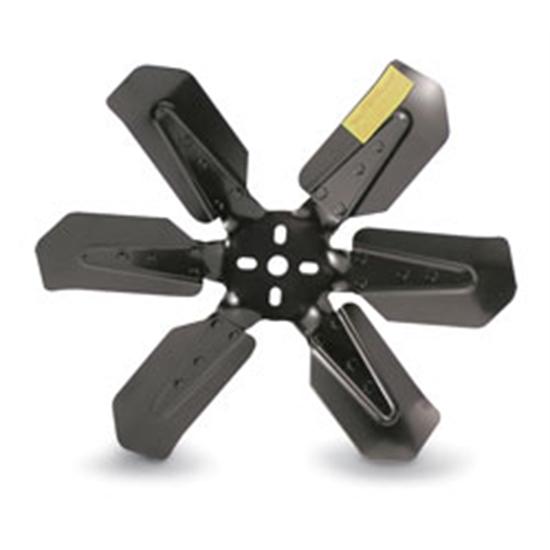

AFCO 80182 HD Six Blade Cooling Fan, 15 Inch Steel

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

AFCO HD cooling fans with lightweight steel hubs and blades.

  • 33 degree pitch
  • Dual bolt pattern to fit most pumps

Learn more about the importance of using a fan and shroud with our radiators by reading our tech article. Radiator Cooling Performance.

Customer Reviews

Rated 5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

A 29 rat
Verified Purchaser
Verified Reviewer
Kellogg

Cool fan

May 25, 2015
I used it on my 29 rat rod it worked great
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Slayer25
Verified Purchaser
Menomonie wi

Excellent craftsmanship

May 29, 2014
I have always run a 4 blade fan. I've also always run a 2 barrel type race car on gas meaning that the hot humid days/nights can make it difficult to keep the motor cool. I was advised to try a 6 blade fan and so far it is helping me out. I'm looking forward to seeing how it works on those dog day nights coming up.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 3 answers

1 answers

about how many cfm does this fan have i got 15" flex fan on now and still get hot ideling thank you street rod

desotoman1
pleasantville ia
October 02, 2014

about how many cfm does this fan have i got 15" flex fan on now and still get hot ideling thank you street rod

Answers

October 02, 2014
EricM
There is not a CFM rating on this fan but it will certainly pull more than a flex fan however. If a 15" fan is the largest that will fit then this fan will be your best bet for getting more airflow.
1 answers

Will this fan fit in a stock 235 six cylinder, 1954 Bel Air without hitting the radiator or crank pulley? Or can it be modified to fit? No accessories, plain stock. I built a fan shroud and it increased the cooling by about 75%. But it will still try to heat up if I'm idling for more than 10 minutes. The stock fan is 15 1/2" I think, don't have a clue what the pitch degree is.

Beachbum
Louisiana, USA
July 25, 2014

Will this fan fit in a stock 235 six cylinder, 1954 Bel Air without hitting the radiator or crank pulley? Or can it be modified to fit? No accessories, plain stock. I built a fan shroud and it increased the cooling by about 75%. But it will still try to heat up if I'm idling for more than 10 minutes. The stock fan is 15 1/2" I think, don't have a clue what the pitch degree is.

Answers

July 28, 2014
Travisp
As long as your fan hub on the pump has the 5/8” diameter pilot this fan should move way more air than the stock fan. The slotted mount holes for the four bolt mount make the fan work on almost any application. Make sure your fan blade is designed for Clockwise rotation.
1 answers

What color is the aluminum fan?

Dallas, Tx
April 24, 2011

What color is the aluminum fan?

Answers

April 26, 2011
Tech Support
The aluminum fans are also black.
Page 1 of 1
