AFCO DirectFit Radiators - Chevy Fullsize 1967-88

SAME DAY SHIPPING! Order within the next 15 hours 4 minutes and receive same day shipping

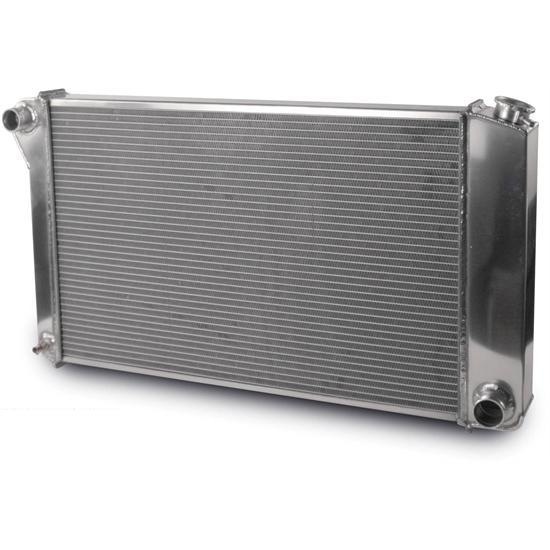

AFCO DirectFit Radiators - Chevy Fullsize 1967-88

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

AFCO's Direct Fit Aluminum radiators will bolt directly into your Chevrolet Fullsize with no hassles. AFCO ensures that the bolt holes will line up, cooling lines are in the proper locations, and OEM fan shrouds and accessories bolt up with ease. Plus, with two rows of 1" cores perfectly matched to the application, this unit has the capacity to cool both Small Blocks and Big Blocks (even with a power adder!).

Chevrolet A-Body with S/B or B/B V8

  • 1970-77 Chevy Monte Carlo
  • 1968-77 Chevy Chevelle/Malibu
106-80253N:
  • 1969-73 Buick V8 Skylark/GS/GSX (GM A-Body)
  • 1973-77 Buick V8 Regal (GM A-Body)
106-80255N:
  • 1975-79 Buick V8 Skylark (GM X-Body)
106-80258N:
  • 1978-87 Buick V8 Regal (GM G-Body)
106-80253N
  • '71-'79 Impala/Caprice V-8 OEM 28-3/8" core
  • '71-'74 Bel Air/Biscayne V-8 OEM 28-3/8" core
106-80258N
  • '80-'86 Impala/Caprice V-8 OEM 28-3/8" core

106-80253N:

  • 1967-77 Oldsmobile V8 Cutlass/442/Hurst Olds
  • 1971-76 Oldsmobile V8 Custom Cruiser

106-80258N:

  • 1978-88 Oldsmobile V8 Cutlass/442/Hurst Olds



Features

  • 100% Aluminum construction (no epoxy)
  • Furnace Brazed Core - 2 rows of 1" tubes
  • Tanks are made of .080” 3003 aluminum for strength and durability
  • TIG welded by skilled craftsmen in the USA
  • Factory fan shroud provisions
  • Inlet/Outlet in factory locations
  • Billet filler necks feature screw-in bleed – won't crack or leak with age

Specs

  • 106-80253N
    • Inlet Diameter:  1.5" O.D.
    • Outlet Diameter:  1.75" O.D.
  • 106-80258N
    • Inlet Diameter:  1.25" O.D.
    • Outlet Diameter:  1.5" O.D.
  • Brass Drain Cock Fitting:  1/4" NPT (included)
  • Transmission Cooler Ports:  1/4" NPT
  • Filler Neck Hose Barb:  1/8" Straight (included)

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

will it work for a manual tranny

Sondog1961
Rugby, N.D.
March 25, 2011

will it work for a manual tranny

Answers

March 28, 2011
Jeremy O
Yes, this will work for a manual transmission.
Page 1 of 1
