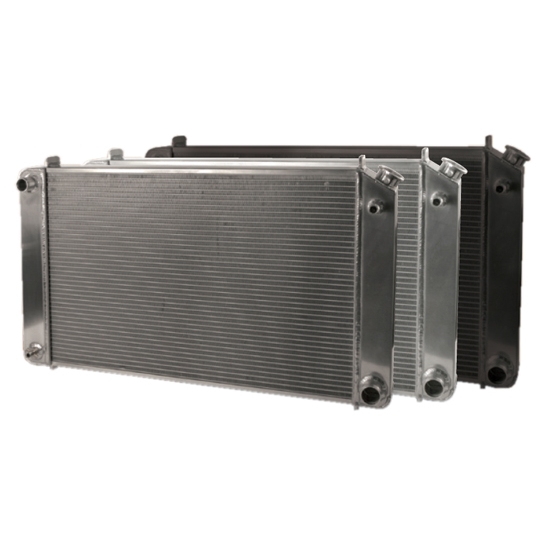

AFCO 1973-91 GM Pickup LS Swap Aluminum Radiators

Price: $371.99 - $1,234.99
Sale: $249.99 - $1,234.99
Item #:
10684242
Item Details:
*Please see Notes tab for index abbreviations.*
AFCO 1973-91 GM Pickup LS Swap Aluminum Radiators
Click image to enlarge Click image to enlarge
  • AFCO 1973-91 GM Pickup LS Swap Aluminum Radiators
  • AFCO 1973-91 GM Pickup LS Swap Aluminum Radiators
  • AFCO 1973-91 GM Pickup LS Swap Aluminum Radiators
No video at this time.


These LS conversion radiators are built with the correct inlet and outlet required for the engine swap. They are 100% TIG welded, 100% pressure tested and use no epoxy or sealers. These double pass radiators were designed for the rigors of racing, but we added the mounts to allow their superior design on the street. After all, there are more important things to be doing than installing your radiator - like enjoying your truck on the road!

  • Uses the same tools to install your new radiator as you did to remove the old one
  • Factory fan shroud provisions on many models
  • Drain plugs included
  • Billet filler neck offers strength and higher quality appearance over stamped
  • TIG welded by skilled craftsmen in the USA
  • Inlets and outlets are positioned correctly for ease of flow

Instructions (PDF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

  • 10684242-S-DS-Y
    Overall Width
    34.190"
    Overall Height
    20.630"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Transmission Cooler
    Yes
    Shroud
    Yes
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10684242-P-DS-Y
    Overall Width
    34.190"
    Overall Height
    20.600"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Transmission Cooler
    Yes
    Shroud
    Yes
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10684242-S-DP-Y
    Overall Width
    34.190"
    Overall Height
    20.630"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Transmission Cooler
    Yes
    Shroud
    Yes
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10684242-B-SS-Y
    Overall Width
    34.190"
    Overall Height
    20.630"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Shroud
    Yes
    Transmission Cooler
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10684242-B-DS-Y
    Overall Width
    34.190"
    Overall Height
    20.630"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Shroud
    Yes
    Transmission Cooler
    Yes
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10684242-P-SB-Y
    Overall Width
    34.190"
    Overall Height
    20.600"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Transmission Cooler
    Yes
    Shroud
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10684242-P-DB-N
    Overall Width
    34.190"
    Overall Height
    20.600"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    Yes
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10684242-P-SS-Y
    Overall Width
    34.190"
    Overall Height
    20.600"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Transmission Cooler
    Yes
    Shroud
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10684242-B-SP-Y
    Overall Width
    34.190"
    Overall Height
    20.630"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Shroud
    Yes
    Transmission Cooler
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10684242-P-SP-Y
    Overall Width
    34.190"
    Overall Height
    20.600"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Transmission Cooler
    Yes
    Shroud
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10684242-B-DP-N
    Overall Width
    34.190"
    Overall Height
    20.630"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Shroud
    Yes
    Transmission Cooler
    No
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10684242-S-SB-N
    Overall Width
    34.190"
    Overall Height
    20.630"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10684242-S-DB-Y
    Overall Width
    34.190"
    Overall Height
    20.630"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Transmission Cooler
    Yes
    Shroud
    Yes
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10684242-P-NA-N
    Overall Width
    34.190"
    Overall Height
    20.600"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    No
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10684242-S-SS-N
    Overall Width
    34.190"
    Overall Height
    20.630"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10684242-B-SB-N
    Overall Width
    34.190"
    Overall Height
    20.630"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Shroud
    Yes
    Transmission Cooler
    No
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10684242-S-DP-N
    Overall Width
    34.190"
    Overall Height
    20.630"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    Yes
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10684242-P-DS-N
    Overall Width
    34.190"
    Overall Height
    20.600"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    Yes
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10684242-B-SS-N
    Overall Width
    34.190"
    Overall Height
    20.630"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Shroud
    Yes
    Transmission Cooler
    No
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10684242-B-DP-Y
    Overall Width
    34.190"
    Overall Height
    20.630"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Shroud
    Yes
    Transmission Cooler
    Yes
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10684242-S-NA-N
    Overall Width
    34.190"
    Overall Height
    20.630"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    No
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10684242-B-NA-Y
    Overall Width
    34.190"
    Overall Height
    20.630"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Shroud
    No
    Transmission Cooler
    Yes
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10684242-B-SB-Y
    Overall Width
    34.190"
    Overall Height
    20.630"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Shroud
    Yes
    Transmission Cooler
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10684242-B-DB-N
    Overall Width
    34.190"
    Overall Height
    20.630"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Shroud
    Yes
    Transmission Cooler
    No
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10684242-B-DB-Y
    Overall Width
    34.190"
    Overall Height
    20.630"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Shroud
    Yes
    Transmission Cooler
    Yes
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10684242-B-DS-N
    Overall Width
    34.190"
    Overall Height
    20.630"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Shroud
    Yes
    Transmission Cooler
    No
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10684242-B-NA-N
    Overall Width
    34.190"
    Overall Height
    20.630"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Shroud
    No
    Transmission Cooler
    No
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10684242-B-SP-N
    Overall Width
    34.190"
    Overall Height
    20.630"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Shroud
    Yes
    Transmission Cooler
    No
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10684242-P-DB-Y
    Overall Width
    34.190"
    Overall Height
    20.600"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Transmission Cooler
    Yes
    Shroud
    Yes
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10684242-P-DP-N
    Overall Width
    34.190"
    Overall Height
    20.600"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    Yes
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10684242-P-DP-Y
    Overall Width
    34.190"
    Overall Height
    20.600"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Transmission Cooler
    Yes
    Shroud
    Yes
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10684242-P-NA-Y
    Overall Width
    34.190"
    Overall Height
    20.600"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Transmission Cooler
    Yes
    Shroud
    No
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10684242-P-SB-N
    Overall Width
    34.190"
    Overall Height
    20.600"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10684242-P-SP-N
    Overall Width
    34.190"
    Overall Height
    20.600"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10684242-P-SS-N
    Overall Width
    34.190"
    Overall Height
    20.600"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10684242-S-DB-N
    Overall Width
    34.190"
    Overall Height
    20.630"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    Yes
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10684242-S-DS-N
    Overall Width
    34.190"
    Overall Height
    20.630"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    Yes
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10684242-S-NA-Y
    Overall Width
    34.190"
    Overall Height
    20.630"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Transmission Cooler
    Yes
    Shroud
    No
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10684242-S-SB-Y
    Overall Width
    34.190"
    Overall Height
    20.630"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Transmission Cooler
    Yes
    Shroud
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10684242-S-SP-N
    Overall Width
    34.190"
    Overall Height
    20.630"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10684242-S-SP-Y
    Overall Width
    34.190"
    Overall Height
    20.630"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Transmission Cooler
    Yes
    Shroud
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10684242-S-SS-Y
    Overall Width
    34.190"
    Overall Height
    20.630"
    Overall Thickness
    3.000"
    Core Width
    28.380"
    Core Height
    19.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Outlet Location
    Lower Right
    Inlet Size
    1.380"
    Outlet Size
    1.380"
    Tube Size
    1.000"
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Dual
    Transmission Cooler
    Yes
    Shroud
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10684242-F-DB-N
    MFG. Part #
    84242-F-DB-N
    Overall Width
    28.250" (28 1/4")
    Overall Height
    19.000"
    Overall Thickness
    3.750" (3 3/4")
    Depth
    0.750" (3/4")
    Cooling Fan
    Double
    Hole Diameter
    14.000"
    Material Thickness
    0.080"
    Material Type
    Aluminum
    Finish
    Painted Black
    Hardware Included
    Yes
    Sold in Quantity
    Each
    Notes
    Includes fans. For AFCO radiator w/o trans cooler.
  • 10684242-F-DB-Y
    MFG. Part #
    84242-F-DB-Y
    Overall Width
    28.250" (28 1/4")
    Overall Height
    19.000"
    Overall Thickness
    3.750" (3 3/4")
    Depth
    0.750" (3/4")
    Cooling Fan
    Double
    Hole Diameter
    14.000"
    Material Thickness
    0.080"
    Material Type
    Aluminum
    Finish
    Painted Black
    Hardware Included
    Yes
    Sold in Quantity
    Each
    Notes
    Includes fans. For AFCO radiator with trans cooler.
  • 10684242-F-DP-N
    MFG. Part #
    84242-F-DP-N
    Overall Width
    28.250" (28 1/4")
    Overall Height
    19.000"
    Overall Thickness
    3.750" (3 3/4")
    Depth
    0.750" (3/4")
    Cooling Fan
    Double
    Hole Diameter
    14.000"
    Material Thickness
    0.080"
    Material Type
    Aluminum
    Finish
    Polished
    Hardware Included
    Yes
    Sold in Quantity
    Each
    Notes
    Includes fans. For AFCO radiator w/o trans cooler.
  • 10684242-F-DP-Y
    MFG. Part #
    84242-F-DP-Y
    Overall Width
    28.250" (28 1/4")
    Overall Height
    19.000"
    Overall Thickness
    3.750" (3 3/4")
    Depth
    0.750" (3/4")
    Cooling Fan
    Double
    Hole Diameter
    14.000"
    Material Thickness
    0.080"
    Material Type
    Aluminum
    Finish
    Polished
    Hardware Included
    Yes
    Sold in Quantity
    Each
    Notes
    Includes fans. For AFCO radiator with trans cooler.
  • 10684242-F-DS-N
    MFG. Part #
    84242-F-DS-N
    Overall Width
    28.250" (28 1/4")
    Overall Height
    19.000"
    Overall Thickness
    3.750" (3 3/4")
    Depth
    0.750" (3/4")
    Cooling Fan
    Double
    Hole Diameter
    14.000"
    Material Thickness
    0.080"
    Material Type
    Aluminum
    Finish
    Satin
    Hardware Included
    Yes
    Sold in Quantity
    Each
    Notes
    Includes fans. For AFCO radiator w/o trans cooler.
  • 10684242-F-DS-Y
    MFG. Part #
    84242-F-DS-Y
    Overall Width
    28.250" (28 1/4")
    Overall Height
    19.000"
    Overall Thickness
    3.750" (3 3/4")
    Depth
    0.750" (3/4")
    Cooling Fan
    Double
    Hole Diameter
    14.000"
    Material Thickness
    0.080"
    Material Type
    Aluminum
    Finish
    Satin
    Hardware Included
    Yes
    Sold in Quantity
    Each
    Notes
    Includes fans. For AFCO radiator with trans cooler.
  • 10684242-F-SB-N
    MFG. Part #
    84242-F-SB-N
    Overall Width
    28.250" (28 1/4")
    Overall Height
    19.000"
    Overall Thickness
    4.000"
    Depth
    0.750" (3/4")
    Cooling Fan
    Single
    Hole Diameter
    16.000"
    Material Thickness
    0.080"
    Material Type
    Aluminum
    Finish
    Painted Black
    Hardware Included
    Yes
    Sold in Quantity
    Each
    Notes
    Includes fan. For AFCO radiator w/o trans cooler.
  • 10684242-F-SB-Y
    MFG. Part #
    84242-F-SB-Y
    Overall Width
    28.250" (28 1/4")
    Overall Height
    19.000"
    Overall Thickness
    4.000"
    Depth
    0.750" (3/4")
    Cooling Fan
    Single
    Hole Diameter
    16.000"
    Material Thickness
    0.080"
    Material Type
    Aluminum
    Finish
    Painted Black
    Hardware Included
    Yes
    Sold in Quantity
    Each
    Notes
    Includes fan. For AFCO radiator with trans cooler.
  • 10684242-F-SP-N
    MFG. Part #
    84242-F-SP-N
    Overall Width
    28.250" (28 1/4")
    Overall Height
    19.000"
    Overall Thickness
    4.000"
    Depth
    0.750" (3/4")
    Cooling Fan
    Single
    Hole Diameter
    16.000"
    Material Thickness
    0.080"
    Material Type
    Aluminum
    Finish
    Polished
    Hardware Included
    Yes
    Sold in Quantity
    Each
    Notes
    Includes fan. For AFCO radiator w/o trans cooler.
  • 10684242-F-SP-Y
    MFG. Part #
    84242-F-SP-Y
    Overall Width
    28.250" (28 1/4")
    Overall Height
    19.000"
    Overall Thickness
    4.000"
    Depth
    0.750" (3/4")
    Cooling Fan
    Single
    Hole Diameter
    16.000"
    Material Thickness
    0.080"
    Material Type
    Aluminum
    Finish
    Polished
    Hardware Included
    Yes
    Sold in Quantity
    Each
    Notes
    Includes fan. For AFCO radiator with trans cooler.
  • 10684242-F-SS-N
    MFG. Part #
    84242-F-SS-N
    Overall Width
    28.250" (28 1/4")
    Overall Height
    19.000"
    Overall Thickness
    4.000"
    Depth
    0.750" (3/4")
    Cooling Fan
    Single
    Hole Diameter
    16.000"
    Material Thickness
    0.080"
    Material Type
    Aluminum
    Finish
    Satin
    Hardware Included
    Yes
    Sold in Quantity
    Each
    Notes
    Includes fan. For AFCO radiator w/o trans cooler.
  • 10684242-F-SS-Y
    MFG. Part #
    84242-F-SS-Y
    Overall Width
    28.250" (28 1/4")
    Overall Height
    19.000"
    Overall Thickness
    4.000"
    Depth
    0.750" (3/4")
    Cooling Fan
    Single
    Hole Diameter
    16.000"
    Material Thickness
    0.080"
    Material Type
    Aluminum
    Finish
    Satin
    Hardware Included
    Yes
    Sold in Quantity
    Each
    Notes
    Includes fan. For AFCO radiator with trans cooler.
When selecting Finish and Fan Shroud Finish, here are the abbreviations:

Finish

    S = Satin
    B = Black
    P = Polished
    F = Fan & shroud only

Fan Shroud Finish

    NA = No Fan and Shroud
    SS = Single Fan, Satin
    SP = Single Fan, Polished
    SB = Single Fan, Black
    DS = Dual Fan, Satin
    DP = Dual Fan, Polished
    DB = Dual Fan, Black
Email this page
Close [x]
You can send this product by email to a friend!
Enter the required information in the spaces provided below. They will receive an Email with the picture of this product and a link back to our site.
Your Name:
Your Email:
Friends Name:
Friends Email:
Print Page
You May Also Be Interested In...
  • AFCO Direct Fit 1973-91 GM Pickup Aluminum Radiators
    AFCO Direct Fit 1973-91 GM Pickup Aluminum Radiators
    Price: $371.99 - $1,234.99
    Sale Price: $249.99 - $1,234.99
    Up to $122.00 off
    More Info
    AFCO Direct Fit 1973-91 GM Pickup Aluminum Radiators
    x



    Cooling your 2WD or 4WD truck is made easy with an AFCO Direct Fit aluminum radiator. The 28" core provides more surface area and cooling capacity than the competition. Plus, this radiator is a bolt-in fit allowing the use of factory mounts and shrouds making installation a breeze. Fits 1973-1987 pickup trucks and 1973-1991 Blazer/Suburban with factory OEM 28.38" x 19.5" core. (All full-size 1/2-ton, 3/4-ton and 1-ton truck chassis).
    • Built-in mounting brackets w/ pre-drilled holes
    • Factory fan shroud provisions
    • Inlets and outlets are factory-style and in stock locations
    • Billet filler neck offers strength and higher quality appearance over stamped
    • Inlets and outlets are positioned correctly for ease of flow
    • 100% aluminum construction (no epoxy)
    • Furnace brazed core - 2 rows of 1" tubes
    • TIG welded by skilled craftsmen in the USA
    1973-91 GM Pickup Radiator Installation Instructions (PDF)
    Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.
