Aeroquip FBM1101 Straight High Pressure -4 AN TFE Hose End

SAME DAY SHIPPING! Order within the next 13 hours 48 minutes and receive same day shipping

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Zinc
Angle:
Straight
Fitting End A:
-4 AN
MFG. Part #:
FBM1101
Garage Sale:
No

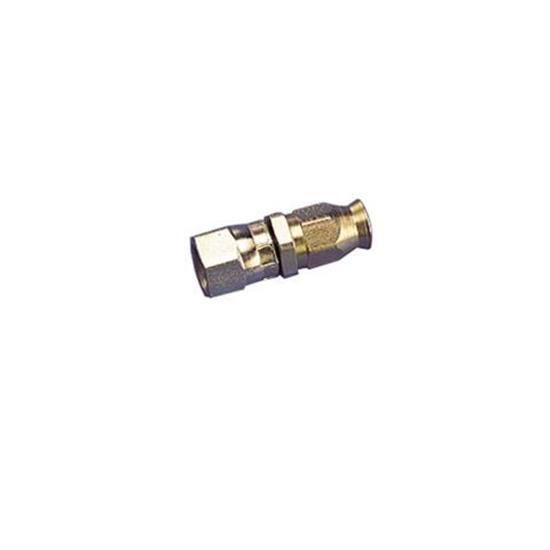

Aeroquip FBM1101 Straight High Pressure -4 AN TFE Hose End

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Designed for high pressure brake and power steering systems. When assembled, you have a quality hose assembly that can handle up to 3000 psi.

Works only with TFE stainless braided high pressure hose.

Hose End Application Chart (GIF)

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

83Will40
Verified Purchaser

Quality product

March 31, 2015
This fitting is high quality and instaleed and fit well.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

1 questions : 3 answers

3 answers

Do you need a special tool or press? How does the fitting connect to the braided high pressure hose to handle 3000 psi.

dcss
Massachusetts, USA
December 09, 2014

Do you need a special tool or press? How does the fitting connect to the braided high pressure hose to handle 3000 psi.

Answers

April 01, 2015
83Will40
No tools needed, but you need to trim back the braid about a 1/4" in order to put the farrel on the innner line. It's a press fit to start so you need a vise to hold the fitting.
February 03, 2015
Alan65
This is a two piece "reusable" AN fitting, as is any true AN hose fitting. Its really rather simple once you see it in person. The picture shows it assembled, or screwed together. To assemble the fitting to the hose, you unscrew the collar off the flare nut end of the fitting, exposing a tapered sleeve that the tubing, either teflon or rubber, is pushed up onto, expanding the tubing slightly. Then the collar is slid over the tubing and screwed back on to the flare nut end of the fitting, trapping the tubing inside and compressing it against that tapered sleeve, sealing and capturing it firmly. Good enough for space craft... Once you see it, it becomes easy to understand, and pretty ingenious how some military guy came up with a system where any soldier can repair a high pressure hose in the field with nothing more than a hack saw and a couple crescent wrenches. Thats where the term 'AN' ( army-navy) comes from.
December 09, 2014
EricM
This hose end must be used with TFE hose such as 6173070. It is a screw together assembly and only requires wrenches to assemble (a vise makes assembly easier in order to hold the hose end in place but not required). There is a brass ferrule (sometimes called an olive) that will be placed over the TFE liner but under the stainless braid on the hose. Then when tightening the assembly together it will crimp that ferrule down to provide the high pressure compatible connection.
