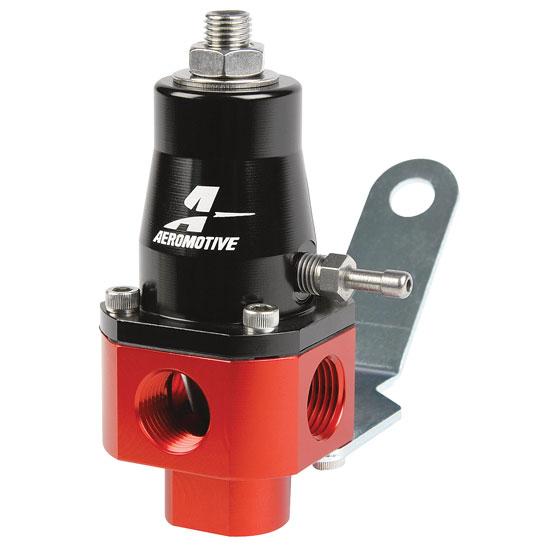

Aeromotive 13301 Bypass Fuel Pressure Regulator, 3-60 PSI
Click image to enlarge
Q & A
What's in the Box
A dual purpose, universal fuel pressure regulator for EFI or carbureted applications. Base fuel pressure is adjustable from 3 to 20 PSI with standard spring(installed), or from 20 to 60 PSI with high pressure spring (included). Also acts as a rising rate fuel pressue regulator which raises pressure on a 1:1 ratio with boost. All ports are 3/8" NPT, with one inlet and three outlets on the main body and one return port on the bottom. Bypass fuel pressure regualtor design provides the ultimate, dynamic fuel pressure control.
- Gasoline compatible only
- Can regulate any fuel pump between 100 and 250 GPH
- Fuel pressure rises on a 1:1 ratio when referencing boost
- All ports are 3/8” NPT, with one inlet and three outlets on the main body and one return port on the bottom
- Bypass design provides the ultimate, dynamic fuel pressure control
910-12804 Instructions (PDF)
Note: Requires a return line to be installed from the bottom of the regulator to the top of the tank.
