World Sportsman II Small Block Chevy Iron Heads, Angle Plug

SAME DAY SHIPPING! Order within the next 6 hours 22 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Sold in Quantity:
Pair
Finish:
Natural
Cylinder Head Style:
-
Spark Plug Style:
Angle
Port Style:
Square Port
Material Type:
Cast Iron
Combustion Chamber:
64cc
Intake Runners:
200cc
Exhaust Runners:
69cc
Intake Valve Diameter:
2.02
Exhaust Valve Diameter:
1.60

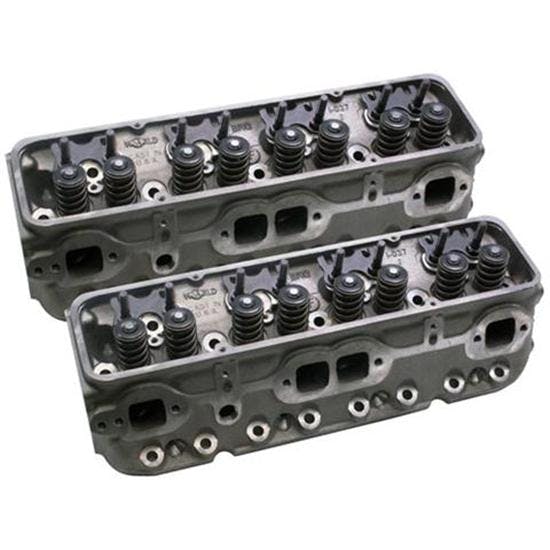

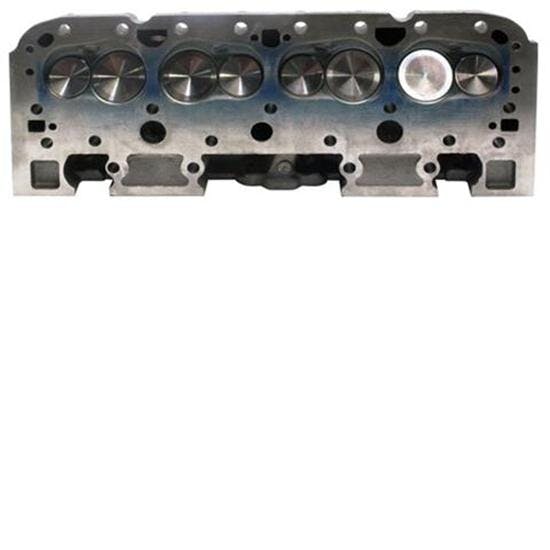

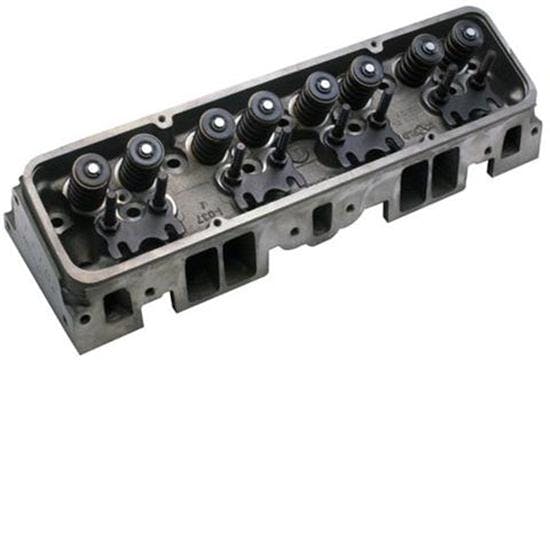

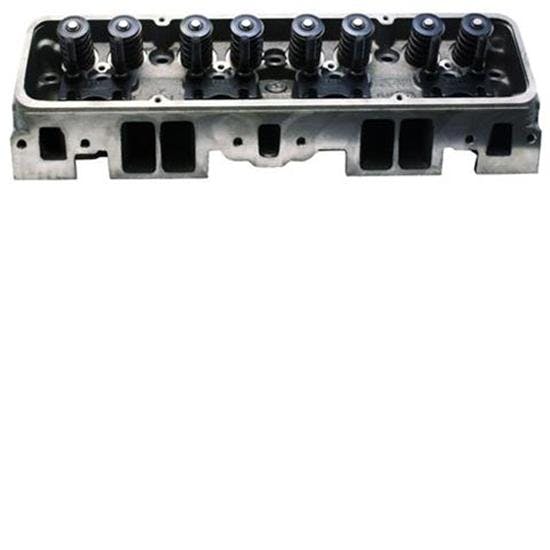

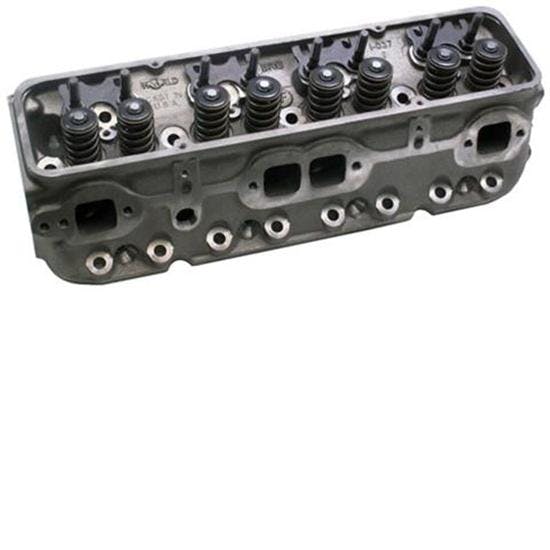

World Sportsman II Small Block Chevy Iron Heads, Angle Plug
World Sportsman II Small Block Chevy Iron Heads, Angle Plug
World Sportsman II Small Block Chevy Iron Heads, Angle Plug
World Sportsman II Small Block Chevy Iron Heads, Angle Plug
World Sportsman II Small Block Chevy Iron Heads, Angle Plug
World Sportsman II Small Block Chevy Iron Heads, Angle Plug

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

The industry’s most popular true high performance cast iron cylinder head has been continuously improved since its introduction over 20 years ago. With 200cc intake and 69cc exhaust ports, World’s Sportsman II cylinder heads offer 30-70 horsepower gains over OEM cast iron heads, yet are 50-state emissions legal.

  • Bolt on from 30 to 70 additional H.P. (Dyno Proven)
  • Combustion chambers available in 64cc
  • Available with either angle, or straight spark plugs
  • 200cc intake runners
  • Fully machined rocker cover rails
  • Higher, wider, raised roof intake runner with improved short turn radius

Sportsman II Application Chart (GIF)

824-1112 Instructions (PDF)

Please specify cam lift in comments section when ordering heads.

Assembled heads are built to order.

Item Details

Angle Plug, 64cc Chambers
Wissota Approved #1115

Notes

  1. Recommended spark plug is a 14mm-5/8", .460" reach with a tapered seat.
  2. Head Flow @ .600 Lift
    245 intake, 165 exhaust (Super Flow 1050)
    260 intake, 176 exhaust (Super Flow 600)
    All heads flowed with a standard .750" intake plate, without exhaust tube, and 28" of water.

Specs

  • Casting ID Number: I-037
  • Material: High density cast iron
  • Valve Seats: Intake (integral), exhaust (hardened)
  • Valve Guides: Integral cast iron
  • Spring Seats: Machined for 1.560" and 1.250"
  • Valve Diameter: 2.020"" intake, 1.600" exhaust (11/32" stem)
  • Rocker Arm Studs: Screw-in style
  • Rocker Arms: 1.5 ratio (use of 1.6 ratio will require elongation of pushrod holes)
  • Intake Runner: 200cc, standard port location
  • Exhaust Ports: 69cc, standard location
  • Combustion Chamber: 64cc, straight or angled plug orientation
  • Spark Plug: 14mm 5/8" .460" reach tapered style
  • Valve Job: Multi-angle intake and radiused exhaust
  • Valve Cover Rail: Raised w/ perimeter and center bolt pattern
  • Valve Angle: Stock 23°
  • Accessory Bolt Holes: Stock

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

stealthy
Verified Purchaser
Verified Reviewer
Bad Axe,MI

best purchase so far

August 18, 2015
These are a great out of the box bolt on horsepower, with lots of room for improvement! Also have a set of world s/r heads. I ha e been very pleased with world product heads!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

6 questions : 6 answers

1 answers

Header Gaskets For Sportsman II SB chevy heads What Exhaust Diameter Header gasket do I use on Sportsman ll head chevy SB With Headman Headers 1.35 , 1.50, 1.55, or 1.70, Street strip car

777777777tony
Myrtle Beach, SC, USA
February 16, 2015

Header Gaskets For Sportsman II SB chevy heads What Exhaust Diameter Header gasket do I use on Sportsman ll head chevy SB With Headman Headers 1.35 , 1.50, 1.55, or 1.70, Street strip car

Answers

February 17, 2015
EricM
We suggest gaskets 91013510, 3441406 or 91701510 for these cylinder heads.
1 answers

Will the rocker arm studs for the FLAT option accept a roller rocker arm? If not, can they be an option when ordered?

TXSpeedracer
Tx
December 31, 2014

Will the rocker arm studs for the FLAT option accept a roller rocker arm? If not, can they be an option when ordered?

Answers

December 31, 2014
EricM
The -FLAT assembled heads have 3/8" screw in rocker studs and they can be used with roller rocker arms.
1 answers

Valve material type, Stainless Steel or other?

TXSpeedracer
Tx
December 30, 2014

Valve material type, Stainless Steel or other?

Answers

December 30, 2014
EricM
The assembled heads have stainless steel valves. The bare heads do not come with valves.
1 answers

Difference race/flat/strt Can you please tell me the differences between the race/flat/strt versions of these heads? Also the lead time on the race version please.

Trace
AZ
October 29, 2014

Difference race/flat/strt Can you please tell me the differences between the race/flat/strt versions of these heads? Also the lead time on the race version please.

Answers

October 29, 2014
EricM
STRT has 2.02/1.6 valves, 3/8" rocker studs, and 1.250" OD valve springs for a hydraulic flat tappet camshaft. FLAT has 2.02/1.6 valves, 3/8" rocker studs, and 1.465" OD valve springs for a solid flat tappet camshaft. RACE has 2.055/1.6 valves, 7/16" rocker studs, and 1.550" OD valve spring for a solid roller camshaft. We will need to know the lift of your camshaft when ordering these. The RACE assembled heads will also take 1 to 2 business days before they will be shipped.
1 answers

does this head require an offsett rocker arm for the roller cam version ? if so what is it ?

sonny
pennsylvania
April 25, 2011

does this head require an offsett rocker arm for the roller cam version ? if so what is it ?

Answers

April 27, 2011
Brian
The 200 runner Sportsman 2 head does not require an off-set rocker arm even with a roller cam. You will simply use standard rocker arms. With increased rocker ratios it may be necessary to elongate the push rod hole slots.
1 answers

What is the valve angle? Looking for a 13 Deg. head

December 08, 2011

What is the valve angle? Looking for a 13 Deg. head

Answers

December 09, 2011
Zach
The valve angle on these heads is the standard SBC 23 degree.
Page 1 of 1
