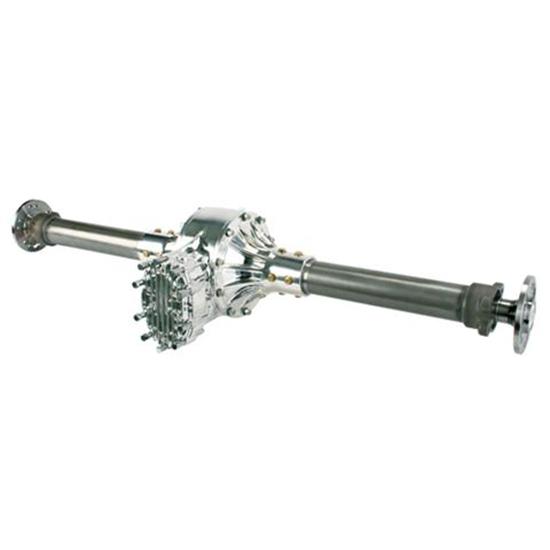

Winters Performance SR2550 SR2980 56 Inch V8 Quickchange, Plain

Winters Performance SR2550 SR2980 56 Inch V8 Quickchange, Plain
Winters Performance SR2550 SR2980 56 Inch V8 Quickchange, Plain
Winters Performance SR2550 SR2980 56 Inch V8 Quickchange, Plain

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

It's been a long time since you could buy a 100% brand new V-8 quick change with the features this one showcases. Each of these assemblies includes new axles with 5 on 4-1/2" and 5 on 4-3/4" bolt patterns, 3.78:1 ring & pinion, Wedgelock differential, 1310 series yoke, and plain steel axle tubes. Accepts our part #91712 6-spline quick change gears.

56" wide hub-to-hub. Uses the big Ford bearing (3.150") (Big Ford / New Style ) and has a 2-1/2" axle offset.

THIS ITEM SHIPS TRUCK FREIGHT

Application

  • For drum brakes, you may wish to order 910-31937
  • For disc brakes, you may wish to order 835-1407140 or 910-31921

Item Details

As-cast center with plain steel tubes.

Customer Reviews

This product has no reviews.

Product Q&A

4 questions : 4 answers

1 answers

What hp does this QC consume? We are running it in "banger" powered speedster.

Banger
March 21, 2015

What hp does this QC consume? We are running it in "banger" powered speedster.

Answers

March 23, 2015
EricM
That is a good question and one that is tossed around quite a bit in several forms of racing. I have never seen a chassis dyno test between a standard rear end and a quick change. My guess is somewhere between 5 to 15 horsepower loss from a 9" Ford to a quick change, however I have heard people estimating 25 to 40 horsepower loss.
1 answers

how much horsepower/torque is this rear rated for? Am looking for a good rear for a 1930 model A hot rod build, running a blown hemi rated at approx. 550hp.

scraper
January 06, 2015

how much horsepower/torque is this rear rated for? Am looking for a good rear for a 1930 model A hot rod build, running a blown hemi rated at approx. 550hp.

Answers

January 06, 2015
EricM
Winters does not give a specific horsepower or torque rating to their rear ends but we have customers around the world that have far in excess of 500 horsepower using these rear ends without problems.
1 answers

2.5" offset You list a 2.5" offset to the axles. Does this mean that the center section and drive shaft would NOT in the center of the axle? If so, why???

hot32coupe
April 24, 2014

2.5" offset You list a 2.5" offset to the axles. Does this mean that the center section and drive shaft would NOT in the center of the axle? If so, why???

Answers

April 25, 2014
EricM
No the pinion is centered in this rear end. The 2 1/2" axle offset refers to the distance from the end of the axle tube flange to the axle face where the wheel bolts on.
1 answers

Is the 56" dimension from outside axle face to axle face or from the brake flange surfaces? I thinking of running this in a 1936 Ford coupe with a T5 5 speed and parallel leaf springs. I noticed you have a drum brake application for the 2.5" axle offset value but don't see a disc kit for 2.5" offset. Any ideas?

DaveImbody
New River, AZ, USA
April 12, 2013

Is the 56" dimension from outside axle face to axle face or from the brake flange surfaces? I thinking of running this in a 1936 Ford coupe with a T5 5 speed and parallel leaf springs. I noticed you have a drum brake application for the 2.5" axle offset value but don't see a disc kit for 2.5" offset. Any ideas?

Answers

April 12, 2013
Jason
On the Winters rear ends number 8022550 Speedway offers a bolt on disc brake kit number 91031902 or 91031921 and also weld on kits if so desired. We also offer Wilwood kits with or without E brakes under number 8351402118 or 8351407140. This rear is 56" wide from axle flange to axle flange.
