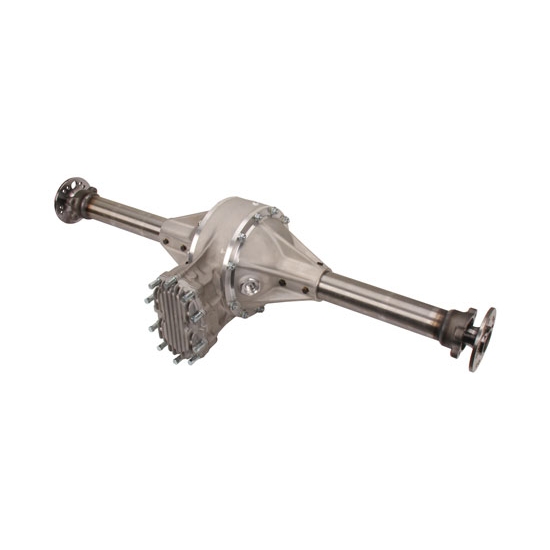

Winters Performance SR2525 SR2980 56 Inch Quickchange Rear End, Plain

SAME DAY SHIPPING! Order within the next 10 hours 50 minutes and receive same day shipping

Notes
Rear-end is capable of handling 1000 Horse power & 1000 ft.lbs. of torque and has a 10" ring gear.
Winters Performance SR2525 SR2980 56 Inch Quickchange Rear End, Plain
Winters Performance SR2525 SR2980 56 Inch Quickchange Rear End, Plain
Winters Performance SR2525 SR2980 56 Inch Quickchange Rear End, Plain

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Winter's Championship rear end is available with either plain or fully polished housing, six-rib side bells and standard rear cover. Features a standard driveshaft yoke, heat treated lower shaft, 31-spline Winters Track posi differential, and a 4.12:1 ring and pinion.

Housing ends are standard 3.15" big Ford and include 2.5" offset axles. Axles drilled for both 5 on 4-1/2" and 5 on 4-3/4" bolt patterns. Measures 56" from axle flange to axle flange and requires our part #91711 10-spline quick change gears.

THIS ITEM SHIPS TRUCK FREIGHT

Customer Reviews

This product has no reviews.

Product Q&A

9 questions : 9 answers

1 answers

Will this fit in my '55 Ford Pick Up? Is 56" too narrow?

Legend1
Moscow, PA
January 17, 2015

Will this fit in my '55 Ford Pick Up? Is 56" too narrow?

Answers

January 19, 2015
EricM
If you want to match the width of the stock rear end then you can measure from axle face to axle face of the original to determine then width. That is how we measure the 56" width of this rear end.
1 answers

What u joint does this take?

Ken57
November 19, 2014

What u joint does this take?

Answers

November 20, 2014
EricM
This uses a 1310 U-joint such as 91048315 or 91045153. This is assuming that your drive shaft also uses the 1310 size U-joint.
1 answers

Without measuring my current axle length, doyou know if 56" is the length I need on a 67 Chevy II? Also does it have limited slip or a no slip spline?

JimG
June 12, 2014

Without measuring my current axle length, doyou know if 56" is the length I need on a 67 Chevy II? Also does it have limited slip or a no slip spline?

Answers

June 13, 2014
EricM
The 68 and up Nova used a 60” hub face to hub face rear end and the earlier ones had a couple of options. Depending on the clearance and the wheel offset the 56” may be a little narrow. Some basic measurements on your application will verify fit and the hub to hub face where the wheels will bolt on is the width quoted in our catalog and website.
1 answers

what would be needed to adapt this diff to a 04 ford lightning

carcrazy347
May 13, 2014

what would be needed to adapt this diff to a 04 ford lightning

Answers

May 13, 2014
EricM
This rear end would be a very custom installation into a 2004 Ford Lightning. You would need suspension brackets and brakes that would be compatible to your truck as well as this rear end has a wheel bolt pattern of 5 on 4 1/2" or 5 on 4 3/4" where your truck has a bolt pattern of 5 on 135mm. Sorry I do not offer a rear end that would be easily adapted to your Ford Lightning.
1 answers

Will this rear end fit my 2007 mustang gt ? Will it be efficient for drift use ? What other parts should i purchase when ordering this rear end ?

Moods
Oman
January 02, 2014

Will this rear end fit my 2007 mustang gt ? Will it be efficient for drift use ? What other parts should i purchase when ordering this rear end ?

Answers

January 03, 2014
EricM
You could use this rear end for drift use. You will need to order a quick change gear set part number 80285 of the correct ratio for your application. I also have a selection of disc brake kits available for this rear end. It will use a 9" Ford "New Style Big Bearing" brakes.
1 answers

Can I order this quickchange with axles that have a 5x5 bolt patern?

Model
November 11, 2013

Can I order this quickchange with axles that have a 5x5 bolt patern?

Answers

November 12, 2013
Jason
This Winters quickchange rear end has axles drilled for both 5 on 4-1/2" and 5 on 4-3/4" bolt patterns. Sorry, currently we do not offer a quick change with 5 on 5" bolt pattern.
1 answers

can i get helical cut gear with this

tudlums
Arkansas
June 03, 2013

can i get helical cut gear with this

Answers

June 05, 2013
Jason
None of the quick change gears are helical cut or they would not be able to withstand the thrust or load front to back. They will be noisy and once you know what gear set you need the B&J have a better machined surface and are less noisy. A high quality grease also helps with the whine going down the road.
1 answers

I would like to install an emergency brake on my car. And was looking into other options other than a traditional emergency brakes at the axles & brakes. Can a Winters Quick Change Rear End be fitted with Speedway's Item #:7153250 Pinion Mounted 9" Ford E

Pennsylvania
August 07, 2011

I would like to install an emergency brake on my car. And was looking into other options other than a traditional emergency brakes at the axles & brakes. Can a Winters Quick Change Rear End be fitted with Speedway's Item #:7153250 Pinion Mounted 9" Ford E

Answers

August 11, 2011
John
Currently the pinion mount E-brake is specific to the 9” Ford rear end and works with the 1310 style yoke. The quick change rear end also utilizes this yoke but the bracket retaining the caliper and related hardware would not bolt up to the quick change rear end. The bracket and related parts to retain the caliper and cable assembly would need to be fabricated by the builder.
1 answers

How much noise should be expected out of this rear end?

hot rod
reno,nv
January 13, 2011

How much noise should be expected out of this rear end?

Answers

January 19, 2011
Jason
Not as loud as a gear drive for a motor but will make noise, mostly under decelleration.
