Winters Modified Quick Change Rear End

SAME DAY SHIPPING! Order within the next 17 hours 32 minutes and receive same day shipping

Winters Modified Quick Change Rear End
Winters Modified Quick Change Rear End
Winters Modified Quick Change Rear End

Click image to enlarge

Details

Reviews (0)

Q & A (12)

What's in the Box

Info

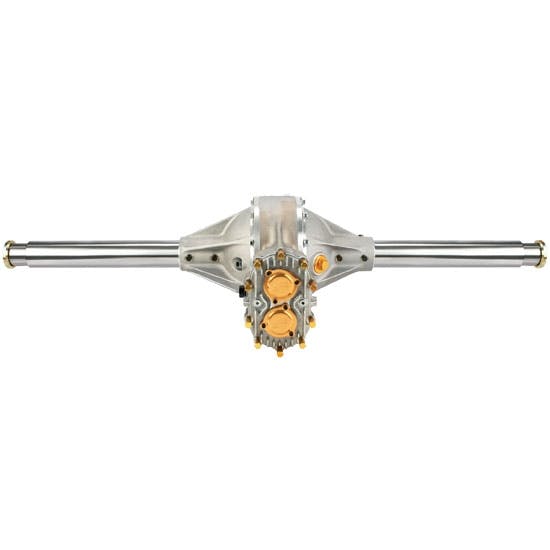

If you run at any of the Outlaw modified races you will need one of these Winters steel tubed quick changes. It is 60" wide with no offset and 4.86 gears on an aluminum spool.

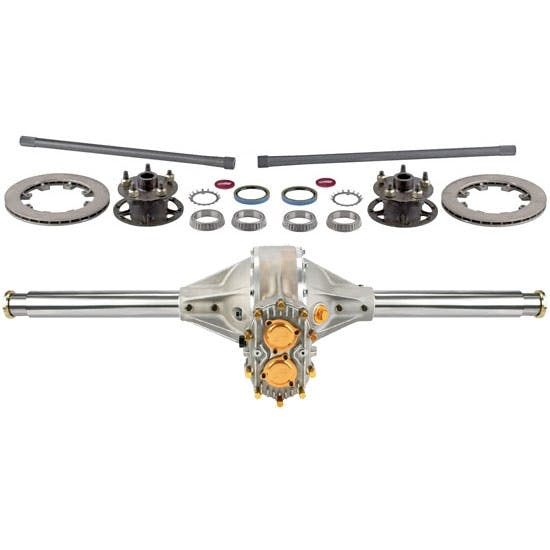

Choose bare as pictured or with 30.5" 31 splined axles, brake rotors, and 5 X 5" GN hubs.

Replacement steel axle tubes and 31 spline axles are available if needed.

Notes

IMCA approved for use in A-Mod division for 2015.

Customer Reviews

This product has no reviews.

Product Q&A

12 questions : 12 answers

1 answers

what are the replacement numbers on the axles and brake rotors Whats the replacement numbers on the axle and brake rotors

mikemike
January 27, 2015

what are the replacement numbers on the axles and brake rotors Whats the replacement numbers on the axle and brake rotors

Answers

January 29, 2015
EricM
The axles used for this rear end are part number 655790 in a 30.5" length. The brake rotors included in the complete assembly are part number 91031906.
1 answers

what is the part number on the replacement steel tubes.

jrowdy
October 18, 2014

what is the part number on the replacement steel tubes.

Answers

October 20, 2014
EricM
The steel replacement tubes for this rear end are part number 8025052-24
1 answers

Will you need to use a shorter, longer or can you use the same length drive line if you are changing from a 9" to a Quick change

Iyaoyas
Brawley, CA 92227, USA
September 19, 2014

Will you need to use a shorter, longer or can you use the same length drive line if you are changing from a 9" to a Quick change

Answers

September 19, 2014
EricM
This quick change rear end will require a drive shaft that is 1.4" longer than a 9" Ford with a short yoke. It will require a drive shaft 2.4" longer than a 9" Ford with a long yoke.
1 answers

Is this Aluminum Center section or Magnizum? Is Alumunum and Magnizum both legal for IMCA modifieds for 2015

CPT31
September 15, 2014

Is this Aluminum Center section or Magnizum? Is Alumunum and Magnizum both legal for IMCA modifieds for 2015

Answers

September 15, 2014
EricM
The center section of this rear end is aluminum. The 2015 IMCA rule does not specify material type for the quick change rear end option. We will have magnesium quick changes available soon. They will be part numbers 8025065 and 8025066.
1 answers

will birdcages from a ford 9 inch fit tis rear ?

fireballu2
Afton, NY 13730, USA
August 19, 2014

will birdcages from a ford 9 inch fit tis rear ?

Answers

August 20, 2014
EricM
This rear end has 3" OD axle tubes which is also a very common size on 9" floater rear ends. Your birdcages should work just fine on it.
1 answers

Will this Rear End be Legal For IMCA modified in 2015

ken52mod
Kempner ,Tx
August 18, 2014

Will this Rear End be Legal For IMCA modified in 2015

Answers

August 19, 2014
EricM
Yes this rear end will be legal for IMCA Modified in 2015.
1 answers

I see this is a 60" centered. Do you stock in 60 x 2" offset? If so, what is the price difference? Also, what would shipping to zip code 49415 be?

91JR
Michigan, USA
January 30, 2014

I see this is a 60" centered. Do you stock in 60 x 2" offset? If so, what is the price difference? Also, what would shipping to zip code 49415 be?

Answers

January 30, 2014
EricM
Sorry I do not have this in a 2" offset.
1 answers

what is the measurement from the center line of the axle to the rear of the housing. I mite have a gas tank distance issue

madjay
new smyrna fl
July 12, 2011

what is the measurement from the center line of the axle to the rear of the housing. I mite have a gas tank distance issue

Answers

July 13, 2011
Jason
This is 10-1/4"
1 answers

Can this unit be used with a closed sprint car style driveline?

None
August 22, 2015

Can this unit be used with a closed sprint car style driveline?

Answers

August 24, 2015
Eric
Expert
As supplied this rear end is made for an open driveline. It may be possible to convert this to a closed driveline but you may want to contact Winters about the possibility of doing the swap.
1 answers

With the aluminum spool will it hold up for a 3100 pound car street stock?

Al
Knoxville, TN
December 07, 2015

With the aluminum spool will it hold up for a 3100 pound car street stock?

Answers

December 08, 2015
Eric
Expert
Yes typically the aluminum spool works fine for circle track applications, even in heavier cars like yours.
Page 1 of 2
