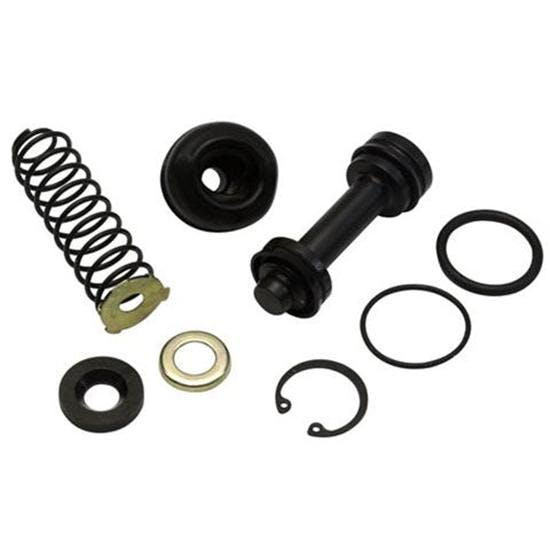

Wilwood Universal Master Cylinder Rebuild Kits
Click image to enlarge
Q & A
What's in the Box
These rebuild kits fit Wilwood and Tilton universal master cylinders. Available bore sizes include: 5/8", 3/4", 7/8", 1", and 1-1/8".
Tech Tip: The bigger the master cylinder, the more fluid you get... but you'll have less pressure at the caliper.
