Wilwood 260-7563 Tandem Master Cylinder w/ Remote Reservoirs, 1 Inch

SAME DAY SHIPPING! Order within the next 11 hours 25 minutes and receive same day shipping

Specs
Centerline of Holes:
2.25
Material Type:
Aluminum
Overall Width:
2.91
Sold in Quantity:
Each
Finish:
Natural
Outlet Size:
15mm x 1.00
Thread Pitch:
5/16"-24
Mounted Length:
7.03
Bore Size:
1.00
Inlet Fitting:
3/8" Hose
Outlet Fitting:
3/8"-24
Stroke:
1.10
MFG. Part #:
260-7563
Garage Sale:
No
Length:
10.90"
Area:
0.78
Outlets:
2
Reservoir Type:
Remote
Flange to End :
7.03"
Outlet Size 2:
15mm x 1.00
Outlet Fit :
3/8-24 IF Female
Outlet Fit 2:
3/8-24 IF Female
Wilwood 260-7563 Tandem Master Cylinder w/ Remote Reservoirs, 1 Inch
Wilwood 260-7563 Tandem Master Cylinder w/ Remote Reservoirs, 1 Inch
Wilwood 260-7563 Tandem Master Cylinder w/ Remote Reservoirs, 1 Inch

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

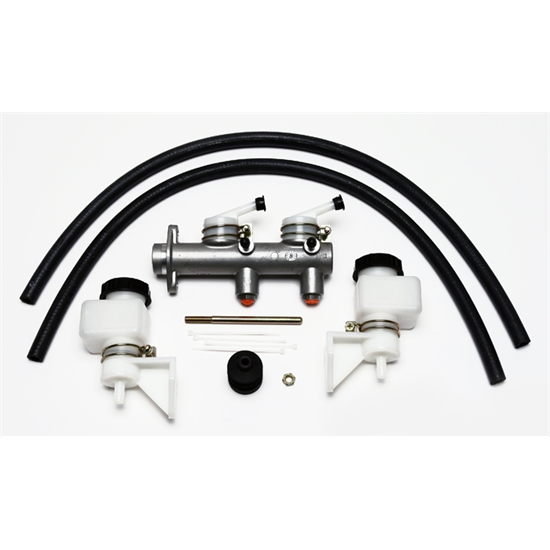

Tandem remote master cylinders provide one of the safest ways to actuate four wheel or dual caliper axle brake systems. This versatile, lightweight and easily adapted master cylinder provides single pushrod activation of two separate brake fluid circuits. By completely isolating the fluid reservoirs and circuits, the front and rear brakes are able to operate independently of each other and provide a safety net should any one side of the system become inoperable. Shipped complete with the master cylinder and all necessary hardware including 30 inches of hose that can be cut to the desired length for remote mounting of the two 4 ounce fluid reservoirs.

  • Can be bolted directly to Wilwood single mount pedals
  • 50/50 front/rear brake output from a 1.00" bore with 1.10" stroke
  • Great match for Wilwood's Bolt-On-Disc Brake Kit systems configured from OE components
  • Reservoirs can be either remote or master cylinder mounted

Tandem Remote Fill Master Cylinder Installation Instructions (PDF)

Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection

Specs



Customer Reviews

Rated 4 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
0
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Fabman
KCMO
Product Rating

Perfect for my project

May 21, 2010
Very basic, effective, inexpensive, and easy to install. Wish plugs for the bleeders were included.
Pros:
  • Bench bleed easy
  • Easy setup
  • Low Price
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
8352607563

Product Q&A

3 questions : 3 answers

1 answers

mount turned to side the mounting holes on my car go side to side i see the mounts on your wilwood master cyl go up and down can this cyl be mounted turned to the side with out leaking and the remote tanks mounted on the frame thanks matt

mattauto
Wheat Ridge, CO, USA
January 28, 2015

mount turned to side the mounting holes on my car go side to side i see the mounts on your wilwood master cyl go up and down can this cyl be mounted turned to the side with out leaking and the remote tanks mounted on the frame thanks matt

Answers

January 29, 2015
EricM
No this master cylinder cannot be mounted sideways. You will need a master cylinder such as 8352604893, 91031425, or 91031445. Measure the center to center distance on your mount to be sure that the master cylinder that you order is compatible. If you are after the remote reservoir feature then you may be interested in 91022933.
1 answers

have a 23t with disc brakes front and rear will this product work work well with this setup. also would like to know the overall deminsions of the unit.

hotrod
liberty mo.
August 29, 2011

have a 23t with disc brakes front and rear will this product work work well with this setup. also would like to know the overall deminsions of the unit.

Answers

August 30, 2011
John
These are compact master cylinders and the reservoirs can sit on top or be remote mounted. The overall length of the main body from surface of the mount flange to end is 7”, the mount pattern is 2 ¼” center to center vertical on the flange, the side mounts if desired are 2.77” center to center, it has 3/8 IFF line attachment and the pushrod is 5/16” fine thread. For a blueprint of other dimensions you can visit Wilwoods website and enter their part number 2607563. We also offer many other compact master cylinders that may be of interest from Wilwood and US Brake.
1 answers

I am thinking of using 4 of your 12" Bendix style brakes for 37-48 spindles on a tribute T, would this master cylinder be suitable for this application?

June 14, 2011

I am thinking of using 4 of your 12" Bendix style brakes for 37-48 spindles on a tribute T, would this master cylinder be suitable for this application?

Answers

June 16, 2011
John
This dual reservoir master cylinder is a compact unit that has the capability of being a remote reservoir set up with the included components. It will work fine with 4 wheel bendix style brakes in a safety oriented arrangement. You may also want to add an adjustable proportioning valve to be able to dial in the brake system to your exact wheel and tire combination along with the front to rear bias during panic braking.
Page 1 of 1
