Wilwood 340-5181 Rev. Swing Mount Dual Master Cylinder Brake Pedal

SAME DAY SHIPPING! Order within the next 11 hours 24 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Overall Width:
5.25
Sold in Quantity:
Each
Finish:
Painted
Mounted Length:
12.06
Bolt Hole Pattern:
3.00" x 4.25"
Hardware Included:
Yes
MFG. Part #:
340-5181
Garage Sale:
No
Mount Position:
Swing
Mount Facing:
Reverse
Balance Bar:
Yes
Pedal 1 Ratio:
6.25 to 1
Pedal 1 Length:
11.71
Pedal Type:
Brake Pedal

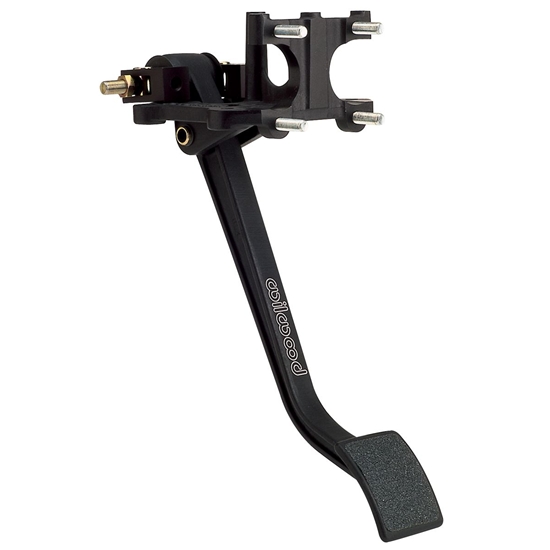

Wilwood 340-5181 Rev. Swing Mount Dual Master Cylinder Brake Pedal
Wilwood 340-5181 Rev. Swing Mount Dual Master Cylinder Brake Pedal
Wilwood 340-5181 Rev. Swing Mount Dual Master Cylinder Brake Pedal

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Dual reverse pedal mounts two brake master cylinders with a bias balance bar. Wilwood's clevis and pivot pin balance bar provide smooth and accurate settings of the brake pedal bias. It can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments. 6.25 to 1 pedal ratio.

  • Positions master cylinders inside the firewall away from engine heat
  • Aluminum frame and arm construction
  • Steel pivots and mounting studs
  • Anti-skid pedal pad

835-3405181 Instructions (PDF)

Specs

  • Length of mount bracket is 4-5/8"
  • Width of mount bracket is 5-3/16"
  • Height of mount bracket is 3-1/8"
  • Master cylinder mount pattern is 2-1/4" center to center vertical

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

LUCKY
Verified Purchaser
BAKERSFIELD CA.

VERY WELL MADE

October 02, 2011
FITS UNDER THE DASH OF MY 40 FORD PERFECTLY
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 2 answers

1 answers

Mount under floorboards? Could this be mounted under the floorboards of a hot rod to give better control over brake bias, like the Universal T-Bucket setup only with two master cylinders?

Opus
Garland, TX, USA
September 23, 2014

Mount under floorboards? Could this be mounted under the floorboards of a hot rod to give better control over brake bias, like the Universal T-Bucket setup only with two master cylinders?

Answers

September 24, 2014
EricM
This pedal is not made to mount under the floor. You may be able to use it for that but it is doubtful that there will be much length of the pedal once the master cylinder is mounted on the assembly. More than likely the pedal will only come up through the floor a few inches.
1 answers

HOW DOES THIS MOUNT, AND WHERE? DIRECT TO FIREWALL?MOUNTING BRACKET? THANKS DON

BACK AFTER 50 YEARS
KEY WEST FL.
March 31, 2011

HOW DOES THIS MOUNT, AND WHERE? DIRECT TO FIREWALL?MOUNTING BRACKET? THANKS DON

Answers

April 04, 2011
Pat
This reverse mount pedal assy mounts to the inside of the firewall with the cylinders facing the driver on a bracket that you would need to fabricate . It mounts horizontal .
Page 1 of 1
