Wilwood 140-7141 Rear E-Brake Kit - GM 12 Bolt Axle

SAME DAY SHIPPING! Order within the next 1 hour 50 minutes and receive same day shipping

Specs
Material Type:
Aluminum
Sold in Quantity:
Kit
Bolt Pattern:
Multi: 5 on 5"/4.75"/4.50"
Hardware Included:
Yes
Rotor Diameter:
12.19
Caliper Pistons:
Four
MFG. Part #:
140-7141
Rotor Thickness:
.81
Minimum Recommended Wheel Diameter:
15 Inch
Caliper Finish:
Anodized
Parking Brake Provision:
Yes
Rotor Construction:
Vented
Garage Sale:
No
Rotor Location:
Rear
Rotor Shape:
Round
Drilled:
No
Slotted:
No
Notes
Includes rotors, calipers, pads, hardware, and parking brake assemblies.

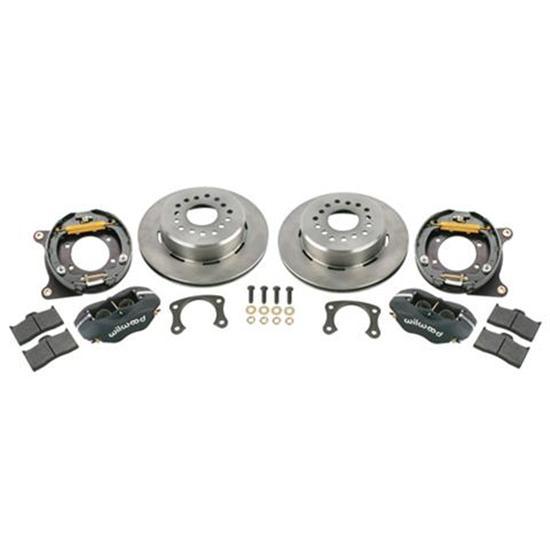

Wilwood 140-7141 Rear E-Brake Kit - GM 12 Bolt AxleWilwood 140-7141 Rear E-Brake Kit - GM 12 Bolt AxleWilwood 140-7141 Rear E-Brake Kit - GM 12 Bolt Axle
Wilwood 140-7141 Rear E-Brake Kit - GM 12 Bolt Axle

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Wilwood'sFDL Pro-Series rear disc kits provide a complete solution for popular GM 12-boltrear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

E-brake cables sold separately. Fits GM 12-bolts with 2.81" offset and OE C-Clip axles. Does not support Special End or C-Clip Eliminator modifications.

835-1407141 Instructions (PDF)

Axle Flange Identification Chart





Click Here for Exploded Installation Specs



Application

  • Ultralite HP 32 Curved Vane Vented Rotor - 12.19" x .810"
  • Forged billet Dynalite four-piston calipers Piston Area (in²): 3
  • 1/8" NPT inlet
  • Minimum Wheel Diameter (in): 15
  • BP-10 Smart pads
  • Aluminum mounting brackets and hardware
  • Rotors for each kit are drilled to accept 5 x 4-1/2", 5 x 4-3/4", and 5 x 5" bolt patterns

Notes

Note:  Kit fits some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.  For OE C-Clip axles only. Does not support Special End or C-Clip Eliminator modifications



Specs

  • Ultralite HP 32 Curved Vane Vented Rotor - 12.19" x .810"
  • Forged billet Dynalite four-piston calipers
    • Piston Area (in²): 3
    • 1/8" NPT inlet
  • Minimum Wheel Diameter (in): 15
  • BP-10 Smart pads
  • Aluminum mounting brackets and hardware
  • Rotors for each kit are drilled to accept 5 x 4-1/2", 5 x 4-3/4", and 5 x 5" bolt patterns

Item Details

12-bolt Chevy, 2.81" offset
