Wilwood High Volume Master Cylinder Rebuild Kits
Click image to enlarge
Q & A
What's in the Box

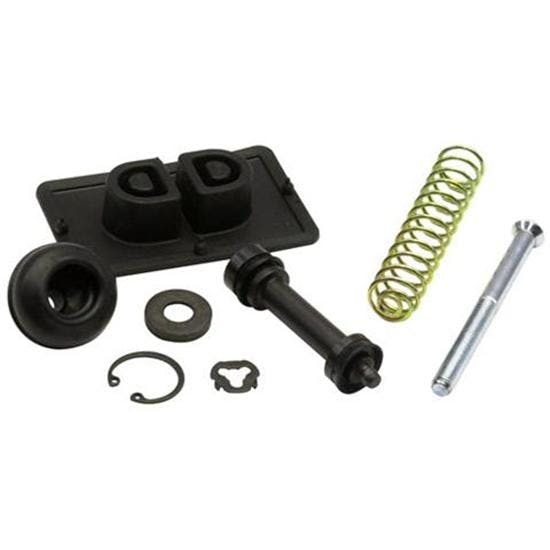

Rebuild kit for Wilwood high volume master cylinders. Contains piston, seals, snap ring, push rod, lid gasket and replacement dust boot assembly. All parts necessary for maintenance and repair of your master cylinder.
You may also be interested in:
Wilwood High Volume Aluminum Master Cylinder$53.99More Info
Wilwood 330-7085 High Volume Master Cylinder Replacement Lid$17.99More Info
Wilwood high-volume aluminum master cylinders have the highest fluid capacity of any integral reservoir design. With a total capacity of 8.2 ounces, there is at least 26% more fluid than most competitive brands. More fluid volume means cooler temperatures and additional insurance for extreme conditions where high pad wear can compromise fluid levels during long events. With 1-7/16" of piston travel, there is plenty of margin when used with large four or six piston calipers.
An internal slosh baffle guarantees a constant fluid supply to the bore chamber during hard cornering, acceleration and braking. This unique baffle also eliminates aeration into the reservoir from return fluid that can occur during brake release and bleeding procedures.
- Die-cast from high-grade aluminum
- Heavy-duty internal piston springs provide fast retraction for immediate release and positive fluid transfer without the need for cumbersome external pushrod springs
- Pedal feel is improved, piston retraction is guaranteed, fluid recovery is quicker and the bleeding process is simplified
- Formed steel lids, heavyweight bail wires and bellows type gaskets keep the fluid in and the moisture out with correct pressure balancing during fluid displacement
- 1/8"-27 NPT fluid port
835-260676 Instructions (PDF)
Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection.
Formed steel lid with bellows type gasket to keep the fluid in and the moisture out with correct pressure balancing during fluid displacement. Replacement for Wilwood high volume aluminum master cylinders.
