Wilwood 120-5343 D52 Single Piston Floater Caliper, GM III, 2.38/.810

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Sold in Quantity:
Each
Finish:
Anodized
Rotor Diameter:
11.75
Color:
Gray
Caliper Pistons:
Single
Caliper Mounting Type:
Floating
Mounting Side:
Universal
Thread Pitch:
1/8-27 NPT
MFG. Part #:
120-5343
Garage Sale:
No
Centerline of Holes:
7.06
Overall Length:
8.18
Bore Size:
2.38
Mounted Height:
0.77
Piston Diameter:
2.38
Rotor Thickness:
0.81
Mount Hole Size:
0.69
Weight:
3.70
Total Piston Area:
4.45
Pad Area:
10.00
Pad Volume:
3.90

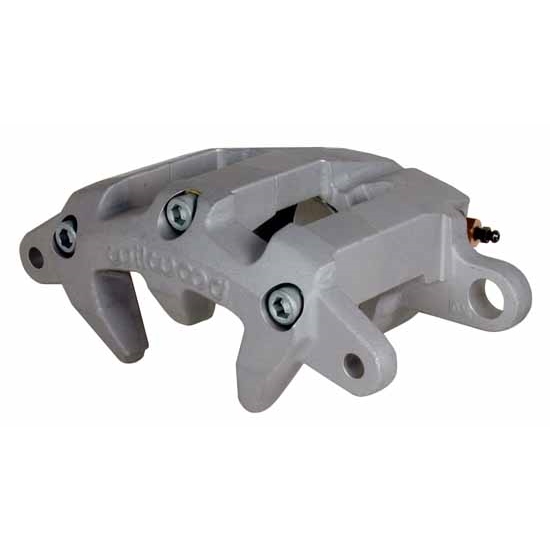

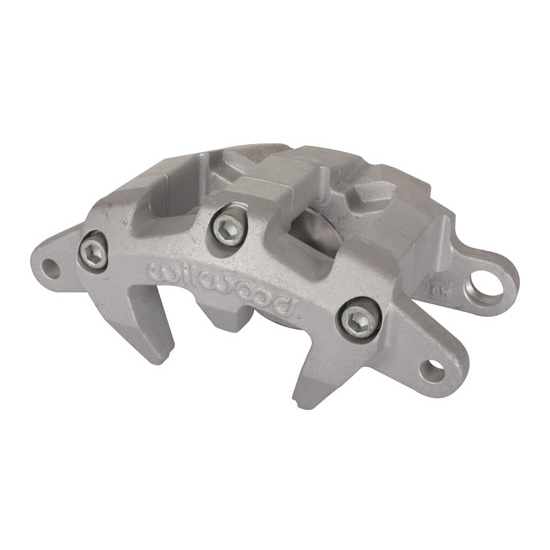

Wilwood 120-5343 D52 Single Piston Floater Caliper, GM III, 2.38/.810
Wilwood 120-5343 D52 Single Piston Floater Caliper, GM III, 2.38/.810
Wilwood 120-5343 D52 Single Piston Floater Caliper, GM III, 2.38/.810

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Wilwoods GM III caliper represents the latest refinements in caliper design and manufacturing through the use of solid modeling and stress simulation programs. The result is the most rigid, highest torque, lightweight aluminum caliper in its class.

These tight grained, high density aircraft alloy aluminum castings are fully machined, assembled and tested in-house by fully trained technicians at Wilwood to assure top quality and peak performance.

  • Exclusive triple bridge configuration provides increase in clamping force over standard twin bridge calipers
  • Material is properly placed to fortify all load bearing points
  • 2.38" diameter piston calipers have a smaller external contour than the larger 2.75" diameter piston calipers
  • Stainless steel pistons for increased fluid protection
  • High temperature seals for controlled retraction which provides improved driver feel

1/8 Inch NPT Inlet

Wilwood Specs Sheet (Link)

Wilwood Data Sheet (PDF)

Item Details

2.38" Piston/.81 Rotor
