Wilwood 120-11128 Forged Superlite Internal Caliper, 1.38 / .81 Inch

SAME DAY SHIPPING! Order within the next 4 hours 42 minutes and receive same day shipping

Specs
Centerline of Holes:
3.50
Material Type:
Aluminum
Overall Length:
9.50
Weight:
5.20
Color:
Black
Sold in Quantity:
Each
Finish:
Anodized
Thread Pitch:
1/8-27 NPT
Bore Size:
1.38
Mounted Height:
2.85
Rotor Diameter:
13.06
Piston Diameter:
1.38
Caliper Pistons:
Four
Mounting Side:
Universal
MFG. Part #:
120-11128
Rotor Thickness:
0.81
Garage Sale:
No
Caliper Mounting Type:
Lug
Bore 2 Size:
1.38
Total Piston Area:
3.00
Mount Hole Size:
0.45
Pad Area:
8.20
Pad Volume:
4.90

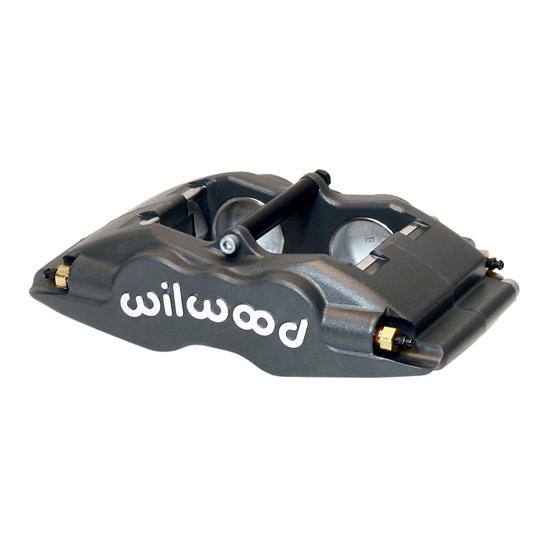

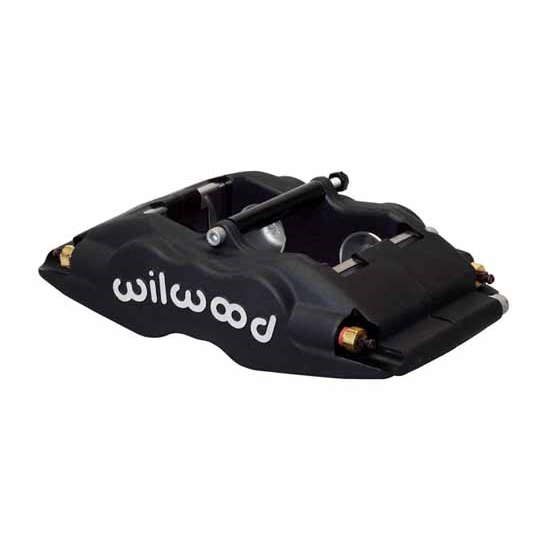

Wilwood 120-11128 Forged Superlite Internal Caliper, 1.38 / .81 InchWilwood 120-11128 Forged Superlite Internal Caliper, 1.38 / .81 Inch
Wilwood 120-11128 Forged Superlite Internal Caliper, 1.38 / .81 Inch

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

New forged design features increased strength and improved fluid displacement.  Four-piston design for 11.75" X .810" thick rotors.  1/8" npt inlet, 3.50" mounting centers.

Wilwood Spec Sheet (Link)
