Wilwood F.I.N.D.L Caliper .810
Click image to enlarge
Please NOTE the following about this product:
- This product is discontinued.
Q & A
What's in the Box

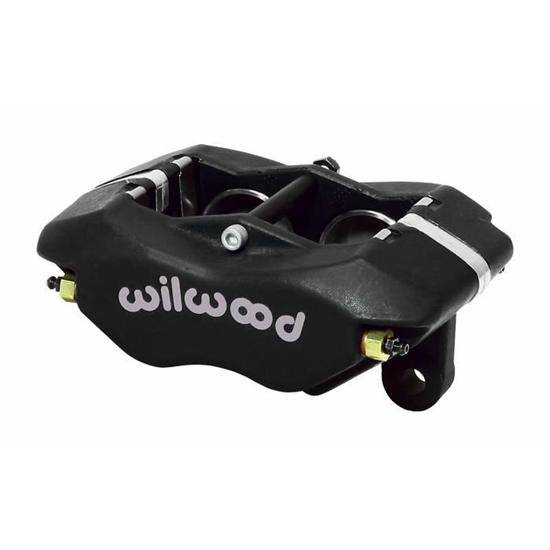

Wilwood's new Forged Narrow Mount Dynalite (FNDL) calipers are ideal for and widely used in many competition applications including late models,modifieds, sprints, off road and road racing. Computer generated design and stress analysis technology, is the latest innovation from Wilwood providing substantial improvements in strength and performance over all comparable caliper models.Forged Narrow Mount Dynalites are the strongest calipers in the class. FNDL calipers are a direct replacement for all previous Wilwood NDL’s and similar competitive brands with 3.50" centered mounting tabs. A total of five bolts provide superior bridge strength and positive retention of the top loaded 7816 or 7216 type brake pads. The full range of PolyMatrix pad compounds is available to match the brake response and heat range requirements of any competition
Wilwood Data Sheet (PDF)
You may also be interested in:
Speed Bleeder Bleed Screws, 3/8-24More Info
Wilwood 260-8419 Knob Style Proportioning Valve$45.99More Info
Wilwood 290-6209 EXP 600 Plus Racing Brake Fluid, 500 ML Bottle$20.99Price: $18.99More Info
Wilwood 120-11572 FNDL Caliper, 3.50 Inch Mount, 1.75 Piston/ .81 DiscPrice: $155.99More Info
The Speed Bleeder is a direct replacement for the bleeder assembly in your caliper. This makes brake bleeding truly a one-man operation. Simply "crack" the bleeder loose, pump the brakes, then close the bleeder.
Sold in pairs.
Read more about bleeding brakes in our tech article, How To Bleed Your Brake Lines.
This device lets you adjust the front-to-rear braking balance by proportionally decreasing the rear (or in some cases the front) brake line pressure. Can also be used to adjust individual front wheel braking in dirt track applications. Valve weighs only 5.2 ounces and has two .25" side mounting holes spaced 1.00" apart.
- Allows easy adjustment of front to rear brake bias
- Universal design works on all race cars
- 100 to 1500 psi range, up to 57% pressure reduction
- Accepts 1/8"-27 NPT fittings
Compensates for weight transfer to the front wheels during braking. All factory brake systems allow for this in some fashion. An APV allows you to "fine tune" a street or race brake system and thus prevents severe rear brake lockup under moderate-to-heavy braking.
835-2608419 Instructions (PDF)
EXP 600 Plus is a highly refined blend developed for extreme performance under the high heat and extreme pressure of professional motorsports. EXP 600 Plus has been tested to 626° F with a wet boiling point of 417° F. These numbers far exceed any DOT or SAE specifications.
It is true that racing brake fluids need to have high boiling points. It is also true that fluids need to have low moisture affinity to slow the natural absorption rate of water vapor. But the true test of any high temp brake fluid is how well it resists aeration and compressibility after it has been heated and pressure cycled a few hundred times. The real test is at the track. EXP has been proven to maintain firm pedal feel and quick response, long after others have failed.
Note: For optimum performance, EXP 600 Plus should not be diluted with any other brake fluids. Add new fluid to a clean system.
8352906209 Instructions (PDF)
- Strongest caliper in its class
- 3.50" mount center
- Side inlet and 4 bleed screws
