Wilwood Disc Brake Kit for 1949-54 Chevy Spindles, 2-Piston, Steel Rotor

SAME DAY SHIPPING! Order within the next 1 minute and receive same day shipping

Specs
Sold in Quantity:
Kit
Bolt Pattern:
Dual: 5 on 4.5"/4.75"
Hardware Included:
Yes
Rotor Diameter:
10.75
Caliper Pistons:
Two
Rotor Thickness:
.35
Caliper Finish:
Anodized
Rotor Construction:
Solid
Garage Sale:
No
Rotor Location:
Front
Rotor Shape:
Round
Drilled:
No
Slotted:
No
Notes
Includes rotors, hubs, bearings and seals, calipers, caliper brackets, and pads.
Wilwood Disc Brake Kit for 1949-54 Chevy Spindles, 2-Piston, Steel RotorWilwood Disc Brake Kit for 1949-54 Chevy Spindles, 2-Piston, Steel RotorWilwood Disc Brake Kit for 1949-54 Chevy Spindles, 2-Piston, Steel RotorWilwood Disc Brake Kit for 1949-54 Chevy Spindles, 2-Piston, Steel Rotor

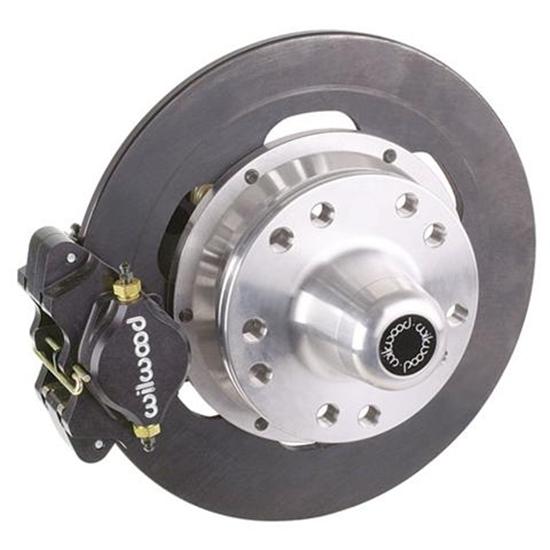

Wilwood Disc Brake Kit for 1949-54 Chevy Spindles, 2-Piston, Steel Rotor

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

Check out this complete brake package for '49-'54 Chevy car spindles. These kits feature aluminum hubs, solid steel rotors, 2-piston aluminum calipers, bearings, seals, steel brackets, and all necessary hardware. Hubs are drilled for both 5 x 4.5" and 5 x 4.75" bolt patterns.

  • Billet Dynapro two-piston calipers - black finish
  • Poly E brake pads
  • .35" wide x 10-3/4" diameter solid rotors - black finish
  • Caliper has a 1/8" NPT inlet

835-140150 Instructions (PDF)

Notes

  1. If using steel wheels with this kit, you will also need to purchase (2) steel shims part 835-3007500. These shims will prevent steel wheelsfrom galling the aluminum hub.
  2. When using this kit with a tube axle, you must use flat steering arms. 15" minimum wheel diameter for all kits.
