Wilwood Brake Kit for Total Performance Spindles

Price:$679.99
Wilwood Brake Kit for Total Performance Spindles
Price:
$679.99
KT
In Stock
Item #:
835140170
Open Kit Components
- Selection of individual components may be necessary for kit purchase.
Wilwood Brake Kit for Total Performance Spindles
Click image to enlarge Click image to enlarge
No video at this time.

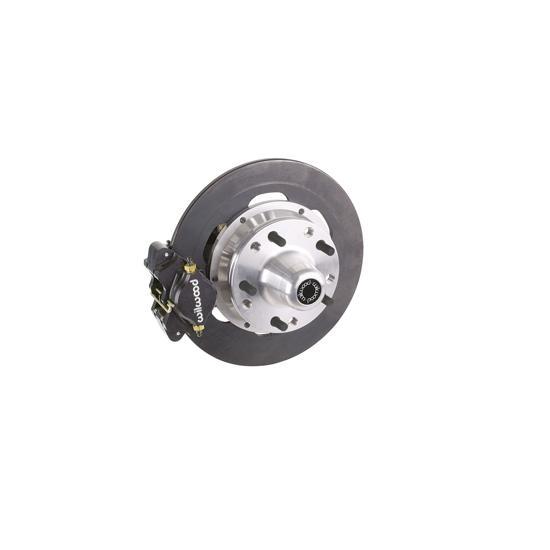

New hard to find Wilwood brakes for you classic Total Performance spindle. Features DynaPro 2-piston billet aluminum calipers and 10.75" x .35" solid steel rotors. Aluminum hubs are drilled to accept both Ford 5-on-4-1/2" and GM 5-on-4-3/4" bolt patterns.



Spindle Guide (Link)

Wilwood Brake Kit Installation Instructions (PDF)

  • Minimum Wheel Diameter (in): 15"
  • Wheel Stud Diameter: 1/2"-20
  • Rotor - 10.75" diameter x .35" thick
  • Caliper inlet fitting: 1/8" NPT
  • Piston count: 2
  • Piston area (in2): 2.40
  • Piston type: Stainless
  • Brake Pad Area (in²): 3.00
  1. If using steel wheels with this kit, you will also need to purchase (2) steel shims part 835-3007500. These shims will prevent steel wheels from galling the aluminum hub.
  2. OEM rubber brake hoses generally cannot be adapted to Wilwood calipers. The caliper inlet fitting is a 1/8-27 NPT. The preferred method is to use steel adapter fittings at the caliper, either straight, 45 or 90 degree and enough steel braided line to allow for full suspension travel and turning radius, lock to lock.
  • Minimum Wheel Diameter (in): 15"
  • Wheel Stud Diameter: 1/2"-20
  • Rotor - 10.75" diameter x .35" thick
  • Caliper inlet fitting: 1/8" NPT
  • Piston count: 2
  • Piston area (in2): 2.40
  • Piston type: Stainless
  • Brake Pad Area (in²): 3.00
