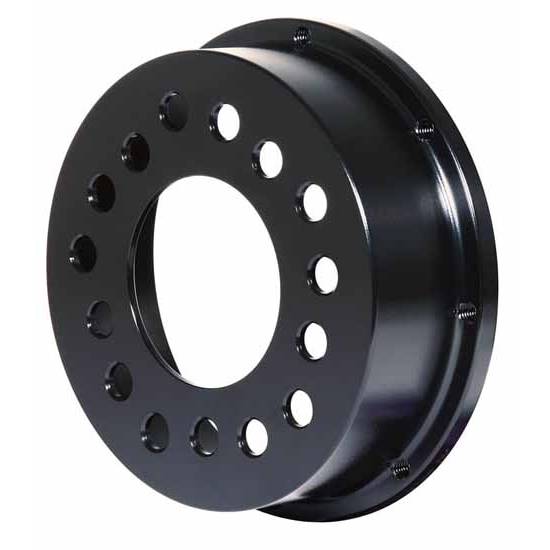

Wilwood 170-0208 Rear Brake Drag Hat, 1.96 Inch Offset, Multi-5 Lug

Specs
Material Type:
Aluminum
Sold in Quantity:
Each
Finish:
Black E-Coat
Rotor Hat Bolt Pattern:
8 x 7.00"
Bolt Pattern:
Multi: 5 on 5"/4.75"/4.50"
Hat Mount Hole Type:
Threaded
Hat Mount Style:
Fixed Mount
Hat Bolt Circle 1:
5 X 4.50
Hat Bolt Circle 2:
5 X 4.75
Hat Bolt Circle 3:
5 X 5.00
Overall Thickness:
.25
Inside Diameter:
3.06
Outside Diameter:
6.14
Stud Diameter:
0.52
Depth:
1.95
Offset:
1.96
Center Hole ID:
3.06
Internal Clearance:
6.14
Mount Hole Size:
5/16-18
Face Thickness:
0.25
Stud Diameter 2:
0.52
Stud Diameter 3:
0.52
Weight:
1.6
Notes
Stud hole diameter is .52"
Wilwood 170-0208 Rear Brake Drag Hat, 1.96 Inch Offset, Multi-5 Lug
Wilwood 170-0208 Rear Brake Drag Hat, 1.96 Inch Offset, Multi-5 Lug
Wilwood 170-0208 Rear Brake Drag Hat, 1.96 Inch Offset, Multi-5 Lug

Click image to enlarge

Details

Reviews (1)

Q & A (1)

What's in the Box

Info

Willwood brake hats have a long standing reputation for fit, performance, and durability. Manufactured from premium grade aluminum alloys offering high strength and low weight.

Wilwood Brake Hat Chart (Link)

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Fast Eddie
stratford oklahoma

definitly would buy this product

January 21, 2010
with a little machining it fit the 88-93 axles just fine
Pros:
  • Worked great
  • Good Fit
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

1 questions : 1 answers

1 answers

will these hats fit 5x5 big corse thread studs and slide over floater style rear hubs?

DJ
Bucksport,Maine
December 08, 2011

will these hats fit 5x5 big corse thread studs and slide over floater style rear hubs?

Answers

December 12, 2011
Jason
The center hole in this 'hat' is 3.06" I.D. The inside clearance is 6.14". This 'hat' will work with 5 lug on 4.5", 5 on 4-3/4", and 5 on 5". The stud hole diameter is .52".
Page 1 of 1
