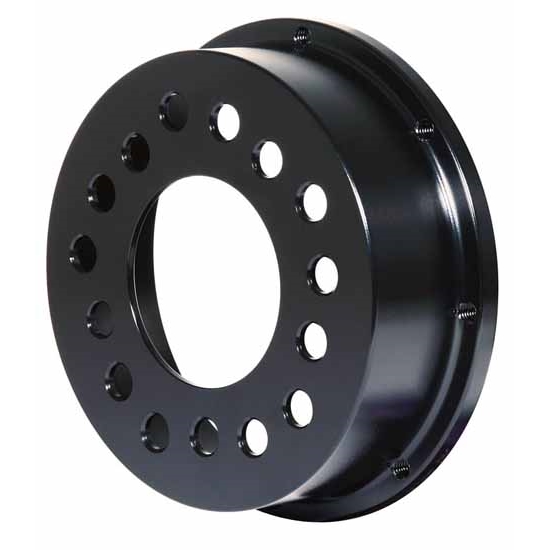

Wilwood 170-0764 Rear Brake Drag Hat, 1.41 Inch Offset, Multi-5 Lug

SAME DAY SHIPPING! Order within the next 8 hours 3 minutes and receive same day shipping

Specs
Material Type:
Aluminum
Weight:
2.00
Sold in Quantity:
Each
Finish:
Black E-Coat
Inside Diameter:
3.06
Outside Diameter:
6.14
Bolt Pattern:
Multi: 5 on 5"/4.75"/4.50"
Stud Diameter:
0.52
Offset:
1.41
MFG. Part #:
170-0764
Rotor Hat Bolt Pattern:
8 x 7.00"
Garage Sale:
No
Center Hole ID:
3.06
Internal Clearance:
6.14
Mount Hole Size:
5/16-18
Face Thickness:
0.50
Hat Mount Hole Type:
Threaded
Hat Mount Style:
Fixed Mount
Hat Bolt Circle 1:
5 X 4.50
Hat Bolt Circle 2:
5 X 4.75
Hat Bolt Circle 3:
5 X 5.00
Stud Diameter 2:
0.52
Stud Diameter 3:
0.52
Wilwood 170-0764 Rear Brake Drag Hat, 1.41 Inch Offset, Multi-5 Lug
Wilwood 170-0764 Rear Brake Drag Hat, 1.41 Inch Offset, Multi-5 Lug
Wilwood 170-0764 Rear Brake Drag Hat, 1.41 Inch Offset, Multi-5 Lug

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Willwood brake hats have a long standing reputation for fit, performance, and durability. Manufactured from premium grade aluminum alloys offering high strength and low weight.

Wilwood Brake Hat Chart (Link)

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Flying Bum
Verified Purchaser
Huntingtown, Md
Product Rating

High quality

November 28, 2011
Converted truck front brakes from drum to disc. Aluminum hat fit as if original equipment. Show quality finish. Very pleased with end result.
Pros:
  • Perfect Fit
  • Flawless Finish
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

0 questions : 0 answers

No questions have been asked.
