Wilwood 140-10996 FDL 11 Inch Pro Series Front Brake Kit, 1967-72 GM

SAME DAY SHIPPING! Order within the next 4 hours 30 minutes and receive same day shipping

Specs
Sold in Quantity:
Kit
Bolt Pattern:
Dual: 5 on 4.5"/4.75"
Stud Diameter:
.50
Thread Pitch:
1/2"-20
Hardware Included:
Yes
Rotor Diameter:
11.00
Caliper Pistons:
Four
MFG. Part #:
140-10996
Rotor Thickness:
.81
Minimum Recommended Wheel Diameter:
14 Inch
Caliper Finish:
Anodized
Rotor Construction:
Vented
Garage Sale:
No
Rotor Location:
Front
Rotor Shape:
Round
Drilled:
No
Slotted:
No
Wheel Diameter:
14
Spindle Type:
Factory Disc & Drum Spindles
Total Piston Area:
4.80
Pad Area:
6.36
Pad Volume:
2.1
Rotor Width:
0.81
Vane Count:
30 V
Rotor Style:
Plain Face
Bedded:
No
Balanced:
No
Compound:
BP-10
Stud Diameter 2:
1/2-20
Mount Type:
Lug
OE Hub Offset:
0.18
Caliper Type:
Forged Dynalite
Piston Type:
Stainless
Rotor Type:
Ultralite HP 30
Rotor Surface Finish:
Natural
Rotor Material Type:
Iron
Notes
Includes rotors, hubs, bearings and seals, calipers, caliper brackets, hardware, and pads.

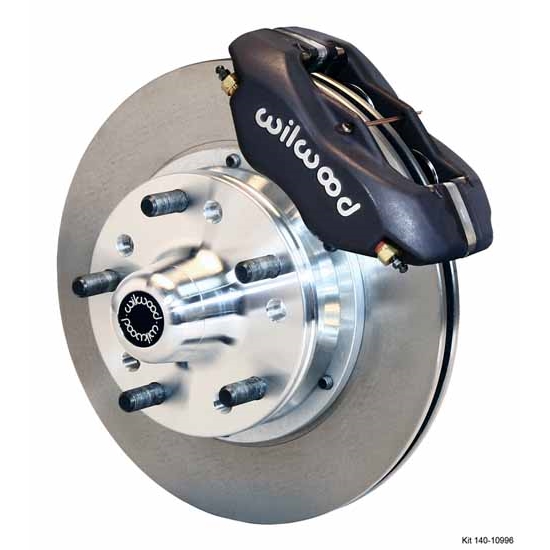

Wilwood 140-10996 FDL 11 Inch Pro Series Front Brake Kit, 1967-72 GMWilwood 140-10996 FDL 11 Inch Pro Series Front Brake Kit, 1967-72 GMWilwood 140-10996 FDL 11 Inch Pro Series Front Brake Kit, 1967-72 GM
Wilwood 140-10996 FDL 11 Inch Pro Series Front Brake Kit, 1967-72 GM

Click image to enlarge

Speeday Motors Logo
X
Wilwood 140-10996 FDL 11 Inch Pro Series Front Brake Kit, 1967-72 GM

Details

Reviews

Q & A

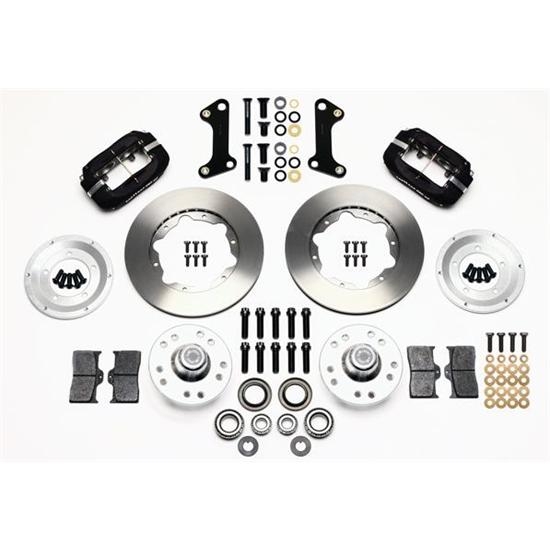

What's in the Box

Need a big brake package that can scrub off serious speed and look great doing it?Wilwood's Forged Dynalite Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for traditionaldisc brakespindle applications onclassic Chevymuscle cars. All kits can be used with manual or power boost master cylinders.

11.00" Pro Series Brakes feature:

  • Forged 4-pistonDynalite Calipers - black finish
  • 11.00" diameter Ultralite HP 30 Vane rotors - plain finish
  • Wilwood BP-10SmartPads - low noise, low dust
  • Lightweight anodized aluminum Pro Street hubs
  • Provides plenty of clearance inside popular 15” wheels.

All kits include calipers, hubs, rotors, brackets and hardware needed. Brake hoses sold separately.

835-14010996 Instructions (PDF)



Application

1964 Buick Skylark All
1964 Buick Special All
1964 Buick Sportwagon All
1964 Chevrolet Chevelle All
1964 Chevrolet Chevy II All
1964 Chevrolet El Camino All
1964 Oldsmobile Cutlass All
1964 Oldsmobile F85 All
1964 Oldsmobile Vista Cruiser All
1964 Pontiac GTO All
1964 Pontiac LeMans All
1964 Pontiac Tempest All
1965 Buick Gran Sport All
1965 Buick Skylark All
1965 Buick Special All
1965 Buick Sportwagon All
1965 Chevrolet Chevelle Drum Brake Spindle
1965 Chevrolet Chevy II Drum Brake Spindle
1965 Chevrolet El Camino Drum Brake Spindle
1965 Oldsmobile Cutlass All
1965 Oldsmobile F85 All
1965 Oldsmobile Vista Cruiser All
1965 Pontiac GTO All
1965 Pontiac LeMans All
1965 Pontiac Tempest All
1966 Buick Gran Sport All
1966 Buick Skylark All
1966 Buick Special All
1966 Buick Sportwagon All
1966 Chevrolet Chevelle Drum Brake Spindle
1966 Chevrolet Chevy II Drum Brake Front
1966 Chevrolet El Camino Drum Brake Spindle
1966 Oldsmobile Cutlass All
1966 Oldsmobile F85 All
1966 Oldsmobile Vista Cruiser All
1966 Pontiac GTO All
1966 Pontiac LeMans All
1966 Pontiac Tempest All
1967 Buick Gran Sport Disc Brake Spindle
1967 Buick Gran Sport Drum Brake Front
1967 Buick Skylark Disc Brake Spindle
1967 Buick Skylark Drum Brake Spindle
1967 Buick Special Disc Brake Spindle
1967 Buick Special Drum Brake Spindle
1967 Buick Sportwagon Disc Brake Spindle
1967 Buick Sportwagon Drum Brake Front
1967 Chevrolet Camaro Disc Brake Spindle
1967 Chevrolet Camaro Drum Brake Front
1967 Chevrolet Chevelle Disc Brake Spindle
1967 Chevrolet Chevelle Drum Brake Front
1967 Chevrolet Chevy II Disc Brake Spindle
1967 Chevrolet Chevy II Drum Brake Front
1967 Chevrolet El Camino Disc Brake Spindle
1967 Chevrolet El Camino Drum Brake Spindle
1967 Oldsmobile 442 Disc Brake Spindle
1967 Oldsmobile Cutlass Disc Brake Spindle
1967 Oldsmobile Cutlass Drum Brake Spindle
1967 Oldsmobile F85 Disc Brake Spindle
1967 Oldsmobile F85 Drum Brake Spindle
1967 Oldsmobile Vista Cruiser Disc Brake Spindle
1967 Oldsmobile Vista Cruiser Drum Brake Spindle
1967 Pontiac Firebird Disc Brake Spindle
1967 Pontiac Firebird Drum Brake Spindle
1967 Pontiac GTO Disc Brake Spindle
1967 Pontiac GTO Drum Brake Spindle
1967 Pontiac LeMans Disc Brake Spindle
1967 Pontiac LeMans Drum Brake Spindle
1967 Pontiac Tempest Disc Brake Spindle
1967 Pontiac Tempest Drum Brake Spindle
1968 Buick Skylark Disc Brake Spindle
1968 Buick Skylark Drum Brake Spindle
1968 Buick Special Disc Brake Spindle
1968 Buick Special Drum Brake Spindle
1968 Buick Sportwagon Disc Brake Spindle
1968 Buick Sportwagon Drum Brake Front
1968 Chevrolet Camaro Disc Brake Spindle
1968 Chevrolet Camaro Drum Brake Front
1968 Chevrolet Camaro Z/28 w/ 4 Wheel Disc
1968 Chevrolet Chevelle Disc Brake Spindle
1968 Chevrolet Chevelle Drum Brake Front
1968 Chevrolet Chevy II Disc Brake Spindle
1968 Chevrolet Chevy II Drum Brake Front
1968 Chevrolet El Camino Disc Brake Spindle
1968 Chevrolet El Camino Drum Brake Spindle
1968 Oldsmobile 442 Disc Brake Spindle
1968 Oldsmobile Cutlass Disc Brake Spindle
1968 Oldsmobile Cutlass Drum Brake Spindle
1968 Oldsmobile F85 Disc Brake Spindle
1968 Oldsmobile F85 Drum Brake Spindle
1968 Oldsmobile Vista Cruiser Disc Brake Spindle
1968 Oldsmobile Vista Cruiser Drum Brake Spindle
1968 Pontiac Firebird Disc Brake Spindle
1968 Pontiac Firebird Drum Brake Spindle
1968 Pontiac GTO Disc Brake Spindle
1968 Pontiac GTO Drum Brake Spindle
1968 Pontiac LeMans Disc Brake Spindle
1968 Pontiac LeMans Drum Brake Spindle
1968 Pontiac Tempest Disc Brake Spindle
1968 Pontiac Tempest Drum Brake Spindle
1969 Buick Skylark Disc Brake Spindle
1969 Buick Skylark Drum Brake Spindle
1969 Buick Special Disc Brake Spindle
1969 Buick Special Drum Brake Spindle
1969 Buick Sportwagon Disc Brake Spindle
1969 Buick Sportwagon Drum Brake Front
1969 Chevrolet Camaro Disc Brake Spindle
1969 Chevrolet Camaro Drum Brake Front
1969 Chevrolet Camaro Z/28 w/ 4 Wheel Disc
1969 Chevrolet Chevelle Disc Brake Spindle
1969 Chevrolet Chevelle Drum Brake Front
1969 Chevrolet El Camino Disc Brake Spindle
1969 Chevrolet El Camino Drum Brake Spindle
1969 Chevrolet Nova Disc Brake Spindle
1969 Chevrolet Nova Drum Brake Front
1969 Oldsmobile 442 Disc Brake Spindle
1969 Oldsmobile Cutlass Disc Brake Spindle
1969 Oldsmobile Cutlass Drum Brake Spindle
1969 Oldsmobile F85 Disc Brake Spindle
1969 Oldsmobile F85 Drum Brake Spindle
1969 Oldsmobile Vista Cruiser Disc Brake Spindle
1969 Oldsmobile Vista Cruiser Drum Brake Spindle
1969 Pontiac Firebird Disc Brake Spindle
1969 Pontiac Firebird Drum Brake Spindle
1969 Pontiac Grand Prix Disc Brake Spindle
1969 Pontiac Grand Prix Drum Brake Spindle
1969 Pontiac GTO Disc Brake Spindle
1969 Pontiac GTO Drum Brake Spindle
1969 Pontiac LeMans Disc Brake Spindle
1969 Pontiac LeMans Drum Brake Spindle
1969 Pontiac Tempest Disc Brake Spindle
1969 Pontiac Tempest Drum Brake Spindle
1970 Buick Skylark Disc Brake Spindle
1970 Buick Skylark Drum Brake Spindle
1970 Buick Sportwagon Disc Brake Spindle
1970 Buick Sportwagon Drum Brake Front
1970 Chevrolet Chevelle Disc Brake Spindle
1970 Chevrolet Chevelle Drum Brake Front
1970 Chevrolet El Camino Disc Brake Spindle
1970 Chevrolet El Camino Drum Brake Spindle
1970 Chevrolet Monte Carlo Disc Brake Spindle
1970 Chevrolet Nova Disc Brake Spindle
1970 Chevrolet Nova Drum Brake Front
1970 Oldsmobile 442 Disc Brake Spindle
1970 Oldsmobile 442 w/ O.A.I. Drum Brake Spindles
1970 Oldsmobile Cutlass Disc Brake Spindle
1970 Oldsmobile Cutlass Drum Brake Spindle
1970 Oldsmobile Cutlass w/ O.A.I. Drum Brake Spindles
1970 Oldsmobile F85 Disc Brake Spindle
1970 Oldsmobile F85 Drum Brake Spindle w/o O.A.I
1970 Oldsmobile F85 w/ O.A.I. Drum Brake Spindles
1970 Oldsmobile Vista Cruiser Disc Brake Spindle
1970 Oldsmobile Vista Cruiser Drum Brake Spindle
1970 Pontiac Grand Prix Disc Brake Spindle
1970 Pontiac GTO Disc Brake Spindle
1970 Pontiac GTO Drum Brake Spindle
1970 Pontiac LeMans Disc Brake Spindle
1970 Pontiac LeMans Drum Brake Spindle
1970 Pontiac Tempest Disc Brake Spindle
1970 Pontiac Tempest Drum Brake Spindle
1971 Buick Skylark Disc Brake Spindle
1971 Buick Sportwagon Disc Brake Spindle
1971 Chevrolet Chevelle Disc Brake Spindle
1971 Chevrolet Chevelle Drum Brake Front
1971 Chevrolet El Camino Disc Brake Spindle
1971 Chevrolet El Camino Drum Brake Spindle
1971 Chevrolet Monte Carlo Disc Brake Spindle
1971 Chevrolet Nova Disc Brake Spindle
1971 Chevrolet Nova Drum Brake Front
1971 GMC Sprint Disc Brake Spindle
1971 GMC Sprint Drum Brake Spindle
1971 Oldsmobile 442 Disc Brake Spindle
1971 Oldsmobile 442 w/ O.A.I. Drum Brake Spindles
1971 Oldsmobile Cutlass Disc Brake Spindle
1971 Oldsmobile Cutlass Drum Brake Spindle
1971 Oldsmobile Cutlass w/ O.A.I. Drum Brake Spindles
1971 Oldsmobile F85 Disc Brake Spindle
1971 Oldsmobile F85 Drum Brake Spindle w/o O.A.I
1971 Oldsmobile F85 w/ O.A.I. Drum Brake Spindles
1971 Oldsmobile Vista Cruiser Disc Brake Spindle
1971 Oldsmobile Vista Cruiser Drum Brake Spindle
1971 Pontiac Grand Prix Disc Brake Spindle
1971 Pontiac GTO Disc Brake Spindle
1971 Pontiac GTO Drum Brake Spindle
1971 Pontiac LeMans Disc Brake Spindle
1971 Pontiac LeMans Drum Brake Spindle
1971 Pontiac Ventura II Disc Brake Spindle
1971 Pontiac Ventura II Drum Brake Front
1972 Buick Skylark Disc Brake Spindle
1972 Buick Sportwagon Disc Brake Spindle
1972 Chevrolet Chevelle Disc Brake Spindle
1972 Chevrolet Chevelle Drum Brake Front
1972 Chevrolet El Camino Disc Brake Spindle
1972 Chevrolet El Camino Drum Brake Spindle
1972 Chevrolet Monte Carlo Disc Brake Spindle
1972 Chevrolet Nova Disc Brake Spindle
1972 Chevrolet Nova Drum Brake Front
1972 GMC Sprint Disc Brake Spindle
1972 GMC Sprint Drum Brake Spindle
1972 Oldsmobile Cutlass Disc Brake Spindle
1972 Oldsmobile Cutlass Drum Brake Spindle
1972 Oldsmobile Cutlass w/ O.A.I. Drum Brake Spindles
1972 Oldsmobile F85 Disc Brake Spindle
1972 Oldsmobile F85 Drum Brake Spindle w/o O.A.I
1972 Oldsmobile F85 w/ O.A.I. Drum Brake Spindles
1972 Oldsmobile Vista Cruiser Disc Brake Spindle
1972 Oldsmobile Vista Cruiser Drum Brake Spindle
1972 Pontiac Grand Prix Disc Brake Spindle
1972 Pontiac GTO Disc Brake Spindle
1972 Pontiac LeMans Disc Brake Spindle
1972 Pontiac LeMans Drum Brake Spindle
1972 Pontiac Ventura II Disc Brake Spindle
1972 Pontiac Ventura II Drum Brake Front
1973 Buick Apollo Disc Brake Spindle
1973 Buick Apollo Drum Brake Front
1973 Chevrolet Nova Disc Brake Spindle
1973 Chevrolet Nova Drum Brake Front
1973 Oldsmobile Omega Disc Brake Spindle
1973 Oldsmobile Omega Drum Brake Front
1973 Pontiac Ventura II Disc Brake Spindle
1973 Pontiac Ventura II Drum Brake Front
1974 Buick Apollo Disc Brake Spindle
1974 Buick Apollo Drum Brake Front
1974 Chevrolet Nova Disc Brake Spindle
1974 Chevrolet Nova Drum Brake Front
1974 Oldsmobile Omega Disc Brake Spindle
1974 Oldsmobile Omega Drum Brake Front
1974 Pontiac Ventura II Disc Brake Spindle
1974 Pontiac Ventura II Drum Brake Front

Notes

  1. OEM rubber brake hoses generally cannot be adapted to Wilwood calipers. The caliper inlet fitting is a 1/8-27 NPT. The preferred method is to use steel adapter fittings at the caliper, either straight, 45 or 90 degree and enough steel braided line to allow for full suspension travel and turning radius, lock to lock.
  2. Kit fits some 14" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

Specs

Wilwood Kit Information (all kits):

  • OE Hub Offset: +.18"
  • Spindle Type: Disc
  • Piston Area (Inches Squared): 4.8"
  • Piston Type: Stainless
  • Brake Pad Area (Inches Squared): 6.36"
  • Brake Pad Volume (Inches Cubed): 2.1"
  • Rotor Material: Iron
  • Rotor Width: .81"
  • Wheel Stud Diameter - 1/2"-20

You may also be interested in:

Wilwood 140-7675 FDL 12.19 Inch Front Brake Hub Kit, 1967-72 GM


Need a big brake package that can scrub off serious speed and look great doing it?Wilwood's Forged Dynalite Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for traditionaldisc brakespindle applications onclassic Chevymuscle cars. All kits can be used with manual or power boost master cylinders.

12.19" Big Brake Series features:

  • Forged 4-pistonDynalite Calipers - black finish
  • 12.19" diameter Ultralite HP 32 Vane rotors - plain finish
  • Wilwood BP-10SmartPads - low noise, low dust
  • Lightweight anodized aluminum Pro Street hubs
  • Minimum wheel diameter of 16"

All kits include calipers, hubs, rotors, brackets and hardware needed. Brake hoses sold separately.

835-1407675 Instructions (PDF)



Gorilla Automotive LN41188 Chrome Acorn Lug Nut, 1/2 Inch Thread

  • Chrome plated steel lug nut
  • 1/2"-20 fine thread
  • Tapered 60° seat design
  • Sold each
Gorilla Automotive 41783 Wheel Installation Kit, 1/2 Inch


Everything you need to install 4 wheels! Everything is prepackaged and clearly marked for easy use.  Gorilla's wheel installation kits contain the original Gorilla Wheel Locks, providing the very best in wheel security possible.

  • 1/2" thread size
  • 5 lug bolt pattern
  • bulge acorn lug style

Kit includes:

  • 16 Chrome 60º acorn/bulge lug nuts
  • 4 wheel locks & key
Gorilla Automotive 71481N 1/2 Inch-20 Thread Acorn Wheel Locks, 60 Degree Taper
                        The original design that set the standard for wheel security, Gorilla Locks are the most advanced and unique locks on the market today.  An external "Security Pattern" makes the Gorilla Lock virtually impossible to remove without the matching key.  Made from case-hardened steel and chrome plated for lasting beauty, these locks are designed for unsurpassed security.  Each set of Gorilla Locks comes with a key code label, complete with ordering information for replacement keys.
  • 1/2"-20
  • 60° taper
  • Closed end bulge acorn style
  • Chrome plated
  • Package of 4 plus 3/4" key
Gorilla Automotive 73681N 1/2 Inch-20 Thread Mag Wheel Locks, 3/4 Inch Shank
                        The original design that set the standard for wheel security, Gorilla Locks are the most advanced and unique locks on the market today.  An external "Security Pattern" makes the Gorilla Lock virtually impossible to remove without the matching key.  Made from case-hardened steel and chrome plated for lasting beauty, these locks are designed for unsurpassed security.  Each set of Gorilla Locks comes with a key code label, complete with ordering information for replacement keys.
  • 1/2" size
  • 3/4" shank
  • Closed end
  • Chrome plated
  • Includes centered round washers
  • Package of 4 plus 13/16" key
Gorilla Automotive 70087B 1/2 Inch-20 Open Rally Wheel Style Lug Nuts
                        Gorilla offers you the most complete selection of high-quality lug nuts   available on the market today!  These triple chrome plated wheel  lug  nuts feature long lasting durability and are precision engineered  to  meet or exceed manufacturer's specifications.
  • Short OEM style
  • Clears center cap retainer ring on GM style Rally Wheels
  • 1/2"-20
  • 60º taper seat - NON Bulge
  • 13/16" Hex size
  • Open end
  • FOR USE ON STEEL WHEELS ONLY
  • Set of 4
Gorilla Automotive 73087B 1/2 Inch-20 Open Mag Wheel Lug Nuts, 3/4 Inch Shank
                        Gorilla offers you the most complete selection of high-quality lug nuts  available on the market today!  These triple chrome plated mag wheel lug  nuts feature long lasting durability and are precision engineered to  meet or exceed manufacturer's specifications.
  • Open end
  • 1/2"-20
  • 3/4" shank
  • Chrome plated
  • Includes centered round washers
  • Package of 4
Gorilla Automotive 73187B 1/2 Inch-20 Standard Mag Wheel Lug Nuts, 3/4 Inch Shank
                        Gorilla offers you the most complete selection of high-quality lug nuts   available on the market today!  These triple chrome plated mag wheel  lug  nuts feature long lasting durability and are precision engineered  to  meet or exceed manufacturer's specifications.
  • Closed end
  • 1/2"-20
  • 3/4" shank
  • Chrome plated
  • Package of 4
Wilwood 150-8850 Poly-D 10 Double Quick Change Brake Pad


Double Quick-Change pads are compatible with our Wilwood Forged Dynalite and Billet Dynalite calipers.

  • Medium friction, low to medium temperarture range.
  • Good cold torque response.
  • Low to moderate wear rate

Pads are sold each. (Will need 2 per caliper.)

Tech Tip:  Only use full metallic pads on coated rotors.

Brake Pad Brochure (PDF)

Brake Pad Brand Guide (Link)

Learn how to properly Bed-In your brake pads by reading our tech article.  Bedding-In Brake Pad Procedure.

8353991 Instructions (PDF)

Wilwood 120-6816 Forged Dynalite Caliper, 1.75 Piston / .81 Inch Disc


The Forged Billet Dynalite is widely used in Road Race, Late Model Dirt, and Open Wheel motorsports. The latest applied developments and innovations in caliper design and manufacturing processes have resulted in substantial improvements in strength and performance over all comparable models.

Forged Dynalites are the strongest calipers in the class, with weights starting at 2.80 pounds. Without even considering the overall greater strength and reliability of the forging, the reduced deflection tendencies and the resulting decrease in fluid volume displacement translate to increased clamping efficiency with less pedal travel. The bottom line is a taller pedal and better stopping power.

  • Pistion Count: 4
  • Area (in²): 4.80
  • Piston Type: Stainless
  • Fits .75" - 0.81" wide by 10" - 13.06" diameter rotors
  • Pad Area (in²): 6.36
  • Pad Volume (in³): 2.1
  • Mount Type: Lug
  • Mount Side: Universal
  • Weight(Lbs): 2.80

8351206816 Instructions (PDF)

Speedway G-Comp 2 Inch Drop Performance Spindles for GM A/F/X Body Cars
                        Introducing G-Comp GM muscle car performance suspension parts from Speedway Motors. These one-piece forged steel spindles are designed to work with GM A/F/X body cars. GComp spindles are engineered for lower ride height, improved negative camber gain and positive caster gain, plus more adjustable alignment. They correspond with OEM parts and provide an overall 2" drop in ride height.
  • Fits 1967-1969 Camaro, 1968-1972 Nova, 1964-1972 Chevelle
  • One-piece forged steel construction
  • Provides 2-inch dropped ride height
  • Upper ball joint raised and relocated to provide added negative camber gain
  • Improved alignment adjustability
  • Utilizes OEM bolt-on steering arms
  • Works with OEM and aftermarket disc brake kits (utilizing OEM disc brake spindle)
