Wilwood 140-1501-B FDL Pro Series Drag Disc Brake Kit, 1937-49 Ford

Free Shipping Free Shipping
Specs
Sold in Quantity:
Kit
Bolt Pattern:
Dual: 5 on 4.5"/4.75"
Rotor Diameter:
10.75
Caliper Pistons:
Four
Rotor Construction:
Solid
Caliper Finish:
Anodized
Rotor Location:
Front
Rotor Shape:
Round
Thread Pitch:
1/2"-20
Hardware Included:
Yes
Drilled:
No
Slotted:
No
Stud Diameter:
.50
Rotor Thickness:
.35
Notes
Includes rotors, hubs, bearings and seals, calipers, caliper brackets, and pads.

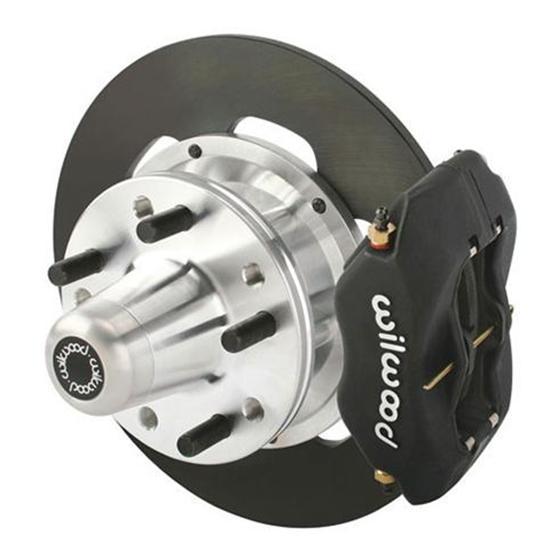

Wilwood 140-1501-B FDL Pro Series Drag Disc Brake Kit, 1937-49 Ford
Wilwood 140-1501-B FDL Pro Series Drag Disc Brake Kit, 1937-49 Ford
Wilwood 140-1501-B FDL Pro Series Drag Disc Brake Kit, 1937-49 Ford
Wilwood 140-1501-B FDL Pro Series Drag Disc Brake Kit, 1937-49 Ford

Click image to enlarge

Details

Reviews (4)

Q & A (1)

What's in the Box

Info

Wilwood Forged Dynalite Pro-Series Front Hub Kits offer a complete disc brake upgrade solution for your 1937-48 Ford spindles. Based on the venerable forged billet Dynalite caliper, these versatile kits suit the braking requirements for a Model T type or T bucket type chassis. Medium Duty kits are recommended for use on T bucket type cars up to 2200 pounds with rear discs or on cars up to 2000 pounds with rear drums.

Most kits require no modifications for installation, and provide plenty of clearance inside popular 15” wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders.

  • Forged 4-piston Dynalite Calipers
  • 10.75" diameter solid steel rotors - black oxide finish
  • Wilwood BP-10 SmartPads - low noise, low dust
  • 3" Lightweight anodized aluminum hubs
  • 1/2"-20 wheel studs included
  • The hub snouts are tapered, and have a maximum diameter of 3.00" at the base of the hub, and 3.00" in length

1937-1948 Ford Disc Brake Installation Instructions (PDF)

Wilwood Kit Exploded View (GIF)

*NOTE*: See Notes tab for important install info.

Item Details

Black finish calipers & rotors

Application

  • Ford 1 Ton Pickup 1937-1947 Base
  • Ford 1/2 Ton Pickup 1937-1947 Base
  • Ford 3/4 Ton Pickup 1937-1947 Base
  • Ford Anglia 1946-1949 Base
  • Ford Deluxe 1939 All Tudor & Fordor (922A)
  • Ford Deluxe 1940-1948 Base
  • Ford F Series 1948-1949 Base
  • Ford F1 1948-1949 Base
  • Ford F2 1948-1949 Base
  • Ford F3 1948-1949 Base
  • Ford F4 1948-1949 Base
  • Ford Ford 1949 Base
  • Ford Model 1 GA Truck 1941 Base
  • Ford Model 11 A 1941 Base
  • Ford Model 2 GA Special 1942 Base
  • Ford Model 21 A Deluxe 1942 Base
  • Ford Model 74 1937 All Tudor / Fordor / SW
  • Ford Model 78 1937 All Tudor / Fordor / SW
  • Ford Model 81 A 1938 All Tudor / Fordor / SW
  • Ford Model 82 A 1938 All Tudor / Fordor / SW
  • Ford Model 85 1938 Base
  • Ford Pickup 1940 Base
  • Ford Prefect 1946-1949 Base
  • Ford Sedan Delivery 1937-1947 Base
  • Ford Standard 1939-1940 Base
  • Ford Super Deluxe 1941-1948 Base
  • Ford Taunus 1948-1949 Base

Notes

  1. Medium Duty kits are recommended for use on cars up to 2200 pounds with rear discs or on cars up to 2000 pounds with rear drums.
  2. Kits with 10.75" rotor fits some 14" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
  3. If using steel wheels with this kit, you will also need to purchase (2) steel shims part 835-3007500. These shims will prevent steel wheelsfrom galling the aluminum hub.
  4. Rubber brake hoses generally cannot be adapted to Wilwood calipers. The caliper inlet fitting is a 1/8-27 NPT. The preferred method is to use steel adapter fittings at the caliper, either straight, 45 or 90 degree and enough steel braided line to allow for full suspension travel and turning radius, lock to lock.

Specs


Customer Reviews

Rated 4.8 out of 5 by 4 reviewers.
RATING BREAKDOWN
4 reviews
5 Stars
3
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Moe
Verified Purchaser
Verified Reviewer
Cleveland,Tn.

Good parts , if mparts weren't missing

May 09, 2016
Wilwood parts are great the only thing wrong with my order is missing parts. Someone cut one of the skin packs with bolts and shims. some of the shims are missing. Speedway should put a stop to workers robbing parts from kits.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

rough rider
Verified Purchaser
Elma ny

Nothing but the best for my ride!

June 20, 2015
The best on the market looks great and WORKS GREAT!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

John
Bellport NY

looked to nice to use, perfect fit

January 30, 2012
top quality
Pros:
  • No Fade
  • Easy To Install
  • Lightweight
  • Decreased Stopping Distance
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

John
Bellport NY

looked to nice to use, perfect fit

January 30, 2012
top quality
Pros:
  • Lightweight
  • Easy To Install
  • No Fade
  • Decreased Stopping Distance
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

1 questions : 1 answers

1 answers

Disc brake conversion I have a 1925 Model T, C cab pickup street rod with Ford 40's style brakes on a dropped axel. It has a bolt on steering rod and aluminum 14" Centerline wheels. The deep of the wheels are all in the front of the hub and does not extend past the brake drum or backing plates. Will this kit work for my application. Thanks

Rv5ver
Cloverdale, CA 95425, USA
December 18, 2013

Disc brake conversion I have a 1925 Model T, C cab pickup street rod with Ford 40's style brakes on a dropped axel. It has a bolt on steering rod and aluminum 14" Centerline wheels. The deep of the wheels are all in the front of the hub and does not extend past the brake drum or backing plates. Will this kit work for my application. Thanks

Answers

December 19, 2013
EricM
The diameter needed for wheel clearance is approximately 12 ½” and the main concern is the shape of the wheel. The calipers set within ¾” from the mount surface. To check to see if your wheels will fit use a straight edge at least 12” long setting across the center of the wheel opening on the back and measuring down to the mount surface of the wheel anything over ¾” would be a clearance issue when bolting on the wheel.
