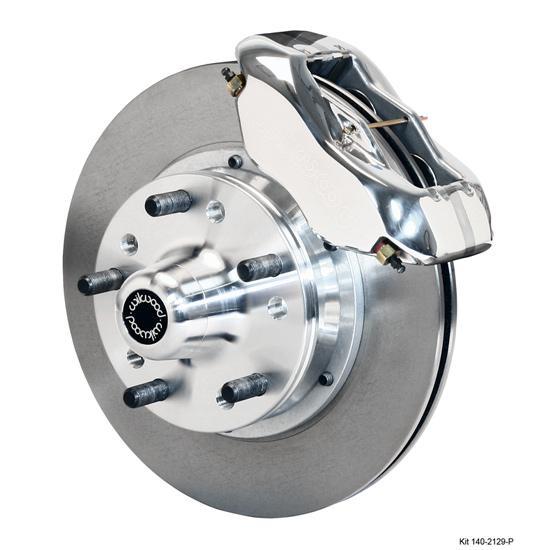

Wilwood 140-11013-P 1937-1948 Ford Heavy Duty Polished Disc Brakes

SAME DAY SHIPPING! Order within the next 2 hours 36 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Sold in Quantity:
Kit
Rotor Diameter:
11.00
Bolt Pattern:
Dual: 5 on 4.5"/4.75"
Caliper Pistons:
Four
Minimum Recommended Wheel Diameter:
14 Inch
Caliper Finish:
Polished
Rotor Construction:
Vented
Rotor Location:
Front
Rotor Shape:
Round
Thread Pitch:
1/2"-20
MFG. Part #:
140-11013-P
Hardware Included:
Yes
Garage Sale:
No
Drilled:
No
Slotted:
No
Stud Diameter:
.50
Rotor Thickness:
.81
Notes
Includes rotors, hubs, bearings and seals, calipers, caliper brackets, and pads.
Wilwood 140-11013-P 1937-1948 Ford Heavy Duty Polished Disc Brakes
Wilwood 140-11013-P 1937-1948 Ford Heavy Duty Polished Disc Brakes
Wilwood 140-11013-P 1937-1948 Ford Heavy Duty Polished Disc Brakes

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Wilwood Forged Dynalite Pro-Series Front Hub Kits offer a complete disc brake upgrade solution for your 1937-48 Ford spindles. Based on the venerable forged billet Dynalite caliper, these versatile kits suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast.

Most kits require no modifications for installation, and provide plenty of clearance inside popular 15” wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders.

Wilwood Heavy Duty Kits Feature:

  • Forged 4-piston Dynalite Calipers
  • 11.00" diameter Ultralite HP 30 Vane iron rotors - plain finish
  • Wilwood BP-10 SmartPads - low noise, low dust
  • Lightweight anodized aluminum Pro Street hubs
835-1402260P Instructions (PDF)

*NOTE*: See Notes tab for important install info.

Item Details

Polished calipers, plain rotors

Notes

  1. If using steel wheels with this kit, you will also need to purchase (2) steel shims part 835-3007500. These shims will prevent steel wheelsfrom galling the aluminum hub.
  2. Rubber brake hoses generally cannot be adapted to Wilwood calipers. The caliper inlet fitting is a 1/8-27 NPT. The preferred method is to use steel adapter fittings at the caliper, either straight, 45 or 90 degree and enough steel braided line to allow for full suspension travel and turning radius, lock to lock.

Specs

Heavy Duty Kit:

  • Rotor - 11.00" diameter x .81" thick
  • Both 5 on 4-1/2" and 5 on 4-3/4" bolt patterns
  • 1/2"-20 wheel studs included
  • Wilwood Kit Exploded View (GIF)

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

wilwood 14011013p 37-48 ford hd disc brake will the stock vw wide 5 205 15 wheels fit ok????

ringo
March 09, 2015

wilwood 14011013p 37-48 ford hd disc brake will the stock vw wide 5 205 15 wheels fit ok????

Answers

March 10, 2015
EricM
No this does not use VW wheel bolt pattern. This hub has 5 on 4 1/2" and 5 on 4 3/4" bolt patterns.
