Wilwood 140-11013 FDL 11 Inch Pro Series Front Brake Kit, 1937-48 Ford

Specs
Sold in Quantity:
Kit
Bolt Pattern:
Dual: 5 on 4.5"/4.75"
Stud Diameter:
.50
Thread Pitch:
1/2"-20
Hardware Included:
Yes
Rotor Diameter:
11.00
Caliper Pistons:
Four
MFG. Part #:
140-11013
Rotor Thickness:
.81
Minimum Recommended Wheel Diameter:
14 Inch
Caliper Finish:
Anodized
Rotor Construction:
Vented
Garage Sale:
No
Rotor Location:
Front
Rotor Shape:
Round
Drilled:
No
Slotted:
No
Wheel Diameter:
14
Spindle Type:
Factory Drum Spindle
Total Piston Area:
4.80
Pad Area:
6.36
Pad Volume:
2.1
Rotor Width:
0.81
Vane Count:
30 V
Rotor Style:
Plain Face
Bedded:
No
Balanced:
No
Compound:
BP-10
Stud Diameter 2:
1/2-20
Mount Type:
Lug
Caliper Type:
Forged Dynalite
Piston Type:
Stainless
Rotor Type:
Ultralite HP 30
Rotor Surface Finish:
Natural
Rotor Material Type:
Iron
Notes
Includes rotors, hubs, bearings and seals, calipers, caliper brackets, hardware, and pads.
Wilwood 140-11013 FDL 11 Inch Pro Series Front Brake Kit, 1937-48 FordWilwood 140-11013 FDL 11 Inch Pro Series Front Brake Kit, 1937-48 FordWilwood 140-11013 FDL 11 Inch Pro Series Front Brake Kit, 1937-48 Ford

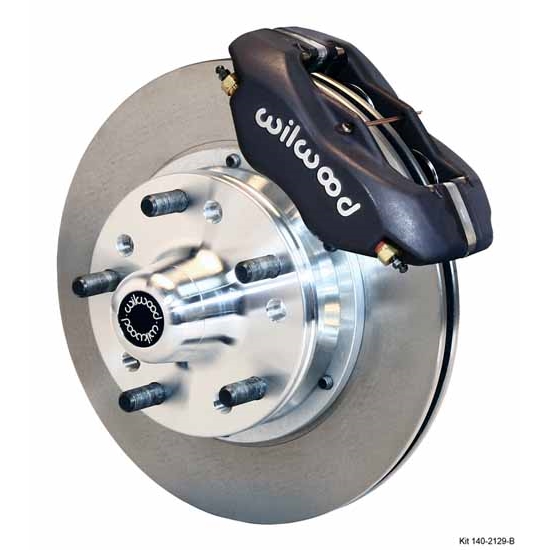

Wilwood 140-11013 FDL 11 Inch Pro Series Front Brake Kit, 1937-48 Ford

Click image to enlarge

Speeday Motors Logo
X
Wilwood 140-11013 FDL 11 Inch Pro Series Front Brake Kit, 1937-48 Ford

Details

Reviews

Q & A

What's in the Box

Wilwood Forged Dynalite Pro-Series Front Hub Kits offer a complete disc brake upgrade solution for your 1937-48 Ford spindles. Based on the venerable forged billet Dynalite caliper, these versatile kits suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast.

Most kits require no modifications for installation, and provide plenty of clearance inside popular 15” wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders.

Wilwood Heavy Duty Kits Feature:

  • Forged 4-piston Dynalite Calipers
  • 11.00" diameter Ultralite HP 30 Vane iron rotors - plain finish
  • Wilwood BP-10 SmartPads - low noise, low dust
  • Lightweight anodized aluminum Pro Street hubs
835-14011013 Instructions (PDF)

*NOTE*: See Notes tab for important install info.

Application

1937 Ford 1 Ton Pickup Base
1937 Ford 1/2 Ton Pickup Base
1937 Ford 3/4 Ton Pickup Base
1937 Ford Model 74 Base All Tudor / Fordor / SW
1937 Ford Model 78 Base All Tudor / Fordor / SW
1937 Ford Sedan Delivery Base
1938 Ford 1 Ton Pickup Base
1938 Ford 1/2 Ton Pickup Base
1938 Ford 3/4 Ton Pickup Base
1938 Ford Model 81 A All Tudor / Fordor / SW
1938 Ford Model 82 A All Tudor / Fordor / SW
1938 Ford Model 85 Base
1938 Ford Sedan Delivery Base
1939 Ford 1 Ton Pickup Base
1939 Ford 1/2 Ton Pickup Base
1939 Ford 3/4 Ton Pickup Base
1939 Ford Deluxe Base All Tudor & Fordor (922A)
1939 Ford Sedan Delivery Base
1939 Ford Standard Base
1940 Ford 1 Ton Pickup Base
1940 Ford 1/2 Ton Pickup Base
1940 Ford 3/4 Ton Pickup Base
1940 Ford Deluxe Base
1940 Ford Pickup Base
1940 Ford Sedan Delivery Base
1940 Ford Standard Base
1941 Ford 1 Ton Pickup Base
1941 Ford 1/2 Ton Pickup Base
1941 Ford 3/4 Ton Pickup Base
1941 Ford Deluxe Base
1941 Ford Model 1 GA Truck Base
1941 Ford Model 11 A Base
1941 Ford Sedan Delivery Base
1941 Ford Super Deluxe Base
1942 Ford 1 Ton Pickup Base
1942 Ford 1/2 Ton Pickup Base
1942 Ford 3/4 Ton Pickup Base
1942 Ford Model 2 GA Special Base
1942 Ford Model 21 A Deluxe Base
1942 Ford Sedan Delivery Base
1942 Ford Super Deluxe Base
1943 Ford 1 Ton Pickup Base
1943 Ford 1/2 Ton Pickup Base
1943 Ford 3/4 Ton Pickup Base
1944 Ford 1 Ton Pickup Base
1944 Ford 1/2 Ton Pickup Base
1944 Ford 3/4 Ton Pickup Base
1945 Ford 1 Ton Pickup Base
1945 Ford 1 Ton Pickup Base
1945 Ford 1/2 Ton Pickup Base
1945 Ford 1/2 Ton Pickup Base
1945 Ford 3/4 Ton Pickup Base
1946 Ford 1 Ton Pickup Base
1946 Ford 1/2 Ton Pickup Base
1946 Ford 3/4 Ton Pickup Base
1946 Ford Anglia Base
1946 Ford Deluxe Base
1946 Ford Prefect Base
1946 Ford Sedan Delivery Base
1946 Ford Super Deluxe Base
1947 Ford 1 Ton Pickup Base
1947 Ford 1/2 Ton Pickup Base
1947 Ford 3/4 Ton Pickup Base
1947 Ford Anglia Base
1947 Ford Deluxe Base
1947 Ford Prefect Base
1947 Ford Sedan Delivery Base
1947 Ford Super Deluxe Base
1948 Ford Anglia Base
1948 Ford Deluxe Base
1948 Ford F Series Base
1948 Ford F1 Base
1948 Ford F2 Base
1948 Ford F3 Base
1948 Ford F4 Base
1948 Ford Prefect Base
1948 Ford Super Deluxe Base
1948 Ford Taunus Base
1949 Ford Anglia Base
1949 Ford F Series Base
1949 Ford F1 Base
1949 Ford F2 Base
1949 Ford F3 Base
1949 Ford F4 Base
1949 Ford Ford Base
1949 Ford Prefect Base

Notes

  1. If using steel wheels with this kit, you will also need to purchase (2) steel shims part 835-3007500. These shims will prevent steel wheelsfrom galling the aluminum hub.
  2. Rubber brake hoses generally cannot be adapted to Wilwood calipers. The caliper inlet fitting is a 1/8-27 NPT. The preferred method is to use steel adapter fittings at the caliper, either straight, 45 or 90 degree and enough steel braided line to allow for full suspension travel and turning radius, lock to lock.

Specs

Heavy Duty Kit:

  • Rotor - 11.00" diameter x .81" thick
  • Both 5 on 4-1/2" and 5 on 4-3/4" bolt patterns
  • 1/2"-20 wheel studs included
  • Wilwood Kit Exploded View (GIF)

Item Details

Black finish calipers, plain rotors
