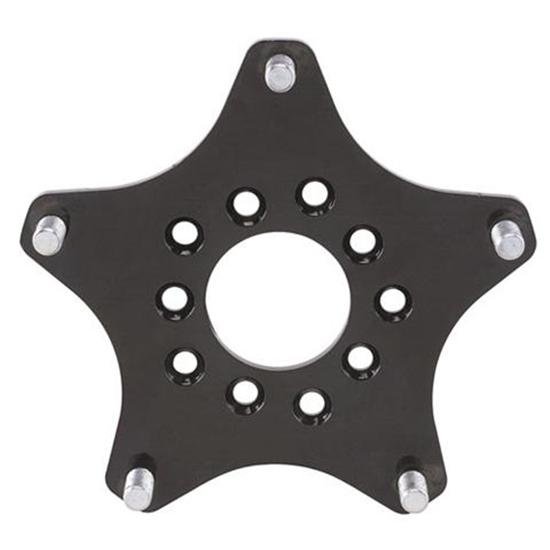

Wide 5 Wheel Adapter, 5 on 4-1/2 and 5 on 5 Inch

Specs
Material Type:
Steel
Sold in Quantity:
Each
Overall Thickness:
.38
Finish:
Painted
Inside Diameter:
3.11
Bolt Pattern:
Wide 5
Thread Length:
1.06
Thread Pitch:
5/8" UNF
Bolt Hole Pattern:
5 on 4.5" & 5 on 5"
Garage Sale:
No
Notes
Outer studs are a 10 1/8" bolt pattern.
Wide 5 Wheel Adapter, 5 on 4-1/2 and 5 on 5 InchWide 5 Wheel Adapter, 5 on 4-1/2 and 5 on 5 InchWide 5 Wheel Adapter, 5 on 4-1/2 and 5 on 5 Inch
Wide 5 Wheel Adapter, 5 on 4-1/2 and 5 on 5 Inch

Click image to enlarge

Watch the video below to learn how to correctly measure your wheel bolt pattern.

Details

Reviews

Q & A

What's in the Box

These wide 5 wheel adapters are 3/8" steel with 5/8" UNF studs. Adapts your "early modified" wheels to today's more popular bolt patterns.

Must use spacer with drum brake. The bolt heads on the back side of the adapter do not sit flush, contacting the brake drum. The thickness of the spacer would depend on the specific brake drum being used, but the 1/4" 916-58210 or 3/8" 916-58212 should work for many applications. Both of these spacers would work on the 916-58250.

Item Details

5 on 4.5" (small Ford)
5 on 5" (big Ford)
