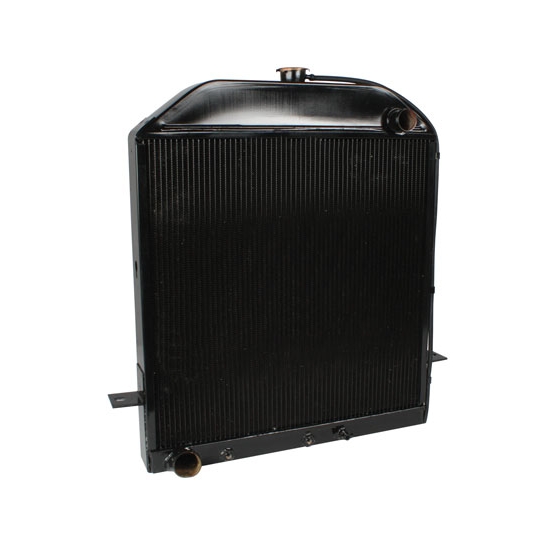

Walker B-Z-497-1 Z-Serie 39 DL, 40-41 Ford Pickup Radiator-Ford Engine

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Copper
Overall Height:
25.38
Overall Width:
21.38
Color:
Black
Transmission Cooler:
No
Tube Style:
Downflow
Sold in Quantity:
Each
Overall Thickness:
3.38
Row Quantity:
4
Finish:
Painted
Inlet Location:
Upper Right
Inlet Size:
1.50
Outlet Location:
Lower Left
Core Height:
20.00
Core Width:
21.00
Core Thickness:
2.75
Filler Neck Height:
.88
Radiator Style:
Single Pass
MFG. Part #:
B-Z-497-1
Garage Sale:
No
Notes
1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain. 2.00" wide mounting feet on both sides.
Walker B-Z-497-1 Z-Serie 39 DL, 40-41 Ford Pickup Radiator-Ford EngineWalker B-Z-497-1 Z-Serie 39 DL, 40-41 Ford Pickup Radiator-Ford EngineWalker B-Z-497-1 Z-Serie 39 DL, 40-41 Ford Pickup Radiator-Ford EngineWalker B-Z-497-1 Z-Serie 39 DL, 40-41 Ford Pickup Radiator-Ford Engine
Walker B-Z-497-1 Z-Serie 39 DL, 40-41 Ford Pickup Radiator-Ford Engine

Click image to enlarge

Speeday Motors Logo
X
Walker B-Z-497-1 Z-Serie 39 DL, 40-41 Ford Pickup Radiator-Ford Engine

Details

Reviews

Q & A

What's in the Box

Walker Z-Series radiators feature a 4-row, high-flow copper core which is ideal for use with Big Blocks, blowers, and high compression engines. Built for a direct fit with heavy gauge steel side brackets and mounting holes pre-stamped. Includes a built-in oil cooler for automatic transmissions.

  • Works with original, reproduction steel, and fiberglass grille shells
  • Copper core w/ 1-piece brass tanks
  • Vertical tubes every 1/4" and 12 fins per inch of height
  • Heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
  • Use a 15-18 lb. radiator cap
  • Brass drain cock
  • Simple bolt-in install
  • Use Walker Fan Shroud Style A

Small Block Ford engines can take advantage of the less expensive and more readily available "Chevy" radiators by using a passenger side inlet water pump (such as our 910-15544) and get additional steering box/fuel pump clearance to boot!

Ford Chassis W/ Ford Engine Application Chart (GIF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.
