Walker Z-Series 1953-56 Ford F100 Radiator w/ A/C Condenser for Ford Engine

SAME DAY SHIPPING! Order within the next 3 hours 34 minutes and receive same day shipping

Specs
Material Type:
Copper
Overall Height:
26.25
Overall Width:
21.13
Color:
Black
Transmission Cooler:
Yes
Tube Style:
Downflow
Sold in Quantity:
Each
Overall Thickness:
5.13
Row Quantity:
4
Finish:
Painted
Inlet Location:
Centered
Inlet Size:
1.50
Outlet Location:
Lower Left
Core Height:
21.00
Core Width:
20.88
Core Thickness:
2.75
Filler Neck Height:
.88
Shroud:
No
Radiator Style:
Single Pass
MFG. Part #:
BZAC-556-1
Garage Sale:
Yes
Notes
1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain. 2.38" wide mounting flanges on both sides. 5/8"-18 and 3/4"-16 inverted flare fittings for A/C.
Walker Z-Series 1953-56 Ford F100 Radiator w/ A/C Condenser for Ford EngineWalker Z-Series 1953-56 Ford F100 Radiator w/ A/C Condenser for Ford EngineWalker Z-Series 1953-56 Ford F100 Radiator w/ A/C Condenser for Ford EngineWalker Z-Series 1953-56 Ford F100 Radiator w/ A/C Condenser for Ford Engine

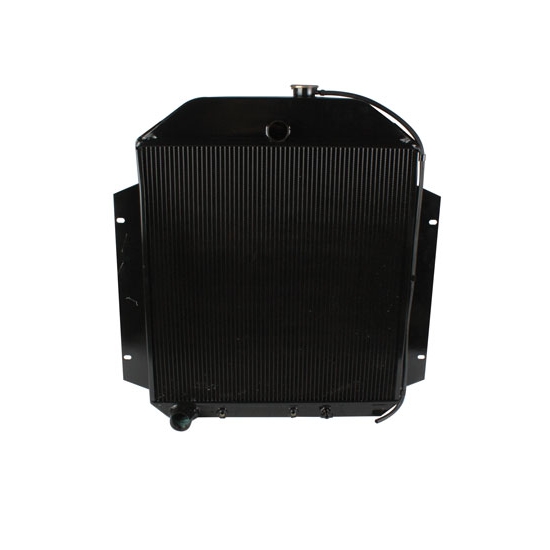

Walker Z-Series 1953-56 Ford F100 Radiator w/ A/C Condenser for Ford Engine

Click image to enlarge

Speeday Motors Logo
X
Walker Z-Series 1953-56 Ford F100 Radiator w/ A/C Condenser for Ford Engine

Details

Reviews

Q & A

What's in the Box

We offer Walker Z-Series radiators for 1942-56 Ford F100 pick-ups with or without air conditioner condensers. These Ford-style radiators have the top neck centered while the lower is on the left.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Item Details

Ford engines with lower neck on left side.
