Walker Z-Ac513-1 Z-Series 1946-48 Chevrolet Radiator w/ A/C Condenser

Free Shipping Free Shipping
Specs
Tube Style:
Downflow
Sold in Quantity:
Each
Inlet Location:
Centered
Material Type:
Copper
Finish:
Painted
Row Quantity:
4
Outlet Location:
Lower Right
Color:
Black
Radiator Style:
Single Pass
MFG. Part #:
Z-AC513-1
Transmission Cooler:
Yes
Shroud:
No
Overall Height:
23.88
Overall Width:
20.25
Overall Thickness:
5.00
Inlet Size:
1.50
Core Height:
19.25
Core Width:
20.00
Core Thickness:
2.75
Filler Neck Height:
.88
Notes
1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain. 1.25" wide mounting flanges on both sides. 5/8"-18 and 3/4"-16 inverted flare fittings for A/C.

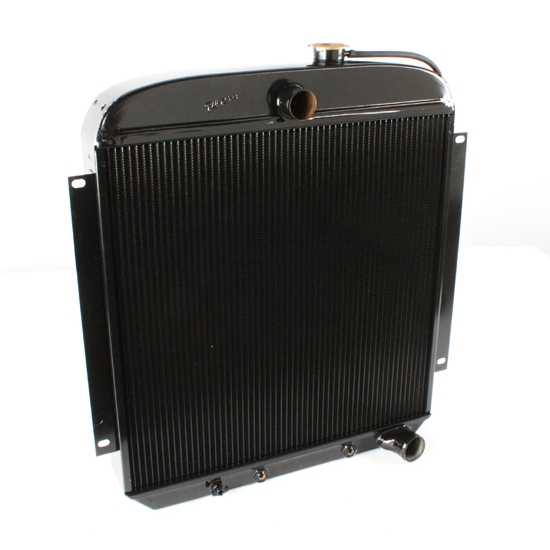

Walker Z-Ac513-1 Z-Series 1946-48 Chevrolet Radiator w/ A/C Condenser
Walker Z-Ac513-1 Z-Series 1946-48 Chevrolet Radiator w/ A/C Condenser
Walker Z-Ac513-1 Z-Series 1946-48 Chevrolet Radiator w/ A/C Condenser
Walker Z-Ac513-1 Z-Series 1946-48 Chevrolet Radiator w/ A/C Condenser

Click image to enlarge

Details

Reviews (0)

Q & A (0)

What's in the Box

Info

Walker Z-Series radiators feature a 4-row, high-flow copper core which is ideal for use with Big Blocks, blowers, and high compression engines. Built for a direct fit with heavy gauge steel side brackets and mounting holes pre-stamped. Includes a built-in oil cooler for automatic transmissions.

  • 4-row copper core w/ brass tanks
  • Vertical tubes every 1/4" and 12 fins per inch of height
  • 12 Ga. steel side brackets w/ pre-drilled holes
  • Use a 15-18 lb. radiator cap
  • Brass drain cock

Chevy Chassis W/ Chevy Engine Application Chart (GIF)

820-Z5131 Dimensions - Back (Link)

820-Z5131 Dimensions - Front (Link)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Item Details

With A/C Condenser
Condenser Fittings: #6 and #8 O-ring design
Condenser Refrigerant: R-12 or R-134a
